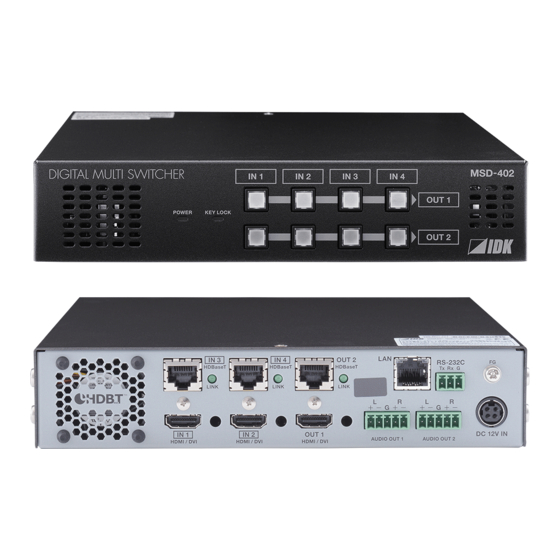

Digital Multi Switcher
MSD-402
<Command Reference Guide>
Ver.1.2.0
● Thank you for choosing our product.
● To ensure the best performance of this product, please read this Command Guide and Users Guide fully
and carefully before using your product and keep this manual beside the product.
IDK Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSD-402 and is the answer not in the manual?

Questions and answers

Related Manuals for IDK MSD-402

Summary of Contents for IDK MSD-402

  • Page 1: Command Reference Guide

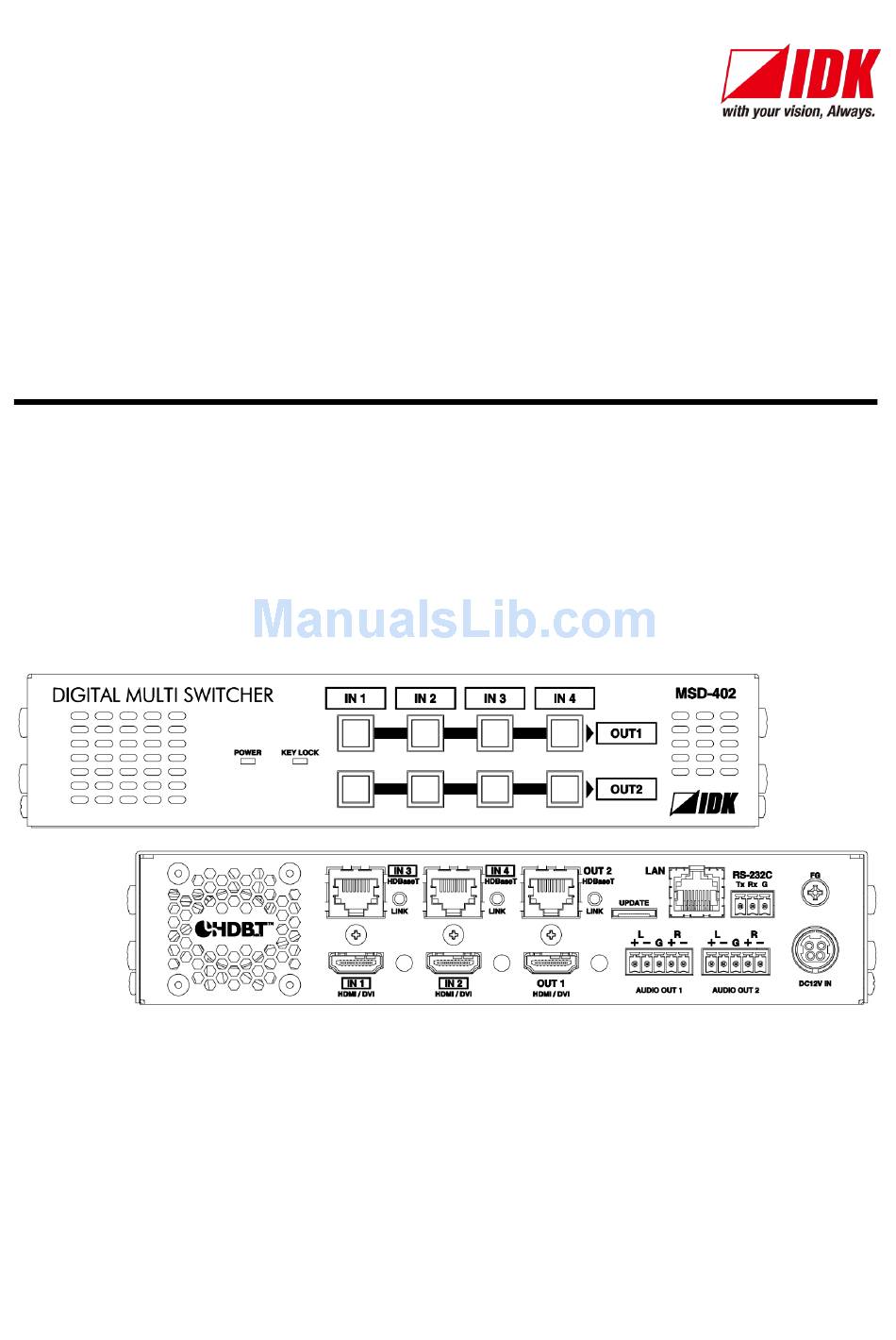

    Digital Multi Switcher MSD-402 <Command Reference Guide> Ver.1.2.0 ● Thank you for choosing our product. ● To ensure the best performance of this product, please read this Command Guide and Users Guide fully and carefully before using your product and keep this manual beside the product.
  • Page 2 MSD-402 Command Guide Trademarks  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.  HDBaseT™ and the HDBaseT Alliance Logo are trademarks of the HDBaseT Alliance.
  • Page 3 ● Some of the contents in this command guide such as product appearance in diagrams, menu operations, communication commands, and so on may differ from your MSD depending on the version. ● This command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idk.co.jp/en/index.html...

  • Page 4: Table Of Contents

    MSD-402 Command Guide Table of Contents About this guide............................ 5 Setup and specification of communication .................... 6 RS-232C communication ......................... 6 2.1.1 Setup RS-232C communication....................6 2.1.2 RS-232C connector ........................8 2.1.3 Specification of RS-232C communication ................. 8 LAN communication ........................9 2.2.1...

  • Page 5: About This Guide

    MSD-402 Command Guide 1 About this guide This guide contains information of communication commands that control the MSD via RS-232C or LAN communication. ■ You can perform the following operations using communication commands ・Switching channels. ・Setting I/O, audio, and EDID.

  • Page 6: Setup And Specification Of Communication

    MSD-402 Command Guide 2 Setup and specification of communication 2.1 RS-232C communication 2.1.1 Setup RS-232C communication (1) Connect the MSD and the control device over an RS-232C cable. If connecting an RS-232C cable to the provided 3-pin terminal block, please assemble the cable as needed.
  • Page 7 MSD-402 Command Guide ■ Connecting control devices (RS-232C) [Note] The MSD does not support communication command control from the RS-232C of an HDC product that is connected to the HDBaseT connector. HDC transmitter HDC receiver Cat6 Tx for HDMI Twisted pair cable...

  • Page 8: Rs-232C Connector

    MSD-402 Command Guide 2.1.2 RS-232C connector Secure a cable to the provided 3-pin terminal block and connect them to the MSD. AWG28 to AWG16 are recommended. The pealing length is up to 0.28 inch/7 mm. If using the 9-pin D-sub connector, short RTS/CTS and DTR/DSR as needed.

  • Page 9: Lan Communication

    MSD-402 Command Guide 2.2 LAN communication 2.2.1 Setup LAN communication (1) Connect the MSD and the control device via a LAN cable. (2) Set up RS-232C communication as follows: ・Set IP address and subnet mask ・TCP pot number: 23, 1100, 6000 to 6999 【Reference: User’s Guide】...
  • Page 10 MSD-402 Command Guide ■ Connecting control devices (LAN) The LAN port of the MSD and LAN port of an HDC product that is connected to the HDBaseT connector are all connected over switching hub in the MSD. Communication command control to the MSD can be performed from all LAN ports of PCs.
  • Page 11 AUDIO OUT 1 AUDIO OUT 2 ANALOG RGB / YPbPr / VIDEO ANALOG RGB / YPbPr / VIDEO HDMI / DVI / ANALOG Twisted pair cable Loop failure Twisted pair cable MSD-402 Switching hub [Fig. 2.9] Loop problem with IDK product...

  • Page 12: Lan Connector

    MSD-402 Command Guide 2.2.2 LAN connector LAN connector pin assignments: It supports Auto MDI/MDI-X, which distinguishes/switches straight and cross cables automatically. Blinks in orange when the send/receive rate is Blinks in green while data is sent/received. 100 Mbps. LAN Connector...

  • Page 13: The Number Of Tcp-Ip Connections

    MSD-402 Command Guide 2.2.4 The number of TCP-IP connections The MSD series can connect up to eight connections (eight ports) simultaneously. If the MSD is controlled from nine or more PCs, they may not be connected to the MSD normally, since the number of connections that can be used is limited.

  • Page 14: Command

    MSD-402 Command Guide 3 Command 3.1 Summary A command consists of “@” (“40” in hexadecimal), 3 one-byte alphabetical characters (upper and lower cases), and parameters (one-byte numbers ). For some commands, several parameters can be specified or no parameter is required. Processing is executed by sending a delimiter at the end of the command.

  • Page 15: Command List

    MSD-402 Command Guide 3.2 Command list ■ Error status Command Function @ERR Error status ■ Input channel setting Command Function @GSW / @SSW Switching channel @GPI / @SPI PinP output @GLI / @SLI HDC-TH200 LINK mode @GCG / @SCG HDC-TH200 CHANGE...
  • Page 16 MSD-402 Command Guide ■ Image quality Command Function @GFL / @SFL Sharpness @GBR / @SBR Input brightness @GCO / @SCO Input contrast @GHU / @SHU @GST / @SST Saturation @GSU / @SSU Black level @IDC Input default color @GOB / @SOB...
  • Page 17 MSD-402 Command Guide ■ Audio setting Command Function @GSL / @SSL Audio output level @SOL Relative value of audio output level @GOL Limit status of audio output level @GAM / @SAM Audio output mute @GSO / @SSO Audio input level...
  • Page 18 MSD-402 Command Guide ■ Bitmap setting Command Function @GBM / @SBM Outputting bitmap image @GBB / @SBB Background color @GBT / @SBT Aspect ratio @GZP / @SZP Display position @GBA / @SBA Bitmap assignment @GPB / @SPB Outputting bitmap at startup...

  • Page 19: Detailed Descriptions Of Each Command

    MSD-402 Command Guide 3.3 Detailed descriptions of each command 3.3.1 Error status @ERR Error status Format Only return value Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format 3 = Currently cannot be used.

  • Page 20: Selecting Input Channel

    MSD-402 Command Guide 3.3.2 Selecting input channel @GSW / @SSW Switching channel Function Getting Setting Format @GSW @SSW, input_1, output_1 (, input_2, output_2･･･) Return value @GSW, video_o1, audio_o1, video_o2, @SSW, input_1, output_1 (, input_2, audio_o2, video_p1, audio_p1, video_p2, output_2･･･) audio_p2...
  • Page 21 MSD-402 Command Guide @GLI / @SLI HDC-TH200 LINK mode Function Getting Setting Format @GLI @SLI, ch_1, link_1 (, ch_2, link_2) Return value @GLI, link_1,link_2 @SLI, ch_1, link_1 (, ch_2, link_2) Parameter ch_1-2：Input channel 0 = All inputs, 3 = IN3, 4 = IN4 link_1-2：LINK mode...
  • Page 22 MSD-402 Command Guide @GCH / @SCH HDC-TH200 input channel remote switching Function Getting Setting Format @GCH @SCH, ch_1, channel_1 (, ch_2, channel_2) Return value @GCH, channel_1, channel_2 @SCH, ch_1, channel_1 (, ch_2, channel_2) Parameter ch_1-2：Input channel 0 = All inputs, 3 = IN3, 4 = IN4 channel_1-2：HDC-TH200 input channel...

  • Page 23: Position, Size, And Masking

    MSD-402 Command Guide 3.3.3 Position, size, and masking @GOT / @SOT Output resolution Function Getting Setting Format @GOT @SOT, ch_1, resolution_1 (, ch_2, resolution_2) Return value @GOT, resolution_1, resolution_2 @SOT, ch_1, resolution_1 (, ch_2, resolution_2) Parameter resolution_1-2: Output resolution 0 = AUTO-A [Default],...
  • Page 24 MSD-402 Command Guide @GTD Actual output resolution Function Getting Format @GTD Return value @GTD, resolution_1, resolution_2 Parameter resolution_1-2: Actual output resolution 1 = VGA (640x480), 2 = SVGA (800x600), 3 = XGA (1024x768), 4 = WXGA (1280x768), 5 = WXGA (1280x800),...
  • Page 25 MSD-402 Command Guide @GAP / @SAP Aspect ratio Function Getting Setting Format @GAP @SAP, ch_1, aspect_1 (, ch_2, aspect_2･･･) Return value @GAP, aspect_1, aspect_2, aspect_3, @SAP, ch_1, aspect_1 (, ch_2, aspect_4 aspect_2･･･) Parameter aspect_1-4: Aspect ratio 0 = AUTO-1 [Default],...
  • Page 26 MSD-402 Command Guide @GOV / @SOV Overscan Function Getting Setting Format @GOV @SOV, ch_1, overscan_1 (, ch_2, overscan_2･･･) Return value @GOV, overscan_1, overscan_2, @SOV, ch_1, overscan_1 (, ch_2, overscan_3, overscan_4 overscan_2･･･) Parameter overscan_1-4: Overscan 100 % to 115 % [Default]: SDTV:105 %, HDTV or PC: 100%...
  • Page 27 MSD-402 Command Guide @GNS / @SNS Input size Function Getting Setting Format @GNS @SNS, ch_1, h_size_1, v_size_1 (, ch_2, h_size_2, v_size_2･･･) Return value @GNS, h_size_1, v_size_1, h_size_2, @SNS, ch_1, h_size_1, v_size_1 (, ch_2, v_size_2, h_size_3, v_size_3, h_size_4, h_size_2, v_size_2･･･) v_size_4...
  • Page 28 MSD-402 Command Guide @GNM / @SNM Input masking Function Getting Setting Format @GNM, ch @SNM, ch, left, right, top, bottom Return value @GNM, ch, left, right, top, bottom @SNM, ch, left, right, top, bottom Parameter ch: Input channel 1 = IN1 to 4 = IN4...
  • Page 29 MSD-402 Command Guide @GOP / @SOP Output position Function Getting Setting Format @GOP @SOP, ch_1, h_position_1, v_position_1 (, ch_2, h_position_2, v_position_2) Return value @GOP, h_position_o1, v_position_o1, @SOP, ch_1, h_position_1, v_position_1 h_position_o2, v_position_o2, (, ch_2, h_position_2, v_position_2･･･) h_position_p1, v_position_p1, h_position_p2, v_position_p2...
  • Page 30 MSD-402 Command Guide @GOS / @SOS Output size Function Getting Setting Format @GOS @SOS, ch_1, h_size_1, v_size_1 (, ch_2, h_size_2, v_size_2) Return value @GOS, h_size_o1, v_size_o1, h_size_o2, @SOS, ch_1, h_size_1, v_size_1 (, ch_2, v_size_o2, h_size_p1, v_size_p1, h_size_2, v_size_2) h_size_p2, v_size_p2...
  • Page 31 MSD-402 Command Guide @GOM / @SOM Output masking Function Getting Setting Format @GOM, ch @SOM, ch, left, right, top, bottom Return value @GOM, ch, left, right, top, bottom @SOM, ch, left, right, top, bottom Parameter ch: Output channel 1 = OUT1, 2 = OUT2, 3 = PinP1, 4 = PinP2...
  • Page 32 MSD-402 Command Guide @GBC / @SBC Background color Function Getting Setting Format @GBC, ch @SBC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2) Return value @GBC, ch, red, green, blue @SBC, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2)
  • Page 33 MSD-402 Command Guide @GTP / @STP Test pattern Function Getting Setting Format @GTP @STP, ch_1, pattern_1, scroll_1 (,ch_2, pattern_2, scroll_2) Return value @GTP, pattern_1, scroll_1, pattern_2, @STP, ch_1, pattern_1, scroll_1 (, ch_2, scroll_2 pattern_2, scroll_2) Parameter pattern_1-2: Test pattern 0 = OFF [Default],...

  • Page 34: Image Quality

    MSD-402 Command Guide 3.3.4 Image quality @GFL / @SFL Sharpness Function Getting Setting Format @GFL @SFL, ch_1, sharp_1 (, ch_2, sharp_2･･･) Return value @GFL, sharp_1, sharp_2, sharp_3, @SFL, ch_1, sharp_1 (, ch_2, sharp_4 sharp_2･･･) Parameter sharp_1-4: Sharpness -5 to +15 [Default]: 0...
  • Page 35 MSD-402 Command Guide @GCO / @SCO Input contrast Function Getting Setting Format @GCO, ch @SCO, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2･･･) Return value @GCO, ch, red, green, blue @SCO, ch_1, red_1, green_1, blue_1 (, ch_2, red_2, green_2, blue_2･･･)
  • Page 36 MSD-402 Command Guide @GST / @SST Saturation Function Getting Setting Format @GST @SST, ch_1, saturation_1 (, ch_2, saturation_2･･･) Return value @GST, saturation_1, saturation_2, @SST, ch_1, saturation_1 (, ch_2, saturation_3, saturation_4 saturation_2･･･) Parameter saturation_1-4: Saturation 0 to 200 [Default]: 100 ch_1-4: Input channel...
  • Page 37 MSD-402 Command Guide @IDC Input default color Function Setting Format @IDC, ch_1 (, ch_2･･･) Return value @IDC, ch_1 (, ch_2･･･) Parameter ch_1-4:input channel 0 = All inputs, 1 = IN1 to 4 = IN4 Example @IDC,1 Initialize the following settings of IN1: @GFL / @SFL Sharpness (P.34)
  • Page 38 MSD-402 Command Guide @GOB / @SOB Output brightness Function Getting Setting Format @GOB @SOB, ch_1, bright_1 (, ch_2, bright_2) Return value @GOB, bright_o1, bright_o2, bright_p1, @SOB, ch_1, bright_1 (, ch_2, bright_2) bright_p2 Parameter bright_o1-o2: Output brightness of OUT bright_p1-p2: Output brightness of PinP...
  • Page 39 MSD-402 Command Guide @GGM / @SGM Gamma Function Getting Setting Format @GGM @SGM, ch_1, gamma_1 (, ch_2, gamma_2･･･) Return value @GGM, gamma_o1, gamma_o2, @SGM, ch_1, gamma_1 (, ch_2, gamma_p1, gamma_p2 gamma_2･･･) Parameter gamma_o1-o2: Gamma of OUT gamma_p1-p2: Gamma of PinP gamma_1-4: Gamma 1 = 1 x 0.1 (0.1) to 30 = 30 x 0.1 (3.0)

  • Page 40: Input Settings

    MSD-402 Command Guide 3.3.5 Input settings @GDT / @SDT No-signal-input monitoring Function Getting Setting Format @GDT @SDT, ch_1, time_1 (, ch_2, time_2･･･) Return value @GDT, time_1, time_2, time_3, @SDT, ch_1, time_1 (, ch_2, time_2･･･) time_4 Parameter time_1-4: No-signal-input monitoring 0 = OFF, 2000 = 2 sec. to 15000 = 15 sec. [Default] 10000 = 10 sec.
  • Page 41 MSD-402 Command Guide @GIQ / @SIQ Input equalizer Function Getting Setting Format @GIQ @SIQ, ch_1, level_1 (, ch_2, level_2) Return value @GIQ, level_1, level_2 @SIQ, ch_1, level_1 (, ch_2, level_2) Parameter level_1-2: Input equalizer 0 = OFF, 1 = ON [Default]...
  • Page 42 MSD-402 Command Guide @GFX / @SFX Setting fixing for each input signal Function Getting Setting Format @GFX, ch @SFX, ch, mode (, aspect, noused, audio) Return value @GFX, ch, mode (, aspect, noused, @SFX, ch, mode (, aspect, noused, audio)

  • Page 43: Input Timing Setting

    MSD-402 Command Guide 3.3.6 Input timing setting @GHT The total number of horizontal dots Function Getting Format @GHT Return value @GHT, h_total_1, h_total_2, h_total_3, h_total_4 Parameter h_total_1-4: The total number of horizontal dots 400 to 4125 (sampling block should be 13 MHz to 162 MHz)
  • Page 44 MSD-402 Command Guide @GHD / @SHD Horizontal display period Function Getting Setting Format @GHD @SHD, ch, h_disp Return value @GHD, h_disp_1, h_disp_2, h_disp_3, @SHD, ch, h_disp h_disp_4 Parameter h_disp_1-4 / h_disp: Horizontal display period 64 to 2900 (should be [the total number of horizontal dots – 64] or less)
  • Page 45 MSD-402 Command Guide @GVD / @SVD Vertical display period Function Getting Setting Format @GVD @SVD, ch, v_disp Return value @GVD, v_disp_1, v_disp_2, v_disp_3, @SVD, ch, v_disp v_disp_4 Parameter v_disp_1-4 / v_disp: Vertical display period 10 to 2048 (should be [the total number of vertical lines – 10] or less)

  • Page 46: Output Setting

    MSD-402 Command Guide 3.3.7 Output setting @GDM / @SDM Output mode Function Getting Setting Format @GDM @SDM, ch_1, mode_1 (, ch_2, mode_2) Return value @GDM, mode_1, mode_2 @SDM, ch_1, mode_1 (, ch_2, mode_2) Parameter mode_1-2: Output mode 0 = DVI MODE, 1 = HDMI RGB MODE, 2 = HDMI YCbCr4:2:2 MODE,...
  • Page 47 MSD-402 Command Guide @GBO / @SBO Output video when no video signal is input Function Getting Setting Format @GBO @SBO, ch_1, video_1 (, ch_2, video_2･･･) Return value @GBO, video_o1, video_o2, video_p1, @SBO, ch_1, video_1 (, ch_2, video_p2 video_2･･･) Parameter video_o1-o2: Output video when no video signal is input of OUT...
  • Page 48 MSD-402 Command Guide @GFF / @SFF Video switching effect Function Getting Setting Format @GFF @SFF, ch_1, switching_1 (, ch_2, switching_2･･･) Return value @GFF, switching_o1, switching_o2, @SFF, ch_1, switching_1 (, ch_2, switching_p1, switching_p2 switching_2･･･) Parameter switching_o1-o2 : Video switching effect of OUT...
  • Page 49 MSD-402 Command Guide @GFT / @SFT Video switching time Function Getting Setting Format @GFT @SFT, ch_1, time_1 (, ch_2, time_2･･･) Return value @GFT, time_o1, time_o2, time_p1, @SFT, ch_1, time_1 (, ch_2, time_2･･･) time_p2 Parameter time_o1-o2 : Video switching time of OUT...
  • Page 50 MSD-402 Command Guide @GEN / @SEN HDCP output Function Getting Setting Format @GEN @SEN, ch_1, hdcp_1 (, ch_2, hdcp_2) Return value @GEN, hdcp_1, hdcp_2 @SEN, ch_1, hdcp_1 (, ch_2, hdcp_2) Parameter hdcp_1-2: HDCP output 0 = HDCP is output only if input signal is with HDCP.
  • Page 51 MSD-402 Command Guide @GDC / @SDC Deep Color Function Getting Setting Format @GDC @SDC, ch_1, color_1 (, ch_2, color_2) Return value @GDC, color_1, color_2 @SDC, ch_1, color_1 (, ch_2, color_2) Parameter color_1-2: Deep Color 0 = 24-BIT COLOR [Default], 1 = 30-BIT COLOR...
  • Page 52 MSD-402 Command Guide @HAU HDCP re-authentication Function Setting Format @HAU, ch_1 (, ch_2) Return value @HAU, ch_1 (, ch_2) Parameter ch_1-2: Output channel 0 = All outputs (OUT1, OUT2), 1 = OUT1, 2 = OUT2 Example @HAU,1 Setting sink device HDCP of OUT1 to be...
  • Page 53 MSD-402 Command Guide @GOF / @SOF Priority of input channel automatic switching (Input video signal ON→OFF) Function Getting Setting Format @GOF, out @SOF, out_1, in1_1, in2_1, in3_1, in4_1 (, out_2, in1_2, in2_2, in3_2, in4_2･･･) Return value @GOF, out, in1, in2, in3, in4 @SOF, out_1, in1_1, in2_1, in3_1, in4_1 (, out_2, in1_2, in2_2, in3_2, in4_2･･･)

  • Page 54: Audio Setting

    MSD-402 Command Guide 3.3.8 Audio Setting @GSL / @SSL Audio output level Function Getting Setting Format @GSL @SSL, ch_1, level_1 (, ch_2, level_2) Return value @GSL, level_1, level_2 @SSL, ch_1, level_1 (, ch_2, level_2) Parameter level_1-2: Audio output level -60 to +10 [Default] ±0...
  • Page 55 MSD-402 Command Guide @GAM / @SAM Audio output mute Function Getting Setting Format @GAM @SAM, ch_1, mute_1 (, ch_2, mute_2) Return value @GAM, mute_1, mute_2 @SAM, ch_1, mute_1 (, ch_2, mute_2) Parameter mute_1-2: Audio output mute 0 = Not muted [Default], 1 = Muted...
  • Page 56 MSD-402 Command Guide @SIL Relative value of audio input level Function Setting Format @SIL, ch_1, updown_1 (, ch_2, updown_2･･･) Return value @SIL, ch_1, updown_1 (, ch_2, updown_2･･･) Parameter ch_1-4: Input channel 0 = All inputs, 1 = IN1 to 4 = IN4...
  • Page 57 MSD-402 Command Guide @GMD / @SMD Multi channel audio output Function Getting Setting Format @GMD @SMD, ch_1, out_1 (, ch_2, out_2) Return value @GMD, out_1, out_2 @SMD, ch_1, out_1 (, ch_2, out_2) Parameter out_1-2: Multi channel audio output 0 = CH1 / CH2 STEREO,...

  • Page 58: Edid Setting

    MSD-402 Command Guide 3.3.9 EDID Setting @GED / @SED EDID data Function Getting Setting Format @GED @SED, ch_1, edid_1 (, ch_2, edid_2･･･) Return value @GED, edid_1, edid_2, edid_3, edid_4 @SED, ch_1, edid_1 (, ch_2, edid_2･･･) Parameter edid_1-4: EDID data 0 = Built-in EDID [Default], 1 = OUT1 MONITOR,...
  • Page 59 MSD-402 Command Guide @GVF / @SVF Input resolution for PC Function Getting Setting Format @GVF @SVF, ch_1, resolution_1 (, ch_2, resolution_2･･･) Return value @GVF, resolution_1, resolution_2, @SVF, ch_1, resolution_1 (, ch_2, resolution_3, resolution_4 resolution_2･･･) Parameter resolution_1-4: Input resolution for PC...
  • Page 60 MSD-402 Command Guide @GDI / @SDI Deep Color input Function Getting Setting Format @GDI @SDI, ch_1, color_1 (, ch_2, color_2･･･) Return value @GDI, color_1, color_2, color_3, color_4 @SDI, ch_1, color_1 (, ch_2, color_2･･･) Parameter color_1-4: Deep Color input 0 = 24-BIT COLOR [Default], 1 = 30-BIT COLOR...
  • Page 61 MSD-402 Command Guide @GAF / @SAF Audio format Function Getting Setting Format @GAF, ch @SAF, ch, format_1, frequency_1 (, format_2, frequency_2･･･) Return value @GAF, ch, format_1, frequency_1 @SAF, ch, format_1, frequency_1 (, format_2, frequency_2･･･) (, format_2, frequency_2･･･) Parameter ch: Input channel 0 = All inputs, 1 = IN1 to 4 = IN4 For “All inputs”, only setting commands can be specified.
  • Page 62 MSD-402 Command Guide @GSP / SSP The number of speakers Function Getting Setting Format @GSP, ch @SSP, ch, number (, speaker_1, speaker_2･･･) Return value @GSP, ch, number, speaker_1 @SSP, ch, number (, speaker_1, (, speaker_2･･･) speaker_2･･･) Parameter ch: Input channel 0 = All inputs, 1 = IN1 to 4 = IN4 For “All inputs”, only setting commands can be specified.
  • Page 63 MSD-402 Command Guide @RME Copying EDID Function Saving Format @RME, out, number (, name) Return value @RME, out, number (, name) Parameter out: Connector to be loaded 1 = OUT1, 2 = OUT2 number: Destination COPY DATA number 1 to 8 name: Name of COPY DATA Up to 10 characters using 10 one-byte characters..

  • Page 64: Communication Setting

    MSD-402 Command Guide 3.3.10 Communication setting @GCT / @SCT RS-232C communication Function Getting Setting Format @GCT @SCT, port, setting Return value @GCT, setting @SCT, port, setting Parameter setting: Communication setting ・Baud rate (4800, 9600, 19200, 38400 [bps] [Default] 9600) ・Data length (8, 7 [bit] [Default] 8) ・Parity check (NONE, EVEN, ODD [Default]: NONE)
  • Page 65 MSD-402 Command Guide @GIP / @SIP IP address Function Getting Setting Format @GIP @SIP, unit_1, unit_2, unit_3, unit_4 Return value @GIP, unit_1, unit_2, unit_3, unit_4 @SIP, unit_1, unit_2, unit_3, unit_4 Parameter unit_1: Upper bit of the IP address to unit_4: lower bit of the IP address 0 to 255 = 8 bit (Decimal notation) [Default] 192.168.1.199...
  • Page 66 MSD-402 Command Guide @GLP / @SLP TCP port number Function Getting Setting Format @GLP @SLP, connection_1, port_1 (, connection_2, port_2･･･) Return value @GLP, port_1, port_2, port_3, port_4, @SLP, connection_1, port_1 (, port_5, port_6, port_7, port_8 connection_2, port_2･･･) Parameter port_1-8: TCP port number...

  • Page 67: Preset Memory

    MSD-402 Command Guide 3.3.11 Preset memory @RCM Loading cross point memory Function Setting Format @RCM, memory Return value @RCM, memory Parameter memory: cross point memory 1 to 9 Example @RCM,1 Loading video and audio channels of cross point memory 1.
  • Page 68 MSD-402 Command Guide @GCM / @ECM Editing cross point memory Function Getting Setting Format @GCM, memory @ECM, memory, video_o1, audio_o1, video_o2, audio_o2, video_p1, audio_p1, video_p2, audio_p2, on_p1, on_p2 Return value @GCM, memory, video_o1, audio_o1, @ECM, memory, video_o1, audio_o1, video_o2, audio_o2, video_p1, audio_p1,...
  • Page 69 MSD-402 Command Guide @RPM / @SPM Loading/saving all settings Function Setting Saving Format @RPM, preset @SPM, preset (, name) Return value @RPM, preset @SPM, preset (, name) Parameter preset: Preset memory 1 to 8 name: Memory name Up to 10 one-byte characters using 20 to 7D from ASCII codes.
  • Page 70 MSD-402 Command Guide @GMU / @SMU Startup settings Function Getting Setting Format @GMU @SMU, state Return value @GMU, state @SMU, state Parameter state: Startup settings 1 to 9 = Cross point memory 1 to 9, 10 = Channel OFF, 11 = Last channel [Default],...

  • Page 71: Bitmap Setting

    MSD-402 Command Guide 3.3.12 Bitmap setting @GBM / @SBM Outputting bitmap image Function Getting Setting Format @GBM @SBM, ch_1, out_1 (, ch_2, out_2･･･) Return value @GBM, out_1, out_2 @SBM, ch_1, out_1 (, ch_2, out_2･･･) Parameter out_1-4: Outputting bitmap image 0 = OFF [Default],...
  • Page 72 MSD-402 Command Guide @GBB / @SBB Background color Function Getting Setting Format @GBB, ch @SBB, ch_1, bitmap_1, red_1, green_1, blue_1 (, ch_2, bitmap_2, red_2, green_2, blue_2･･･) Return value @GBB, ch, red_1, green_1, blue_1 @SBB, ch_1, bitmap_1, red_1, green_1, (, red_2, green_2, blue_2･･･) blue_1 (, ch_2, bitmap_2, red_2, green_2, blue_2･･･)
  • Page 73 MSD-402 Command Guide @GBT / @SBT Aspect ratio Function Getting Setting Format @GBT, ch @SBT, ch_1, bitmap_1, aspect_1 (, ch_2, bitmap_2, aspect_2･･･) Return value @GBT, ch, aspect_1 (, aspect_2･･･) @SBT, ch_1, bitmap_1, aspect_1 (, ch_2, bitmap_2, aspect_2･･･) Parameter ch: Output channel...
  • Page 74 MSD-402 Command Guide @GZP / @SZP Display position Function Getting Setting Format @GZP, ch @SZP, ch_1, bitmap_1, position_1 (, ch_2, bitmap_2, position_2･･･) Return value @GZP, ch, position_1 (, position_2･･･) @SZP, ch_1, bitmap_1, position_1 (, ch_2, bitmap_2, position_2･･･) Parameter ch: Output channel...
  • Page 75 MSD-402 Command Guide @GBA / @SBA Bitmap assignment Function Getting Setting Format @GBA, ch @SBA, ch_1, input_1, bitmap_1 (, ch_2, input_2, bitmap_2･･･) Return value @GBA, ch, bitmap_1, bitmap_2, @SBA, ch_1, input_1, bitmap_1 (, ch_2, bitmap_3, bitmap_4 input_2, bitmap_2･･･) Parameter ch: Output channel...
  • Page 76 MSD-402 Command Guide @GBD / @SBD Dividing bitmap memory Function Getting Setting Format @GBD @SBD, num, mode (, size_1, size_2･･･) Return value @GBD, num, block_1 (, block_2･･･) @SBD, num, mode, block_1 (, block_2･･･) Parameter num: The number of divides 1 to 4 [Default] 1...
  • Page 77 MSD-402 Command Guide @GFZ / @SFZ Freeze Function Getting Setting Format @GFZ @SFZ, ch_1, freeze_1 (, ch_2, freeze_2･･･) Return value @GFZ, freeze_1, freeze_2, freeze_3, @SFZ, ch_1, freeze_1 (, ch_2, freeze_4 freeze_2･･･) Parameter freeze_1-4: Setting freeze 0 = OFF [Default], 1 = ON...

  • Page 78: Other Setting

    MSD-402 Command Guide 3.3.13 Other setting @GLS / @SLS Key lock Function Getting Setting Format @GLS @SLS, lock Return value @GLS, lock @SLS, lock Parameter l lock: Key lock 0 = Releasing lock [Default], 1 = Locking, 2 = Reversing the setting...

  • Page 79: Displaying Status

    MSD-402 Command Guide 3.3.14 Displaying status @GSS Input and output status Function Getting Format @GSS, channel, mode Return value @GSS, channel, mode, status_1 (, status_2, status_3･･･) Parameter channel: I/O channel 1 = IN1, 2 = IN2, 3 = IN3, 4 = IN4,...
  • Page 80 MSD-402 Command Guide @GSS Input and output status Parameter *3 Format of audio input signals Reply example Format of audio input signal Linear PCM signal is input, and the sampling frequency LINEAR PCM 48kHz is replied. Multi channel linear PCM signal is input.
  • Page 81 MSD-402 Command Guide @GSS Input and output status Parameter *6 Error codes are replied in the following order: HDMI output connector / video output to HDBaseT output connector, HDMI output connector / audio output to HDBaseT output connector, audio output to analog audio output connector.
  • Page 82 MSD-402 Command Guide @GSS Input and output status Example @GSS,1,0 Getting IN1 all statuses. ・Type of input signal: 30-BIT COLOR @GSS,1,0,H30,1080P 60Hz, LINEAR PCM 48kHz, HDCP ON HDMI signal ・Video input signal: 1080P 60Hz ・Audio input signal: LINEAR PCM 48kHz ・HDCP:ON...
  • Page 83 4 = Audio support status and sampling frequency, bit length, the number of channels, and support status of compressed audio * status_1 to status_4: Status Monitor name Reply example Monitor name A sink device named “MSD-402” is connected. MSD-402 UNCONNECTED No sink device is connected. Resolution and dot clock Reply example...
  • Page 84 MSD-402 Command Guide @GES Monitor’s EDID information Parameter Audio support status and sampling frequency, bit length, the number of channels, and support status of compressed audio Reply Input signal type AUDIO NOT A sink device that does not support audio signal is SUPPORT connected.
  • Page 85 MSD-402 Command Guide MSD-402 User’s guide (Command Guide) Ver.1.2.0 Revised on: 20 June 2017 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http: //www.idk.co.jp/en/index.html IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: info@idkav.com URL: http: //www.idkav.com...
