IDK MSD-501 Command Reference Manual
  1. Manuals
  2. Brands
  3. IDK Manuals
  4. Switch
  5. MSD-501
  6. Command reference manual

IDK MSD-501 Command Reference Manual

Digital multi switcher
Hide thumbs Also See for MSD-501:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

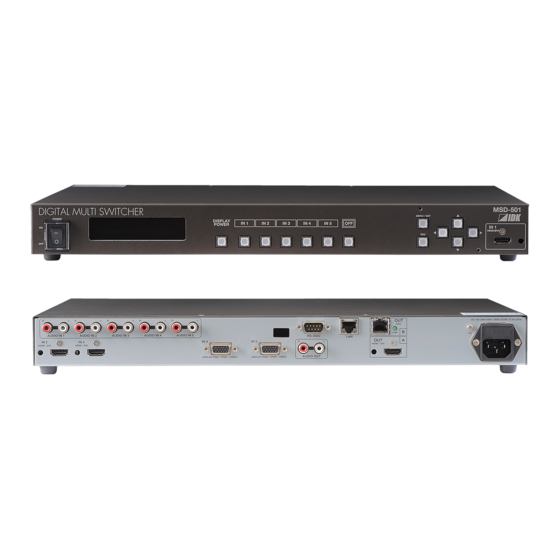

DIGITAL MULTI SWITCHER
POWER
ON
OFF
DIGITAL MULTI SWITCHER
POWER
ON
OFF
● Thank you for choosing our product.
● To ensure the best performance of this product, please read this Command Guide and Users Guide fully
and carefully before using your product and keep this manual beside the product.
DISPLAY
IN 1
IN 2
IN 3
IN 4
POWER
DISPLAY
IN 1
IN 2
IN 3
IN 4
POWER
1
2
IDK Corporation
Presentation switcher
MSD-501/502
<Command Reference Guide>
MENU / SET
IN 5
OFF
ESC
IN 5
OFF
MENU / SET
OUT 1
ESC
OUT 2
Ver.1.0.0
MSD-501
IN 1
HDMI/DVI
MSD-502
IN 1
HDMI/DVI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSD-501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IDK MSD-501

Summary of Contents for IDK MSD-501

  • Page 1: Command Reference Guide

    Presentation switcher MSD-501/502 <Command Reference Guide> Ver.1.0.0 MSD-501 DIGITAL MULTI SWITCHER MENU / SET POWER DISPLAY IN 1 IN 2 IN 3 IN 4 IN 5 POWER IN 1 HDMI/DVI MSD-502 DISPLAY DIGITAL MULTI SWITCHER IN 1 IN 2 IN 3...
  • Page 2 MSD-501/502 Command Guide Trademarks ● The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. ● PJLink is a trademark in JAPAN, the United States, and other countries/regions.
  • Page 3 ● Some of the contents in this command guide such as appearance diagrams, menu operations, communication commands, and so on may differ from your MSD depending on the version. ● This command guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idk.co.jp/en/index.html...

  • Page 4: Table Of Contents

    MSD-501/502 Command Guide Table of Contents About this document ..........................5 Setup and specification of communication ....................6 RS-232C communication ........................6 2.1.1 Setting up RS-232C communication ..................... 6 2.1.2 RS-232C connector ........................7 2.1.3 Specification of RS-232C communication ..................7 LAN communication ..........................

  • Page 5: About This Document

    MSD-501/502 Command Guide 1 About this guide This guide contains information of communication commands that control the MSD via RS-232C or LAN communication. ■ You can perform the following operations using communication commands ・Switching channels. ・Setting I/O, audio, and EDID.

  • Page 6: Setup And Specification Of Communication

    MSD-501/502 Command Guide 2 Setup and specification of communication 2.1 RS-232C communication 2.1.1 Setup RS-232C communication (1) Connect the MSD and the control device via an RS-232C cable. (2) Set the RS-232C communication as follows: ・RS-232C communication: baud rate, data bit length, parity check, and stop bit ・Operation mode of RS-232C communication: “RECEIVER”...

  • Page 7: Rs-232C Connector

    MSD-501/502 Command Guide 2.1.2 RS-232C connector RS-232C pin assignments: Control Unit RS-232C Signal Pin# Signal Cross connector 　 NC 　NC （Not Connected） Cable 　 RD 　RD （Received data） 　 TD 　TD （Transmitted data） 　 NC 　NC （Not Connected） 　 GND 　GND...

  • Page 8: Lan Communication

    MSD-501/502 Command Guide 2.2 LAN communication 2.2.1 Setup LAN communication (1) Connect the MSD and the control device via a LAN cable. (2) Set up RS-232C communication as follows: ・Set IP address and subnet mask ・Operation mode of LAN communication: “RECEIVER”...

  • Page 9: Lan Connector

    MSD-501/502 Command Guide 2.2.2 LAN connector LAN connector pin assignments: It supports Auto MDI/MDI-X, which distinguishes/switches straight and cross cables automatically. Blinks in orange when the send/receive rate is Blinks in green while data is sent/received. 100 Mbps. LAN Connector...

  • Page 10: The Number Of Tcp-Ip Connections

    MSD-501/502 Command Guide 2.2.4 The number of TCP-IP connections The MSD series can connect up to eight connections (eight ports) simultaneously. If the MSD is controlled from nine or more PCs, they may not be connected to the MSD normally, since the number of connections that can be used is limited.

  • Page 11: Command

    MSD-501/502 Command Guide 3 Command 3.1 Summary A command consists of “@” (“40” in hexadecimal), 3 one-byte alphabetical characters (upper and lower cases), and parameters (one-byte numbers ). For some commands, several parameters can be specified or no parameter is required. Processing is executed by sending a delimiter at the end of the command.

  • Page 12: Command List

    MSD-501/502 Command Guide 3.2 Command list ■ Error status Command Function @ERR Error status ■ Power switch Command Function @GDS/@SDS Sink device power switch ■ Input channels Command Function @GSW / @SSW Switching video and audio channel simultaneously @GSV / @SSV...
  • Page 13 MSD-501/502 Command Guide ■ Image quality Command Function @GFL / @SFL Sharpness @GBR / @SBR Input brightness @GCO / @SCO Input contrast @GHU / @SHU @GST / @SST Saturation @GSU / @SSU Black level @IDC Input default color @GOB / @SOB...
  • Page 14 MSD-501/502 Command Guide ■ Output settings Command Function @GEQ / @SEQ Output equalizer @GDM / @SDM Output mode @GUY / @SUY Synchronous signal output when no video signals are input @GBO / @SBO Output video @GFF / @SFF Video switching effect...
  • Page 15 MSD-501/502 Command Guide ■ EDID Command Function @GED / @SED EDID data @GVF / @SVF Input resolution for PC @GHF / @SHF Input resolution for AV devices @GDI / @SDI Deep Color input @GAF / @SAF Audio format @GSP / @SSP...
  • Page 16 MSD-501/502 Command Guide ■ Preset memory Command Function @RCM Loading cross point memory @SCM / @SEM Saving channels to cross point memory @GCM / @ECM Editing cross point memory @RCV Loading cross point memory (setting video channel) @SCV / @SEV...

  • Page 17: Detailed Descriptions Of Each Command

    MSD-501/502 Command Guide 3.3 Detailed descriptions of each command 3.3.1 Error status @ERR Error status Format Only return value Return value @ERR, error Parameter error: Error status 1 = Erroneous parameter format or value 2 = Undefined command or wrong format 3 = Currently cannot be used.

  • Page 18: Power Switch

    MSD-501/502 Command Guide 3.3.2 Power switch @GDS/@SDS Sink device power switch Function Acquisition Setting Format @GDS @SDS, ch_1, onoff_1 (, ch_2, onoff_2) Return value @GDS, onoff_1 (, onoff_2) @SDS, ch_1, onoff_1 (, ch_2, onoff_2) Parameter onoff_1-2: Sink device power switch...

  • Page 19: Input Channels
