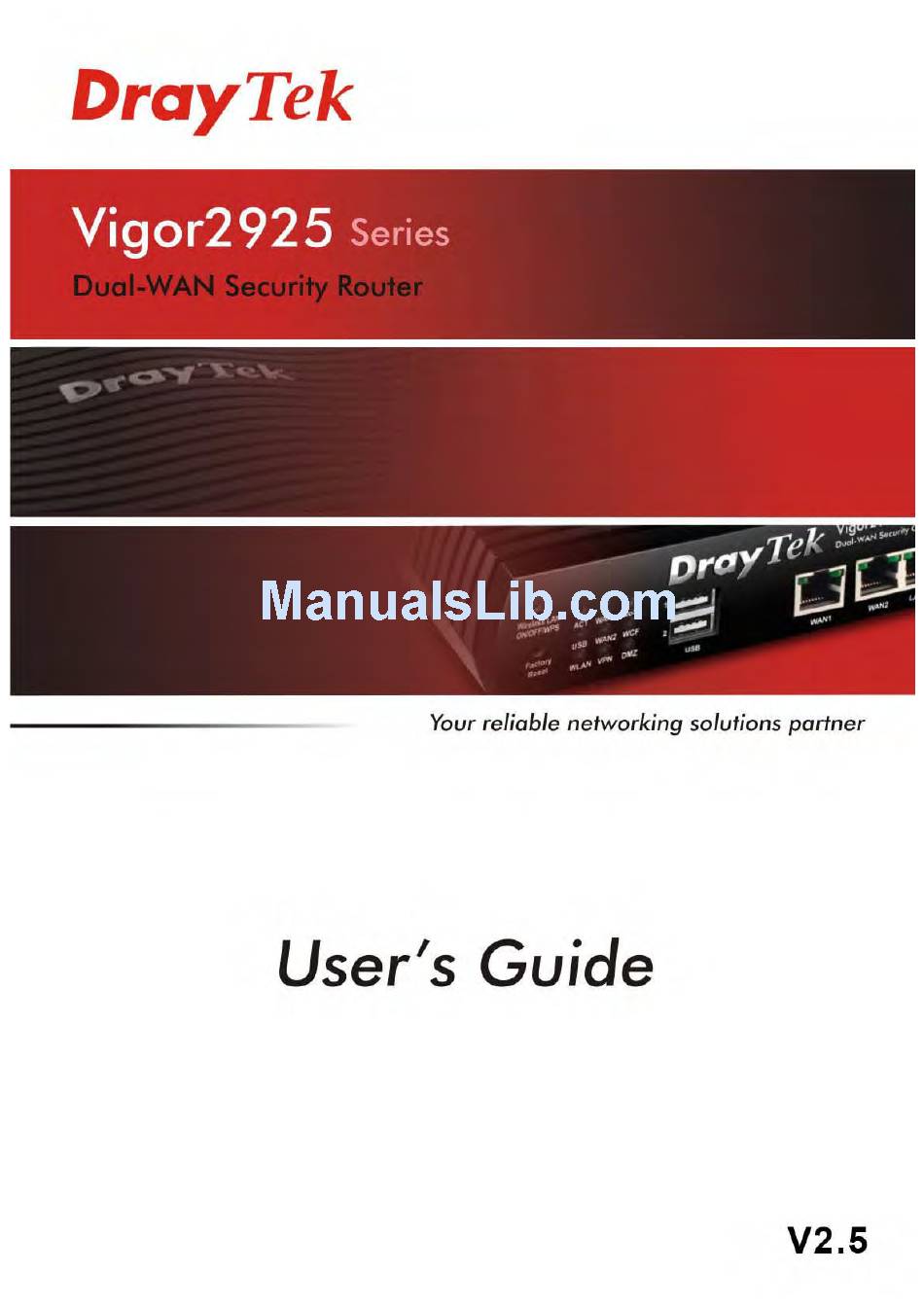

Draytek Vigor 2925 Series User Manual

Draytek Vigor 2925 Series User Manual

Vigor 2925 series dual-wan security router
Hide thumbs Also See for Vigor 2925 Series:
Table of Contents

Advertisement

Advertisement

Table of Contents
loading

Summary of Contents for Draytek Vigor 2925 Series

  • Page 2 Vigor2925 Series User’s Guide...
  • Page 3 Vigor2925 Series Dual-WAN Security Router User’s Guide Version: 2.5 Firmware Version: V3.7.4_RC3 (For future update, please visit DrayTek web site) Date: February 12, 2014 Vigor2925 Series User’s Guide...
  • Page 4: Copyright Information

    Web registration is preferred. You can register your Vigor router via Owner http://www.dayTek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be regularly Updates upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
  • Page 5: European Community Declarations

    Product: Vigor2925 Series Router DrayTek Corp. declares that Vigor2925 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 6 Vigor2925 Series User’s Guide...
  • Page 7: Table Of Contents

    Introduction....................1 1.1 Web Configuration Buttons Explanation ................. 2 1.2 LED Indicators and Connectors ....................3 1.2.1 For Vigor2925 ........................3 1.2.2 For Vigor2925n ......................... 5 1.1.3 For Vigor2925n-plus ......................7 1.1.4 For Vigor2925Vn-plus....................... 9 1.3 Hardware Installation ......................11 1.4 Printer Installation ......................... 12 1.5 Accessing Web Page ......................
  • Page 8 3.2 How can I get the files from USB storage device connecting to Vigor router? ..... 80 3.3 How to Build a LAN-to-LAN VPN Between Remote Office and Headquarter via IPSec Tunnel (Main Mode) ..........................83 3.4 How to Optimize the Bandwidth through QoS Technology ........... 87 3.5 QoS Setting Example......................
  • Page 9 4.4.3 Open Ports........................220 4.4.4 Port Triggering ......................222 4.5 Hardware Acceleration ......................225 4.5.1 Setup..........................225 4.6 Firewall ..........................227 4.6.1 Basics for Firewall......................227 4.6.2 General Setup....................... 229 4.6.3 Filter Setup ........................234 4.6.4 DoS Defense ........................ 242 4.7 User Management.......................
  • Page 10 4.12.5 Remote Dial-in User ....................332 4.12.6 LAN to LAN......................... 335 4.12.7 VPN TRUNK Management..................346 4.12.8 Connection Management ................... 355 4.13 Certificate Management ....................356 4.13.1 Local Certificate ......................356 4.13.2 Trusted CA Certificate ....................360 4.13.3 Certificate Backup....................... 361 4.14 Central VPN Management ....................
  • Page 11 4.20.1 System Status......................451 4.20.2 TR-069 ........................453 4.20.3 Administrator Password....................454 4.20.4 User Password ......................456 4.20.5 Login Page Greeting....................459 4.20.6 Configuration Backup ....................461 4.20.7 Syslog/Mail Alert ......................463 4.20.8 Time and Date ......................466 4.20.9 SNMP.......................... 467 4.20.10 Management......................
  • Page 13: Introduction

    Vigor2925 series integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, the router increases the performance of VPN greatly, and offers several protocols (such as IPSec/PPTP/L2TP) with up to 32 VPN tunnels.
  • Page 14: Web Configuration Buttons Explanation

    Several main buttons appeared on the web pages are defined as the following: Save and apply current settings. Cancel current settings and recover to the previous saved settings. Clear all the selections and parameters settings, including selection from drop-down list. All the values must be reset with factory default settings. Add new settings for specified item.
  • Page 15: Led Indicators And Connectors

    Before you use the Vigor router, please get acquainted with the LED indicators and connectors first. Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. USB1~USB2 USB device is connected and ready for use. Blinking The data is transmitting.
  • Page 16 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
  • Page 17: For Vigor2925N

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. WLAN Wireless access point is ready. Blinking It will blink slowly while wireless traffic goes through. ACT and WLAN LEDs blink quickly and simultaneously when WPS is working, and will return to normal condition after two minutes.
  • Page 18 Interface Description Wireless LAN Press "Wireless LAN ON/OFF/WPS" button once to wait for client ON/OFF/WPS device making network connection through WPS. Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN LED on) or disable (WLAN LED off) wireless connection. Factory Reset Restore the default settings.
  • Page 19: For Vigor2925N-Plus

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. 2.4G Wireless access point with transmission rate of 2.4G is ready.
  • Page 20 Interface Description Wireless LAN Press "Wireless LAN ON/OFF/WPS" button once to wait for ON/OFF/WPS client device making network connection through WPS. Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN LED on) or disable (WLAN LED off) wireless connection. Factory Reset Restore the default settings.
  • Page 21: For Vigor2925Vn-Plus

    Status Explanation ACT (Activity) Blinking The router is powered on and running normally. The router is powered off. USB device is connected and ready for use. Blinking The data is transmitting. 2.4G Wireless access point with transmission rate of 2.4G is ready.
  • Page 22 Interface Description Wireless LAN Press "Wireless LAN ON/OFF/WPS" button once to wait for ON/OFF/WPS client device making network connection through WPS. Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN LED on) or disable (WLAN LED off) wireless connection. Factory Reset Restore the default settings.
  • Page 23: Hardware Installation

    Before starting to configure the router, you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45). Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the router and the other end of the cable (RJ-45) into the Ethernet port on your computer.
  • Page 24: Printer Installation

    You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.DrayTek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).
  • Page 25 Open File->Add Printer. A welcome dialog will appear. Please click Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor2925 Series User’s Guide...
  • Page 26 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor2925 Series User’s Guide...
  • Page 27 Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next. 10. For the final stage, you need to go back to Control Panel-> Printers and edit the property of the new printer you have added.
  • Page 28: Accessing Web Page

    Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.
  • Page 29 Please type “admin/admin” as the Username/Password and click Login. Notice: If you fail to access to the web configuration, please go to “Trouble Shooting” for detecting and solving your problem. Now, the Main Screen will appear. Note: The home page will be different slightly in accordance with the type of the router you have.
  • Page 30: Changing Password

    The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after 5 minutes without any operation. Change the setting for your necessity. Please change the password for the original security of the router. Open a web browser on your PC and type http://192.168.1.1.
  • Page 31: Introducing Dashboard

    Note: Even the password has been changed, the Username for logging to the web user interface is still “admin”. Dashboard shows the connection status including System Information, IPv4 Internet Access, IPv6 Internet Access, Interface (physical connection), Security and Quick Access. Click Dashboard from the main menu on the left side of the main page.
  • Page 32: Virtual Panel

    On the top of the Dashboard, a virtual panel (simulating the physical panel of the router) displays the physical interface connection. It will be refreshed every five seconds. Port Color Explanation Displayed Ethernet Port Black It means such port is disconnected. (WAN/LAN) Green It means such port is connected (with Giga transmission...
  • Page 33: Quick Access For Common Used Menu

    All the menu items can be accessed and arranged orderly on the left side of the main page for your request. However, some important and common used menu items which can be accessed in a quick way just for convenience. Look at the right side of the Dashboard.
  • Page 34: Gui Map

    Host connected physically to the router via LAN port(s) will be displayed with green circles in the field of Connected. All of the hosts (including wireless clients) displayed with Host ID, IP Address and MAC address indicates that the traffic would be transmitted through LAN port(s) and then the WAN port.
  • Page 35: Web Console

    It is not necessary to use the telnet command via DOS prompt. The changes made by using web console have the same effects as modified through web user interface. The functions/settings modified under Web Console also can be reviewed on the web user interface.
  • Page 36: Config Backup

    There is one way to store current used settings quickly by clicking the Config Backup icon. It allows you to backup current settings as a file. Such configuration file can be restored by using System Maintenance>>Configuration Backup. Simply click the icon on the top of the main screen and a pop up dialog will appear. Click Save to store the setting.
  • Page 37 Detailed explanation (for IPv4) is shown below: Item Description LAN Status Primary DNS-Displays the primary DNS server address for WAN interface. Secondary DNS -Displays the secondary DNS server Vigor2925 Series User’s Guide...
  • Page 38 Item Description address for WAN interface. IP Address-Displays the IP address of the LAN interface. TX Packets-Displays the total transmitted packets at the LAN interface. RX Packets-Displays the total received packets at the LAN interface. WAN1/WAN2/WAN3 Enable – Yes in red means such interface is available but /WAN4 Status not enabled.
  • Page 39: Virtual Wan

    Item Description gateway. Note: The words in green mean that the WAN connection of that interface is ready for accessing Internet; the words in red mean that the WAN connection of that interface is not ready for accessing Internet. Such page displays the virtual WAN connection information. Virtual WAN are used by TR-069 management, VoIP service and so on.
  • Page 40 This page is left blank. Vigor2925 Series User’s Guide...
  • Page 41: Quick Setup

    There are several setup wizards offered for you to configure the router simply and quickly.  Quick Start Wizard – used for building network connection, Internet access.  Service Activation Wizard – used for activating the web content filter service. ...
  • Page 42 On the next page as shown below, please select the WAN interface that you use. If Ethernet interface is used, please choose WAN1/WAN2; if 3G USB modem is used, please choose WAN3/WAN4. Then click Next for next step. WAN1, WAN2, WAN3 and WAN4 will bring up different configuration page. Refer to the following for detailed information.
  • Page 43: For Wan1/Wan2 (Ethernet)

    WAN1/WAN2 is dedicated to physical mode in Ethernet. If you choose WAN1/WAN2, please specify physical type. Then, click Next. On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface.
  • Page 44 Click PPPoE as the Internet Access Type. Then click Next to continue. Available settings are explained as follows: Item Description Service Name Enter the description of the specific network service. (Optional) Username Assign a specific valid user name provided by the ISP. Note: The maximum length of the user name you can set is 63 characters.
  • Page 45 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Choose WAN1/WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type.
  • Page 46 Click PPTP/L2TP as the Internet Access Type. Then click Next to continue. Available settings are explained as follows: Item Description Username Assign a specific valid user name provided by the ISP. Note: The maximum length of the user name you can set is 63 characters.
  • Page 47 Cancel Click it to give up the quick start wizard. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
  • Page 48 Click Static IP as the Internet Access type. Simply click Next to continue. Available settings are explained as follows: Item Description WAN IP Type the IP address. Subnet Mask Type the subnet mask. Gateway Type the IP address of gateway. Type in the primary IP address for the router.
  • Page 49 Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet. Choose WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type.
  • Page 50 39 characters. Some Cable service providers specify a specific MAC address for access authentication. In such cases you need to enter the MAC address. Back Click it to return to previous setting page. Next Click it to get into the next setting page. Cancel Click it to give up the quick start wizard.
  • Page 51: For Wan3/Wan4 (Usb)

    WAN3 is dedicated to physical mode in USB. If WAN3 is selected, it is not necessary for you to type any information for such connection. Choose WAN3/WAN4 as WAN Interface. Then, click Next for getting the following page. Available settings are explained as follows: Item Description Internet Access...
  • Page 52 APN Name – APN means Access Point Name which is provided and required by some ISPs. Type the name and click Apply. Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.
  • Page 53: Service Activation Wizard

    Service Activation Wizard is a tool which allows you to use trial version or update the license of WCF directly without accessing into the server (MyVigor) located on http://myvigor.draytek.com. For using Web Content Filter Profile, please refer to later section Web Content Filter Profile for detailed information.
  • Page 54 When you finish the selection, please click Next. Commtouch is the web content filter based on Commtouch operated in the worldwide. There is a 30-day trial period. After trial, you can purchase DrayTek's prepared Commtouch GlobalView WCF package from retailing outlets.
  • Page 55 Wait for a moment till the following page appears. When such page appears, you can enable or disable these services for your necessity. Then, click Finish. Note: The service will be activated and applied as the default rule configured in Firewall>>General Setup.
  • Page 56 Vigor2925 Series User’s Guide...
  • Page 57: Vpn Client Wizard

    Such wizard is used to configure VPN settings for VPN client. Such wizard will guide to set the LAN-to-LAN profile for VPN dial out connection (from server to client) step by step. 1. Open VPN and Remote Access>>VPN Client Wizard. The following page will appear. Available settings are explained as follows: Item Description...
  • Page 58 2. When you finish the mode and profile selection, please click Next to open the following page. In this page, you have to select suitable VPN type for the VPN client profile. There are six types provided here. Different type will lead to different configuration page. After making the choices for the client profile, please click Next.
  • Page 59 Note: The following descriptions for VPN Type are based on the Route Mode specified in LAN-to-LAN Client Mode Selection.  When you choose PPTP (None Encryption) or PPTP (Encryption), you will see the following graphic:  When you choose IPsec, you will see the following graphic: ...
  • Page 60  When you choose L2TP over IPsec (Nice to Have) or L2TP over IPsec (Must), you will see the following graphic: Available settings are explained as follows: Item Description Profile Name Type a name for such profile. The length of the file is limited to 10 characters.
  • Page 61 VPN Dial-Out Use the drop down menu to choose a proper WAN interface Through for this profile. This setting is useful for dial-out only. WAN1 First/ WAN2 First /WAN3 First/WAN4 First- While connecting, the router will use WAN1/WAN2/WAN3/WAN4 as the first channel for VPN connection.
  • Page 62 High - Encapsulating Security Payload (ESP) means payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and AES. User Name This field is used to authenticate for connection when you select PPTP or L2TP with or without IPsec policy above.
  • Page 63: Vpn Server Wizard

    Such wizard is used to configure VPN settings for VPN server. Such wizard will guide to set the LAN-to-LAN profile for VPN dial in connection (from client to server) step by step. 1. Open VPN and Remote Access>>VPN Server Wizard. The following page will appear. Available settings are explained as follows: Item Description...
  • Page 64 Please choose a This item is available when you choose Remote Dial-in Dial-in User User (Teleworker) as VPN server mode. There are 32 VPN Accounts tunnels for users to set. Allowed Dial-in Type This item is available after you choose any one of dial-in user account profiles.
  • Page 65  When you check PPTP, you will see the following graphic:  When you check PPTP & IPsec & L2TP (three types) or PPTP & IPsec (two types) or L2TP with Policy (Nice to Have/Must), you will see the following graphic: Vigor2925 Series User’s Guide...
  • Page 66  When you check IPsec, you will see the following graphic: Available settings are explained as follows: Item Description Type a name for such profile. The length of the file is Profile Name limited to 10 characters. User Name This field is used to authenticate for connection when you select PPTP or L2TP with or without IPsec policy above.
  • Page 67: Wireless Wizard

    Remote Network IP Please type one LAN IP address (according to the real location of the remote host) for building VPN connection. Remote Network Please type the network mask (according to the real location Mask of the remote host) for building VPN connection. 3.
  • Page 68 Description Wireless 2.4GHz Settings Name Type the SSID name of this router for wireless 2.4GHz. The default name is defined with DrayTek. Change the name if required. Mode At present, the router can connect to 11n Only, 11g Only, Mixed (11b+11g), Mixed (11a+11n), Mixed (11g+11n), and Mixed (11b+11g+11n) stations simultaneously.
  • Page 69 Channel Means the channel of frequency of the wireless LAN. The default channel is 6. You may switch channel if the selected channel is under serious interference. If you have no idea of choosing the frequency, please select Auto to let system determine for you.
  • Page 70 3. After typing the required information, click Next. The settings in the page limit the wireless station (guest) accessing into Internet but not being allowed to share the LAN network and VPN connection. Available settings are explained as follows: Item Description Wireless 2.4GHz Settings Enable/Disable...
  • Page 71 Use the same SSID Check the box to use the same settings configured above. and Security Key as above SSID Type the SSID name of this router. (SSID2) The wireless mode offered by this wizard is WPA2/PSK. Security Key The WPA encrypts each frame transmitted from the radio using the key, which either PSK (Pre-Shared Key) entered manually in this field below or automatically negotiated via 802.1x authentication.
  • Page 72: Voip Wizard

    Vigor router offers a quick method to configure settings for VoIP application. Follow the steps listed below. Note: This wizard is available for “V” model only. 1. Open Wizards>>VoIP Wizard. 2. The screen of VoIP Wizard will be shown as follows. Available settings are explained as follows: Item Description...
  • Page 73 Cancel Click it to give up the quick start wizard. 3. After finished the settings above, click Next for viewing summary of such connection. 4. Click Finish. A page of VoIP Wizard Setup OK!!! will appear. Vigor2925 Series User’s Guide...
  • Page 74: Registering Vigor Router

    You have finished the configuration of Quick Start Wizard and you can surf the Internet at any time. Now it is the time to register your Vigor router to MyVigor website for getting more service. Please follow the steps below to finish the router registration. Please login the web configuration interface of Vigor router by typing “admin/admin”...
  • Page 75 The following page will be displayed after you logging in MyVigor. From this page, please click Add or Product Registration. When the following page appears, please type in Nickname (for the router) and choose the right registration date from the popup calendar (it appears when you click on the box of Registration Date).
  • Page 76 When the following page appears, your router information has been added to the database. Now, you have finished the product registration. After clicking OK, you will see the following page. Your router has been registered to myvigor website successfully. If you have not activated web content filter service by using Service Activation Wizard, you can activate the service from this step.
  • Page 77 When this page appears, click Register. Wait for a moment until the following page appears. Click Close. Vigor2925 Series User’s Guide...
  • Page 78 This page is left blank. Vigor2925 Series User’s Guide...
  • Page 79: Tutorials And Applications

    Due to the shortage of IPv4 address, more and more countries use IPv6 to solve the problem. However, to continually use the original rich resources of IPv4, both IPv6 and IPv4 networks shall communicate for each other via intercommunication mechanism to complete the shifting job from IPv4 to IPv6 gradually.
  • Page 80 Note: Only one WAN interface support IPv6 service at one time. In this example, WAN2 is chosen as the one supporting IPv6 service. In the following figure, use the drop down list to choose a proper connection type. Different connection types will bring out different configuration page. Refer to the following: ...
  • Page 81 Click OK and open Online Status. If the connection is successful, you will get the IP address for IPv4 and IPv6 at the same time. Vigor2925 Series User’s Guide...
  • Page 82 Vigor2925 Series User’s Guide...
  • Page 83  TSPC – Tunnel application, both IPv6 hosts communicate through IPv4 network Choose TSPC and type the information for TSPC service. Note: While using such mode, you have to make sure the IPv4 network connection is normal. (In the following figure, the TSPC information is obtained from http://gogo6.com/ after applied for the service.) Click OK and open Online Status.
  • Page 84  AICCU – Tunnel application Choose AICCU and type the information for AICCU of IPv6. Note: While using such mode, you have to make sure the IPv4 network connection is normal. (In the following figure, the AICCU information is obtained from https://www.sixxs.net/main/ after applied for the service.) Click OK and open Online Status.
  • Page 85  DHCPv6 Client Choose DHCPv6 Client. Click one of the identity associations and type the IAID number. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2925 Series User’s Guide...
  • Page 86  Static IPv6 Choose Static IPv6. Type IPv6 address, Prefix Length and Gateway Address. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2925 Series User’s Guide...
  • Page 87  6in4 Static Tunnel Choose 6in4 Static Tunnel. Type remote endpoint IPv4 address, 6in4 IPv6 Address, LAN Routed Prefix and Tunnel TTL. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2925 Series User’s Guide...
  • Page 88  Choose 6rd. Type IPv4 Border Relay, IPv4 Mask Length, 6rd Prefix and 6rd Prefix Length. Click OK and open Online Status. If the connection is successful, the physical connection will be shows as follows: Vigor2925 Series User’s Guide...
  • Page 89 After finished the WAN settings for IPv6, please configure the LAN settings to make the router’s client getting the IPv6 address. Access into the web user interface of Viogr2925. Open LAN>> General Setup. Click the IPv6 button. Note: Only the subnet of LAN1 supports IPv6 feature. In the field of Router Advertisement Server, the default setting is Enable.
  • Page 90 Make sure you have get the correct IPv6 IP address. Get into MS-DOS interface and type the command of “ipconfig”. Refer to the following figure. From the above figure we can see IPv6 IP address has been captured by the system. Use the Ping command to ping any IPv6 address indicating an IPv6 website.
  • Page 91 Connect to the website for IPv6. Open a web browser and type an URL of IPv6, e.g., www.kame.net. If your computer accesses into the website by using IPv6 address, you may see a turtle dancing on the screen. If not, only a steady turtle will be seen. If you can see a turtle dancing on the screen, that means IPv6 service is ready for you to access and utilize.
  • Page 92: How Can I Get The Files From Usb Storage Device Connecting To Vigor Router

    Files on USB storage device can be reviewed by opening USB Applicaiton>>File Explorer. If it is necessary for you to delete, copy files on the device or write, paste files to the devcie, it must be done through SAMBA server or FTP server. Samba service is based on the original USB FTP service.
  • Page 93 Setup a user account for the FTP service by using USB Application >>USB User Management. Click Enable to enable FTP/Samba User account. Here we add a new account "user1" and assign authorities “Read”, “Write” and “List” to it. Click OK to save the configuration. Make sure the FTP service is running properly.
  • Page 94 When the following screen appears, it means the FTP service is running properly. Return to USB Application >> USB Disk Status. The information for FTP server will be shown as below. Now, users in LAN of Vigor2925 can access into the USB storage device by typing ftp://192.168.1.1 on any browser.
  • Page 95: (Main Mode)

    Log into the web user interface of Vigor router. Open VPN and Remote Access>>LAN to LAN to create a LAN-to-LAN profile. Click any index number to open the configuration page. Type a name which is easy for identification for such profile (in this case, type VPN Server), and check the box of Enable This Profile.
  • Page 96 Now navigate to the next section, Dial-In Settings to check PPTP, IPSec Tunnel and L2TP boxes. Check the box of Specify Remote… and type the Peer VPN Server IP (e.g., 218.242.130.19 in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method.
  • Page 97 Open VPN and Remote Access>>Connection Management to check the dial-in connection status (from branch office). Log into the web user interface of Vigor router. Open VPN and Remote Access>>LAN to LAN to create a LAN-to-LAN profile. The following settings are for a permanent VPN connection. Click any index number to open the configuration page.
  • Page 98 Now navigate to the next section, Dial-Out Settings to select the IPSec Tunnel service and type the remote server IP/host name (e.g., 218.242.133.91, in this case). Press the IKE Pre-Shared Key button to set the PSK; and select Medium (AH) or High (ESP) as the security method.
  • Page 99: How To Optimize The Bandwidth Through Qos Technology

    Internet connection line? The advanced bandwidth management technology-QoS (Quality of Service) helps you to well allocate the bandwidth upon your demand of Voice, Video, or Data transferring. Let's see how to get the optimum bandwidth per your request by using DrayTek Vigor router as below.
  • Page 100 Check the box of ACT. Click Edit to specify the local address. In the pop-up window, choose Range Address as the Address Type and type the start IP address and end IP address in relational fields. Click OK to save the settings and exit the window.
  • Page 101 The class rule for VoIP has been set. Click OK to return to previous page. Do the same steps to add class rules for IPTV and Data/Email with IP addresses as shown below. Vigor2925 Series User’s Guide...
  • Page 102 Assuming you get 2MB/512Kb Internet line. You can click the Setup link of WAN1 to set up the bandwidth for different groups among VoIP, IPTV and Data/Email. 10. In the Setup page, check the box of Enable the QoS Control. Type 30, 50 and 15 in the boxes for VoIP, IPTV and Data/Email respectively.
  • Page 103: Qos Setting Example

    Assume a teleworker sometimes works at home and takes care of children. When working time, he would use Vigor router at home to connect to the server in the headquarter office downtown via either HTTPS or V PN to check email and access internal database. Meanwhile, children may chat on Skype in the restroom.
  • Page 104 Return to previous page. Enter the Name of Index Class 1 by clicking Edit link. Type the name “E-mail” for Class 1. Click OK to save the settings. Click the Setup link for WAN2. The user can set reserved bandwidth (e.g., 25%) for E-mail using protocol POP3 and SMTP.
  • Page 105 Click Setup link for WAN2. Check Enable UDP Bandwidth Control on the bottom to prevent enormous UDP traffic influent other application. Click OK. If the worker has connected to the headquarter using host to host VPN tunnel. (Please refer to Chapter 3 VPN for detail instruction), he may set up an index for it. Enter the Class Name of Index 3.
  • Page 106 10. Click Edit for Class 3 to open a new window. In this index, the user will set reserved bandwidth for VPN. 11. Click Add to open the following window. Check the ACT box, first. 12. Then click Edit of Local Address to set a worker’s subnet address. Click Edit of Remote Address to set headquarter’s IP address.
  • Page 107: How To Use Landing

    Landing Page is a special feature configured under User Management. It can specify the message, content to be seen or specify which website to be accessed into when users try to access into the Internet by passing the authentication. Here, we take Vigor2925 series router as an example.
  • Page 108 In the following page, check the box of Landing page and click OK to save the settings. Open any browser (e.g., FireFox, Internet Explorer). The logging page will appear and asks for username and password. Please type the correct username and password. Click Login.
  • Page 109 In the field of Landing Page, please type the words as below: “ <body stats=1><script language='javascript'> window.location='http://www.draytek.com'</script></body>” Next, enable the Landing Page function. Open User Management -> User Profile and click one of the index number (e.g., index number 3) links.
  • Page 110 Open any browser (e.g., FireFox, Internet Explorer). The logging page will appear and asks for username and password. Please type the correct username and password. Click Login. If the logging is successful, you will be directed into the website of www.draytek.com. Vigor2925 Series User’s Guide...
  • Page 111: How To Send A Notification To Specified Phone Number Via Sms Service In Wan Disconnection

    Follow the steps listed below: Log into the web user interface of Vigor router. Configure relational objects first. Open Object Settings>>SMS/Mail Server Object to get the following page. Index 1 to Index 8 allows you to choose the built-in SMS service provider. If the SMS service provider is not on the list, you can configure Index 9 and Index 10 to add the new service provider to Vigor router.
  • Page 112 After finished the settings, click OK to return to previous page. Now you have finished the configuration of the SMS Provider profile setting. Open Object Settings>>Notification Object to configure the event conditions of the notification. Choose any index number (e.g., Index 1 in this case) to configure conditions for sending the SMS.
  • Page 113 After finished the settings, click OK to return to previous page. You have finished the configuration of the notification object profile setting. Now, open Application >> SMS / Mail Alert Service. Use the drop down list to choose SMS Provider and the Notify Profile (specify the time of sending SMS). Then, type the phone number in the field of Recipient (the one who will receive the SMS).
  • Page 114 Choose one of the Index numbers (9 or 10) allowing you to customize the SMS Provider. In the web page, type the URL string of the SMS provider and type the username and password. After clicking OK, the new added SMS provider will be added and will be available for you to specify for sending SMS out.
  • Page 115: How To Create An Account For Myvigor

    The website of MyVigor (a server located on http://myvigor.draytek.com) provides several useful services (such as Anti-Spam, Web Content Filter, Anti-Intrusion, and etc.) to filtering the web pages for the sake of protecting your system. To access into MyVigor for getting more information, please create an account for MyVigor.
  • Page 116 2. Click the Activate link. A login page for MyVigor web site will pop up automatically. 3. Click the link of Create an account now. 4. Check to confirm that you accept the Agreement and click Accept. Vigor2925 Series User’s Guide...
  • Page 117 5. Type your personal information in this page and then click Continue. 6. Choose proper selection for your computer and click Continue. Vigor2925 Series User’s Guide...
  • Page 118 New Account Confirmation 8. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 9. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login.
  • Page 119: Create An Account Via Myvigor Web Site

    11. Now, click Login. Your account has been activated. You can access into MyVigor server to activate the service (e.g., WCF) that you want. 1. Access into http://myvigor.draytek.com. Find the line of Not registered yet?. Then, click the link Click here! to access into next page.
  • Page 120 2. Check to confirm that you accept the Agreement and click Accept. 3. Type your personal information in this page and then click Continue. 4. Choose proper selection for your computer and click Continue. Vigor2925 Series User’s Guide...
  • Page 121 New Account Confirmation 6. Check to see the confirmation email with the title of Letter from myvigor.draytek.com. 7. Click the Activate my Account link to enable the account that you created. The following screen will be shown to verify the register process is finished. Please click Login.
  • Page 122 8. When you see the following page, please type in the account and password (that you just created) in the fields of UserName and Password. Then type the code in the box of Auth Code according to the value displayed on the right side of it. Now, click Login.
  • Page 123: How To Configure Certain Computers Accessing To Internet

    We can specify certain computers (e.g., 192.168.1.10 ~ 192.168.1.20) accessing to Internet through Vigor router. Others (e.g., 192.168.1.31 and 192.168.1.32) outside the range can get the source from LAN only. The way we can use is to set two rules under Firewall. For Rule 1 of Set 2 under Firewall>>Filter Setup is used as the default setting, we has to create a new rule starting from Filter Rule 2 of Set 2.
  • Page 124 Check the box of Check to enable the Filter Rule. Type the comments (e.g., block_all). Choose Block If No Further Match for the Filter setting. Then, click OK. Note: In default, the router will check the packets starting with Set 2, Filter Rule 2 to Filter Rule 7.
  • Page 125 A dialog box will be popped up. Choose Range Address as Address Type by using the drop down list. Type 192.168.1.10 in the field of Start IP, and type 192.168.1.20 in the field of End IP. Then, click OK to save the settings. The computers within the range can access into the Internet.
  • Page 126 Both filter rules have been created. Click OK. Now, all the settings are configured well. Only the computers with the IP addresses within 192.168.1.10 ~ 192.168.1.20 can access to Internet. Vigor2925 Series User’s Guide...
  • Page 127: How To Block Facebook Service Accessed By The Users Via Web Content Filter / Url Content Filter

    How to register/activate Web Content Filter (WCF) license? Please visit for getting more information: *How to Register AI/AV/AS/WCF Service (Service Activation Wizard) (http://www.draytek.com/user/SupportFAQDetail.php?ID=1955) *How to Activate Anti-Virus/Anti-Intrusion/Anti-Spam Service (http://www.draytek.com/user/SupportFAQDetail.php?ID=286 ) How to use the Web Content Filter (WCF) (http://www.draytek.com/user/SupportFAQDetail.php?ID=1953) * What the Web Content Filter (WCF) license benefits are, (http://www.draytek.com/user/PdInfoDetail.php?Id=110)
  • Page 128 Open CSM >> Web Content Filter Profile to create a WCF profile. Check Social Networking with Action, Block. Enable this profile in Firewall>>General Setup>>Default Rule. Vigor2925 Series User’s Guide...
  • Page 129 Next time when someone accesses facebook via this router, the web page would be blocked and the following message would be displayed instead. A. Block the web page containing the word of “Facebook” Open Object Settings>>Keyword Object. Click an index number to open the setting page.
  • Page 130 When you finished the above steps, click OK. Then, open Firewall>>General Setup. Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook”...
  • Page 131 Open CSM>>URL Content Filter Profile. Click an index number to open the setting page. Configure the settings as the following figure. When you finished the above steps, please open Firewall>>General Setup. Vigor2925 Series User’s Guide...
  • Page 132 Click the Default Rule tab. Choose the profile just configured from the drop down list in the field of URL Content Filter. Now, users cannot open any web page with the word “facebook” inside. Vigor2925 Series User’s Guide...
  • Page 133: How To Setup Address Mapping

    Address Mapping is used to map a specified private IP or a range of private IPs of NAT subnet into a specified WAN IP (or WAN IP alias IP). Refer to the following figure. Suppose the WAN settings for a router are configured as follows: WAN1: 202.211.100.10, WAN1 alias: 202.211.100.11 WAN2: 203.98.200.10 Without address mapping feature, when a NAT host with an IP say "192.168.1.10"...
  • Page 134 Click the Details Page of WAN 1 to open the following page. From the above figure, set main WAN IP address as 202.211.100.10. Click the WAN IP Alias button to configure the other P address which is 202.211.100.11. Make sure Join IP NAT Pool is not checked. Click OK to save the settings. Vigor2925 Series User’s Guide...
  • Page 135 After finished configuration for WAN1, open Load-Balance/Route Policy. Click Index number 1 and 2 to configure the details. After finished the settings, click OK to save the settings respectively. Vigor2925 Series User’s Guide...
  • Page 136 Upon completing the above configuration, you have specified the outgoing IP address(es) for some specific computers. Now, you bind some specific computers to some WAN IP alias for outgoing traffic. Vigor2925 Series User’s Guide...
  • Page 137: How To Setup Load Balance For Packets

    The following figure shows a simple application of load balance. WAN1 and WAN2 can be used to access into Internet. The PC in LAN1 can send the data to the remote PC through the specified WAN1. Access into web user interface of Vigor2925series. Open Load-Balance/Route Policy. From the following web page, simply click index number #1.
  • Page 138 In the following page, check Enable; set Dest IP Start and Dest IP End with 203.65.1.35 and 203.65.1.35; choose WAN1 as the Interface; click default gateway; do not check Auto Failover To The Other WAN. After finished the above settings, click OK to save the configuration. Now, the packets sent to the remote PC (IP address: 203.65.1.35) will be forcefully to pass through WAN1.
  • Page 139: How To Authenticate Clients Via User Management

    Before using the function of User Management, please make sure User-Based has been selected as the Mode in the User Management>>General Setup page. With User Management authentication function, before a valid username and password have been correctly supplied, a particular client will not be allowed to access Internet through the router.
  • Page 140 Web authentication interface first. Then, the client is trying to access http://www.draytek.com and but brought to the Vigor router. Since this is an SSL connection, some web browsers will display warning messages.
  • Page 141  With Crome browser, you may get the following warning. Click Proceed anyway. After that, the web authentication window will appear. Input the user name and the password for your account (defined in User Management) and click Login. Vigor2925 Series User’s Guide...
  • Page 142 If the authentication is successful, the client will be redirected to the original web site that he tried to access. In this example, it is http://www.draytek.com . Furthermore, you will get a popped up window as the following. Then you can access the Internet.
  • Page 143 With the default setup <body stats=1><script language='javascript'> window.location='http://www.draytek.com'</script></body>, you will be redirected to http://www.draytek.com . You may change it if you want. For example, you will get the following welcome message if you enter Login Successful in the Welcome Message table.
  • Page 144  Don’t setup a user profile in User Management and a VPN Remote Dial-in user profile with the same Username. Otherwise, you may get unexpected result. It is because the VPN Remote Dial-in User profiles can be extended to the User profiles in User Management for authentication.
  • Page 145 The LAN clients can also authenticate their accounts via telnet. Telnet to the router’s LAN IP address and input the account name for the authentication: Type the password for authentication and press Enter. The message User login successful will be displayed with the expired time (if configured). Note: Here expired time is “Unlimited”...
  • Page 146 If the Time Quota is set with “0” minute, you will get the following message which means this account has no time quota. If the Time Quota is enabled and time is not 0 minute, You will get the following message. The expired time is shown after you login. After you run out the available time, you can’t use this account any more until the administrator manually adds additional time for you.
  • Page 147 The configuration of the VigorPro Alert Notice Tool is as follows: Click Authenticate Now!! to start the authentication immediately. You may get the VigorPro Alert Notice Tool from the following link: http://www.draytek.com/user/SupportDLUtility.php Note:  Any modification to the Firewall policy will break down the connections of all current users.
  • Page 148: How To Use Dns Filter

    The DNS Filter monitors DNS queries on UDP port 53 and will pass the DNS query information to the WCF (web content filter) to help with categorizing HTTPS URL's. Note: For DNS filter must use the WCF service profile to filter the packets, therefore WCF license must be activated first.
  • Page 149 3. Click OK to save the configuration. 4. A message box will appear. It's a message which reminds that the priority of URL Content Filter is higher than Web Content Filter. Just press OK button to continue. 5. Open CSM>>DNS Filter. Enable the DNS filter; choose Block as the Syslog; choose WCF-1 Default.
  • Page 150 From the Syslog, we can find out “google” is blocked. Vigor2925 Series User’s Guide...
  • Page 151: How To Use Ap Management Function (In Vigor2925) To Check Ap Status And Deploy Wlan Profile

    The administrator can manage the access points linked to Vigor2925. Open External Devices>>Access Point Devices. Vigor2925 will detect the AP connecting to the router automatically and display as below: In this case, a device named with AP800_00507F6EE4980 has been detected by Vigor router.
  • Page 152 Note: Apply to All APs can automatically apply the settings on Default profile to all of the access points registered to Vigor2925 later. Hence, it is not necessary for you to manually apply wireless profiles for APs respectively. Such feature will be convenient for people who want to quickly deploy multiple Vigor APs in a large exhibition to reach the goal of “plug and play”...
  • Page 153 The following page is offered for you to modify related settings for 5G SSID of managed AP. Continue to make any changes you want. After finished all of the changes, simply click Finish. Now, the AP (represented with AP800_00507F6EE4980) detected by Vigor router will be applied with the settings modified by Vigor router.
  • Page 154: Cvm Application - How To Manage The Cpe (Router) Through Vigor2925 Series

    To manage CPEs through Vigor2925 series, you have to set URL on CPE first and set username and password for Vigor2925 series. For this section, we use Vigor2850 series as the example. All the CPE configuration will be done through Vigor2925 series. Access into the web user interface of Vigor2925 series.
  • Page 155 In the end of the CPE (here, Vigor2850 is used), access into the web user interface of the CPE (e.g., Vigor2850 series). Open a web browser (for example, IE, Mozilla Firefox or Netscape) and type http://192.168.1.1. Open System Maintenance >> TR-069. In the field of ACS Server, type the URL (IP address with port number) of Vigor2925 series and type the same Username and Password defined on the page of Central VPN Management>>General Setup in Vigor2925 series.
  • Page 156 Check Allow management from the Internet to set management access control and click OK. Open WAN>>Internet Access. Use the drop down list of Access Mode on WAN1 to select MPoA (RFC1483/2684). Then, click Details Page. Click Specify an IP address. Type correct WAN IP address, subnet mask and gateway IP address for your CPE.
  • Page 157 Note: Reboot the CPE device and re-log into Vigor2925 series. CPE which has registered to Vigor2925 series will be captured and displayed on the page of Central VPN Management>>CPE Management. Return to the web user interface of Vigor2925 series. Open Central VPN Management>>VPN Management. Now there is one CPE displayed on the field of Unmanaged Devices List.
  • Page 158: Cvm Application - How To Build The Vpn Between Remote Devices And Vigor2925 Series

    When a remote device is managed by Vigor2925 series, it is easy to build VPN between these two devices. Access into the web user interface of Vigor2925 series. Open Central VPN Management>>CPE Management. Click the device icon (marked with ) and click the PPTP/IPsec button. Wait for a moment.
  • Page 159 A LAN to LAN profile for such VPN will be generated automatically. You can access into VPN and Remote Access>>LAN to LAN of the remote device for viewing the detailed information. Note: The profile name is created automatically by the system. Do not modify any value in such page to avoid VPN error.
  • Page 160: Cvm Application - How To Upgrade Cpe Firmware Through Vigor2925 Series

    Download the newest firmware from your DrayTek website to USB Storage Disk for the device (e.g., Vigor2850) managed by Vigor2925 series. Vigor2850, as an example, is chosen for Vigor2925 to perform the CPE firmware upgrade remotely in this case. Plug in USB storage disk onto Vigor2925 series via USB interface. Make sure the USB disk has been installed correctly;...
  • Page 161 The Maintenance profile dialog appears. In the field of Profile Name, type a name for such maintenance profile; check Enable; and choose the one you want to perform firmware upgrade from Device Name drop down list. From the Action Type, choose Firmware Upgrade. Type the file/path of the newest firmware or click Select to locate it.
  • Page 162 Then check the device information for the managed device if the firmware upgrade is successful or not. Click Managed Devices List. Click the icon of Vigor2850 and click Edit and view the software version. Another way to check if the firmware upgrade is completed or not, simply open Central VPN Management>>Log &...
  • Page 163: Advanced Configuration

    This chapter will guide users to execute advanced (full) configuration through admin mode operation. Open a web browser on your PC and type http://192.168.1.1. The window will ask for typing username and password. Please type “admin/admin” on Username/Password for administration operation. Now, the Main Screen will appear.
  • Page 164 From 10.0.0.0 to 10.255.255.255 From 172.16.0.0 to 172.31.255.255 From 192.168.0.0 to 192.168.255.255 As the router plays a role to manage and further protect its LAN, it interconnects groups of host PCs. Each of them has a private IP address assigned by the built-in DHCP server of the Vigor router.
  • Page 165: General Setup

    Therefore, when WAN1 and WAN2 are not available, the router will use 3.5G for supporting automatically. The supported 3G/4G USB Modem will be listed on DrayTek web site. Please visit www.draytek.com for more detailed information. Below shows the menu items for WAN.
  • Page 166 Index Click the WAN interface link under Index to access into the WAN configuration page. Enable V means such WAN interface is enabled and ready to be used. Display the physical mode and physical type of such WAN Physical Mode / Type interface.
  • Page 167 Auto negotiation for determined by the system. Line Speed If your choose According to Line Speed as the Load Balance Mode, please type the line speed for downloading and uploading for such WAN interface. The unit is kbps. VLAN Tag insertion Enable –...
  • Page 168 To use 3G/4G network connection through 3G/4G USB Modem, please configure WAN3 or WAN4 interface. Available settings are explained as follows: Item Description Enable Choose Yes to invoke the settings for this WAN interface. Choose No to disable the settings for this WAN interface. Display Name Type the description for such WAN interface.
  • Page 169: Internet Access

    When any of selected WAN disconnect – Such backup WAN will be activated when any master WAN interface disconnects. When all of selected WAN disconnect – Such backup WAN will be activated only when all master WAN interfaces disconnect. After finished the above settings, click OK to save the settings. For the router supports multi-WAN function, the users can set different WAN settings (for WAN1/WAN2/WAN3/WAN4) for Internet Access.
  • Page 170 Display Name It shows the name of the WAN1/WAN2/WAN3/WAN4 that entered in general setup. Physical Mode It shows the physical connection for WAN1/WAN2 (Ethernet) /WAN3/WAN4 (USB) according to the real network connection. Use the drop down list to choose a proper access mode. Access Mode Then, click Details Page for accessing the settings page to configure the settings.
  • Page 171 overwritten. DataType – Choose the type (ASCII or Hex) for the data to be stored. Data – Type the content of the data to be processed by the function of DHCP option. To use PPPoE as the accessing protocol of the internet, please click the PPPoE tab. The following web page will be shown.
  • Page 172 set previously in Application >> Schedule web page and you can use the number that you have set in that web page. WAN Connection Such function allows you to verify whether network Detection connection is alive or not through ARP Detect or Ping Detect.
  • Page 173 Address or specify another MAC address by typing on the boxes of MAC Address for the router. Specify a MAC Address – Type the MAC address for the router manually. After finishing all the settings here, please click OK to activate them. For static IP mode, you usually receive a fixed public IP address or a public subnet, namely multiple public IP addresses from your DSL or Cable ISP service providers.
  • Page 174 PING to the IP - If you enable the PING function, please specify the IP address for the system to PING it for keeping alive. PING Interval - Enter the interval for the system to execute the PING operation. WAN Connection Such function allows you to verify whether network Detection connection is alive or not through ARP Detect or Ping...
  • Page 175  Domain Name: Type in the domain name that you have assigned. DHCP Client Identifier for some ISP  Enable: Check the box to specify username and password as the DHCP client identifier for some ISP.  Username: Type a name as username. The maximum length of the user name you can set is 63 characters.
  • Page 176 Available settings are explained as follows: Item Description PPTP/L2TP Enable PPTP- Click this radio button to enable a PPTP client to establish a tunnel to a DSL modem on the WAN interface. Enable L2TP - Click this radio button to enable a L2TP client to establish a tunnel to a DSL modem on the WAN interface.
  • Page 177 Idle Timeout - Set the timeout for breaking down the Internet after passing through the time without any action. IP Address Assignment WAN IP Alias - If you have multiple public IP addresses Method(IPCP) and would like to utilize them on the WAN interface, please use WAN IP Alias.
  • Page 178 Available settings are explained as follows: Item Description Modem Support List It lists all of the modems supported by such router. 3G /4G USB Modem (PPP Click Enable for activating this function. If you click Disable, this function will be closed and all the settings that mode) you adjusted in this page will be invalid.
  • Page 179 Modem Initial String2 The initial string 1 is shared with APN. In some cases, user may need another initial AT command to restrict 3G band or do any special settings. The maximum length of the string you can set is 47 characters.
  • Page 180 Available settings are explained as follows: Item Description Modem Support List It lists all of the modems supported by such router. 4G USB Modem (DHCP Click Enable for activating this function. If you click mode) Disable, this function will be closed and all the settings that you adjusted in this page will be invalid.
  • Page 181 – – When Offline is selected, the IPv6 connection will be disabled. – – During the procedure of IPv4 PPPoE connection, we can get the IPv6 Link Local Address between the gateway and Vigor router through IPv6CP. Later, use DHCPv6 or Accept RA to acquire the IPv6 prefix address (such as: 2001:B010:7300:200::/64) offered by the ISP.
  • Page 182 Note: At present, the IPv6 prefix can be acquired via the PPPoE mode connection which is available for the areas such as Taiwan (hinet), the Netherlands, Australia and UK. – – Tunnel setup protocol client (TSPC) is an application which could help you to connect to IPv6 network easily.
  • Page 183 Item Description Username Type the name obtained from the broker. It is suggested for you to apply another username and password for http://gogonet.gogo6.com/page/freenet6-account. The maximum length of the name you can set is 63 characters. Password Type the password assigned with the user name. The maximum length of the name you can set is 19 characters.
  • Page 184 Confirm Password Type the password again to make the confirmation. Tunnel Broker Type the address for the tunnel broker IP, FQDN or an optional port number. Type the subnet prefix address getting from service Subnet Prefix provider. The maximum length of the prefix you can set is 128 characters.
  • Page 185 – – This type allows you to setup static IPv6 address for WAN interface. Available settings are explained as follows: Item Description Static IPv6 Address IPv6 Address – Type the IPv6 Static IP Address. configuration Prefix Length – Type the fixed value for prefix length. Add –...
  • Page 186 – – This type allows you to setup 6in4 Static Tunnel for WAN interface. Such mode allows the router to access IPv6 network through IPv4 network. However, 6in4 offers a prefix outside of 2002::0/16. So, you can use a fixed endpoint rather than any cast endpoint.
  • Page 187 Below shows an example for successful IPv6 connection based on 6in4 Static Tunnel mode. – – This type allows you to setup 6rd for WAN interface. Available settings are explained as follows: Item Description 6rd Mode Auto 6rd – Retrieve 6rd prefix automatically from 6rd service provider.
  • Page 188 6rd Prefix Type the 6rd IPv6 address. 6rd Prefix Length Type the IPv6 prefix length for the 6rd IPv6 prefix in number of bits. After finished the above settings, click OK to save the settings. Below shows an example for successful IPv6 connection based on 6rd mode. Vigor2925 Series User’s Guide...
  • Page 189: Multi-Vlan

    Multi-VLAN allows users to create profiles for specific WAN interface and bridge connections for user applications that require very high network throughput. Simply go to WAN and select Multi-VLAN. This page shows the basic configurations used by every channel. Available settings are explained as follows: Item Description Channel...
  • Page 190 Available settings are explained as follows: Item Description Multi-VLAN Channel Enable – Click it to enable the configuration of this 8/9/10 channel. Disable –Click it to disable the configuration of this channel. WAN Type The connections and interfaces created in every channel may select a specific WAN type to be built upon.
  • Page 191 please contact with your ISP and then click WAN link of Channel 5, 6 or 7 to configure your router. Available settings are explained as follows: Item Description Multi-VLAN Channel Enable – Click it to enable the configuration of this 5/6/7 channel.
  • Page 192 General Settings VLAN Tag – Type the value as the VLAN ID number. Valid settings are in the range from 1 to 4095. The network traffic flowing on each channel will be identified by the system via their VLAN Tags. Channels using the same WAN type may not configure the same VLAN tag value.
  • Page 193: Lan

    Local Area Network (LAN) is a group of subnets regulated and ruled by router. The design of network structure is related to what type of public IP addresses coming from your ISP. The most generic function of Vigor router is NAT. It creates a private subnet of your own. As mentioned previously, the router will talk to other public hosts on the Internet by using public IP address and talking to local hosts by using its private IP address.
  • Page 194 Vigor router will exchange routing information with neighboring routers using the RIP to accomplish IP routing. This allows users to change the information of the router such as IP address and the routers will automatically inform for each other. When you have several subnets in your LAN, sometimes a more effective and quicker way for connection is the Static routes function rather than other method.
  • Page 195: General Setup

    This page provides you the general settings for LAN. Click LAN to open the LAN settings page and choose General Setup. There are four subnets provided by the router which allow users to divide groups into different subnets (LAN1 – LAN5). In addition, different subnets can link for each other by configuring Inter-LAN Routing.
  • Page 196 Advanced DHCP packets can be processed by adding option number and data information when such function is enabled. Enable/Disable – Enable/Disable the function of DHCP Option. Each DHCP option is composed by an option number with data. For example, Option number:100 Data: abcd When such function is enabled, the specified values for DHCP option will be seen in DHCP reply packets.
  • Page 197 – – There are two configuration pages for LAN1, Ethernet TCP/IP and DHCP Setup (based on IPv4) and IPv6 Setup. Click the tab for each type and refer to the following explanations for detailed information. Available settings are explained as follows: Item Description Network Configuration...
  • Page 198 server is located the relay agent should redirect the DHCP request to. DHCP Server IP Address – It is available when Enable Relay Agent is checked. Set the IP address of the DHCP server you are going to use so the Relay Agent can help to forward the DHCP request to the DHCP server.
  • Page 199 If both the Primary IP and Secondary IP Address fields are left empty, the router will assign its own IP address to local users as a DNS proxy server and maintain a DNS cache. If the IP address of a domain name is already in the DNS cache, the router will resolve the domain name immediately.
  • Page 200 It provides 2 daemons for LAN side IPv6 address configuration. One is Router Advertisement Server (stateless) and the other is DHCPv6 Server (Stateful). Available settings are explained as follows: Item Description Router Advertisement Enable – Click it to enable router advertisement server. The Server router advertisement daemon sends Router Advertisement messages, specified by RFC 2461, to a local Ethernet LAN...
  • Page 201 Available settings are explained as follows: Item Description Network Configuration Enable/Disable - Click Enable to enable such configuration; click Disable to disable such configuration. For NAT Usage - Click this radio button to invoke NAT function. For Routing Usage - Click this radio button to invoke this function.
  • Page 202 the DHCP server to start with when issuing IP addresses. If the 1st IP address of your router is 192.168.1.1, the starting IP address must be 192.168.1.2 or greater, but smaller than 192.168.1.254. IP Pool Counts - Enter the maximum number of PCs that you want the DHCP server to assign IP addresses to.
  • Page 203 cache, the router will resolve the domain name immediately. Otherwise, the router forwards the DNS query packet to the external DNS server by establishing a WAN (e.g. DSL/Cable) connection. When you finish the configuration, please click OK to save and exit this page. Available settings are explained as follows: Item Description...
  • Page 204 other than the Vigor Router’s, you can let Relay Agent help you to redirect the DHCP request to the specified location. Start IP Address - Enter a value of the IP address pool for the DHCP server to start with when issuing IP addresses. If the 1st IP address of your router is 192.168.1.1, the starting IP address must be 192.168.1.2 or greater, but smaller than 192.168.1.254.
  • Page 205: Static Route

    Go to LAN to open setting page and choose Static Route. The router offers IPv4 and IPv6 for you to configure the static route. Both protocols bring different web pages. Available settings are explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings.
  • Page 206 Click any underline of index number to get the following page. Available settings are explained as follows: Item Description Enable Check it to enable this profile. Destination IP Address Type an IP address as the destination of such static route. Subnet Mask Type the subnet mask for such static route.
  • Page 207 You can set up to 40 profiles for IPv6 static route. Click the IPv6 tab to open the following page: Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings.
  • Page 208 Destination IPv6 Address Type the IP address with the prefix length for this entry. / Prefix Len Gateway IPv6 Address Type the gateway address for this entry. Use the drop down list to specify an interface for this static Network Interface route.
  • Page 209 Go to LAN page and click General Setup, select 1st Subnet as the RIP Protocol Control. Then click the OK button. Note: There are two reasons that we have to apply RIP Protocol Control on 1st Subnet. The first is that the LAN interface can exchange RIP packets with the neighboring routers via the 1st subnet (192.168.1.0/24).
  • Page 210: Vlan

    Go to Diagnostics and choose Routing Table to verify current routing table. With the 5-port Gigabit switch on the LAN side, Vigor router provides extremely high speed connectivity for the highest speed local data transfer of any server or local PCs. On the wireless-equipped model, each of the wireless SSIDs can also be grouped within one of the VLANs.
  • Page 211 Note: Settings in this page only applied to LAN port but not WAN port. Available settings are explained as follows: Item Description Enable Click it to enable VLAN configuration. P1 – P5 – Check the LAN port(s) to be grouped under the selected VLAN.
  • Page 212 VID – Type the value as the VLAN ID number. The range is form 0 to 4095. Priority – Type the packet priority number for such VLAN. The range is from 0 to 7. Permit untagged device in It can help users to communicate with the router still even P1 to access router though configuring wrong VLAN tag setting.
  • Page 213 The Vigor router also supports up to six private IP subnets on the LAN. Each can be independent (isolated) or common (able to communicate with each other). This is ideal for departmental or multi-occupancy applications. Vigor2925 Series User’s Guide...
  • Page 214: Bind Ip To Mac

    This function is used to bind the IP and MAC address in LAN to have a strengthening control in network. When this function is enabled, all the assigned IP and MAC address binding together cannot be changed. If you modified the binding IP or MAC address, it might cause you not access into the Internet.
  • Page 215 Refresh Refresh the ARP table listed below to obtain the newest ARP table information. IP Address – Type the IP address that will be used for the Add or Update specified MAC address. Mac Address – Type the MAC address that is used to bind with the assigned IP address.
  • Page 216: Lan Port Mirror

    LAN port mirror can be applied for the users in LAN. Generally speaking, this function copies traffic from one or more specific ports to a target port. This mechanism helps manager track the network errors or abnormal packets transmission without interrupting the flow of data access the network.
  • Page 217: Wired 802.1X

    IEEE 802.1x is an IEEE Standard for port-based Network Access Control (PNAC). It is part of the IEEE 802.1 group of networking protocols. It provides an authentication mechanism for the device that is attached to a LAN or WLAN. Wired 802.1x provides authentication for one network device on each LAN port. The RADIUS Server settings must be configured before enabling 802.1x because the EAP (Extensible Authentication Protocol) Authenticator relies on the RADIUS Server in its authentication process.
  • Page 218: Web Portal Setup

    This page allows you to configure a profile with specified URL for accessing into or display a message when a wireless/LAN user connects to Internet through this router. No matter what the purpose of the wireless/LAN client is, he/she will be forced into the URL configured here while trying to access into the Internet or the desired web page through this router.
  • Page 219: Load-Balance /Route Policy

    Available settings are explained as follows: Item Description Disable Click this button to close this function. URL Redirect Any user who wants to access into Internet through this router will be redirected to the URL specified here first. It is a useful method for the purpose of advertisement.
  • Page 220 Enable Check this box to enable this policy. Protocol Display the protocol used for this policy. Interface Display the interface to send packets to once the policy is matched. Interface Address Display the WAN IP or WAN IP alias address which is used as source IP of the outgoing packets.
  • Page 221 Destination IP Any – Any IP can be treated as the destination IP. Dest IP Start- Type the destination IP start for the specified WAN interface. Dest IP End - Type the destination IP end for the specified WAN interface. If this field is blank, it means that all the destination IPs will be passed through the WAN interface.
  • Page 222 6. If there is no error, click Finish to complete wizard setting. To use Advance Mode, do the following steps: 1. Click the Advance Mode radio button. 2. Click Index 1 to access into the following page. Vigor2925 Series User’s Guide...
  • Page 223 Available settings are explained as follows: Item Description Enable Check this box to enable this policy. Protocol Use the drop-down menu to choose a proper protocol for the WAN interface. Source IP Any – Any IP can be treated as the source IP. Src IP Start - Type the source IP start for the specified WAN interface.
  • Page 224: Nat

    When you finish the configuration, please click OK to save and exit this page. Usually, the router serves as an NAT (Network Address Translation) router. NAT is a mechanism that one or more private IP addresses can be mapped into a single public one. Public IP address is usually assigned by your ISP, for which you may get charged.
  • Page 225: Port Redirection

    Below shows the menu items for NAT. Port Redirection is usually set up for server related service inside the local network (LAN), such as web servers, FTP servers, E-mail servers etc. Most of the case, you need a public IP address for each server and this public IP address/domain name are recognized by all users.
  • Page 226 Each item is explained as follows: Item Description Index Display the number of the profile. Service Name Display the description of the specific network service. WAN Interface Display the WAN IP address used by the profile. Protocol Display the transport layer protocol (TCP or UDP). Public Port Display the port number which will be redirected to the specified Private IP and Port of the internal host.
  • Page 227 Item Description Enable Check this box to enable such port redirection setting. Mode Two options (Single and Range) are provided here for you to choose. To set a range for the specific service, select Range. In Range mode, if the public port (start port and end port) and the starting IP of private IP had been entered, the system will calculate and display the ending IP of private IP automatically.
  • Page 228: Dmz Host

    As mentioned above, Port Redirection can redirect incoming TCP/UDP or other traffic on particular ports to the specific private IP address/port of host in the LAN. However, other IP protocols, for example Protocols 50 (ESP) and 51 (AH), do not travel on a fixed port. Vigor router provides a facility DMZ Host that maps ALL unsolicited data on any protocol to a single host in the LAN.
  • Page 229 The security properties of NAT are somewhat bypassed if you set up DMZ host. We suggest you to add additional filter rules or a secondary firewall. Click DMZ Host to open the following page. You can set different DMZ host for each WAN interface.
  • Page 230 IP addresses of all hosts in your LAN network. Select one private IP address in the list to be the DMZ host. When you have selected one private IP from the above dialog, the IP address will be shown on the following screen. Click OK to save the setting.
  • Page 231 If you previously have set up WAN Alias for PPPoE or Static or Dynamic IP mode in WAN2 interface, you will find them in Aux. WAN IP for your selection. Available settings are explained as follows: Item Description Enable Check to enable the DMZ Host function. Enter the private IP address of the DMZ host, or click Private IP Choose PC to select one.
  • Page 232: Open Ports

    Open Ports allows you to open a range of ports for the traffic of special applications. Common application of Open Ports includes P2P application (e.g., BT, KaZaA, Gnutella, WinMX, eMule and others), Internet Camera etc. Ensure that you keep the application involved up-to-date to avoid falling victim to any security exploits.
  • Page 233 Available settings are explained as follows: Item Description Enable Open Ports Check to enable this entry. Comment Make a name for the defined network application/service. WAN Interface Specify the WAN interface that will be used for this entry. WAN IP Specify the WAN IP address that will be used for this entry.
  • Page 234: Port Triggering

    After finishing all the settings here, please click OK to save the configuration. Port Triggering is a variation of open ports function. The key difference between "open port" and "port triggering" is:  Once the OK button is clicked and the configuration has taken effect, "open port" keeps the ports opened forever.
  • Page 235 Comment Display the text which memorizes the application of this rule. Triggering Protocol Display the protocol of the triggering packets. Display the port of the triggering packets. Triggering Port Incoming Protocol Display the protocol for the incoming data of such triggering profile.
  • Page 236 Type the port or port range for such triggering profile. Triggering Port Incoming Protocol When the triggering packets received, it is expected the incoming packets will use the selected protocol. Select the protocol (TCP, UDP or TCP/UDP) for the incoming data of such triggering profile.
  • Page 237: Hardware Acceleration

    Hardware Acceleration is also called PPA in DrayTek for it is based on Protocol Processing Engine (PPE) of Infinion. It can only support 128 sessions for network traffic (IN & OUT) with implementing three kinds of modes - Disable, Auto and Manual.
  • Page 238 available in Auto Mode, too. But the UDP protocol is only supported in this sub-item. Apply the Class Rule in Quality of Service – Users can apply the information provided by QoS in this sub-item. Note: Please visit our website for referring the detailed configuration of QoS.
  • Page 239: Firewall

    While the broadband users demand more bandwidth for multimedia, interactive applications, or distance learning, security has been always the most concerned. The firewall of the Vigor router helps to protect your local network against attack from unauthorized outsiders. It also restricts users in the local network from accessing the Internet.
  • Page 240 Stateful inspection is a firewall architecture that works at the network layer. Unlike legacy static packet filtering, which examines a packet based on the information in its header, stateful inspection builds up a state machine to track each connection traversing all interfaces of the firewall and makes sure they are valid.
  • Page 241: General Setup

    General Setup allows you to adjust settings of IP Filter and common options. Here you can enable or disable the Call Filter or Data Filter. Under some circumstance, your filter set can be linked to work in a serial manner. So here you assign the Start Filter Set only. Also you can configure the Log Flag settings, Apply IP filter to VPN incoming packets, and Accept incoming fragmented UDP packets.
  • Page 242 Enable Strict Security For the sake of security, the router will execute strict Firewall security checking for data transmission. Such feature is enabled in default. All the packets, while transmitting through Vigor router, will be filtered by firewall. If the firewall system (e.g., content filter server) does not make any response (pass or block) for these packets, then the router’s firewall will block the packets directly.
  • Page 243 Available settings are explained as follows: Item Description Filter Select Pass or Block for the packets that do not match with the filter rules. Sessions Control The number typed here is the total sessions of the packets that do not match the filter rule configured in this page. The default setting is 60000.
  • Page 244 Syslog server. Please refer to section Syslog/Mail Alert for more detailed information. URL Content Filter Select one of the URL Content Filter profile settings (created in CSM>> URL Content Filter) for applying with this router. Please set at least one profile for choosing in CSM>>...
  • Page 245 Window size – It determines the size of TCP protocol (0~65535). The more the value is, the better the performance will be. However, if the network is not stable, small value will be proper. Session timeout – Setting timeout for sessions can make the best utilization of network resources.
  • Page 246: Filter Setup

    Click Firewall and click Filter Setup to open the setup page. To edit or add a filter, click on the set number to edit the individual set. The following page will be shown. Each filter set contains up to 7 rules. Click on the rule number button to edit each rule.
  • Page 247 Available settings are explained as follows: Item Description Check this box to enable the filter rule. Check to enable the Filter Rule Comments Enter filter set comments/description. Maximum length is 14- character long. Index(1-15) Set PCs on LAN to work at certain time interval only. You may choose up to 4 schedules out of the 15 schedules pre-defined in Applications >>...
  • Page 248 Note: RT means routing domain for 2nd subnet or other LAN. Source/Destination IP Click Edit to access into the following dialog to choose the source/destination IP or IP ranges. To set the IP address manually, please choose Any Address/Single Address/Range Address/Subnet Address as the Address Type and type them in this dialog.
  • Page 249 To set the service type manually, please choose User defined as the Service Type and type them in this dialog. In addition, if you want to use the service type from defined groups or objects, please choose Group and Objects as the Service Type.
  • Page 250 passed immediately. Block If No Further Match - A packet matching the rule, and that does not match further rules, will be dropped. Pass If No Further Match - A packet matching the rule, and that does not match further rules, will be passed through.
  • Page 251 troubleshooting needs, you can specify to record information for IM/P2P by checking the Log box. It will be sent to Syslog server. Please refer to section Syslog/Mail Alert for more detailed information. URL Content Filter Select one of the URL Content Filter profile settings (created in CSM>>...
  • Page 252 TCP protocol only; session timeout is configured for the data flow which matched with the firewall rule. DrayTek Banner – Please uncheck this box and the following screen will not be shown for the unreachable web page. The default setting is Enabled.
  • Page 253 As stated before, all the traffic will be separated and arbitrated using on of two IP filters: call filter or data filter. You may preset 12 call filters and data filters in Filter Setup and even link them in a serial manner. Each filter set is composed by 7 filter rules, which can be further defined.
  • Page 254: Dos Defense

    As a sub-functionality of IP Filter/Firewall, there are 15 types of detect/ defense function in the DoS Defense setup. The DoS Defense functionality is disabled for default. Click Firewall and click DoS Defense to open the setup page. Available settings are explained as follows: Item Description Enable Dos Defense...
  • Page 255 will start to randomly discard the subsequent UDP packets for a period defined in Timeout. The default setting for threshold and timeout are 2000 packets per second and 10 seconds, respectively. That means, when 2000 packets per second received, they will be regarded as “attack event”...
  • Page 256 Any broadcast UDP packets received from the Internet is blocked. Activating the DoS/DDoS defense functionality might block some legal packets. For example, when you activate the fraggle attack defense, all broadcast UDP packets coming from the Internet are blocked. Therefore, the RIP packets from the Internet might be dropped.
  • Page 257 After finishing all the settings here, please click OK to save the configuration. Vigor2925 Series User’s Guide...
  • Page 258: User Management

    User Management is a security feature which disallows any IP traffic (except DHCP-related packets) from a particular host until that host has correctly supplied a valid username and password. Instead of managing with IP address/MAC address, User Management function manages hosts with user account. Network administrator can give different firewall policies or rules for different hosts with different User Management accounts.
  • Page 259: General Setup

    General Setup can determine the standard (rule-based or user-based) for the users controlled by User Management. The mode (standard) selected here will influence the contents of the filter rule(s) applied to every user. Available settings are explained as follows: Item Description There are two modes offered here for you to choose.
  • Page 260: User Profile

    This page allows you to set customized profiles (up to 200) which will be applied for users controlled under User Management. Simply open User Management>>User Profile. To set the user profile, please click any index number link to open the following page. Notice that profile 1 (admin) and profile 2 (Dial-In User) are factory default settings.
  • Page 261 Available settings are explained as follows: Item Description Enable this account Check this box to enable such user profile. User Name Type a name for such user profile (e.g., LAN_User_Group_1, WLAN_User_Group_A, WLAN_User_Group_B, etc). When a user tries to access Internet through this router, an authentication step must be performed first.
  • Page 262 For the detailed configuration, simply refer to Firewall>>Filter Rule. The firewall filter rules that are not selected in Firewall>>General>>Default rule can be available for use in User Management>>User Profile. External Service The router will authenticate the dial-in user by itself or by Authentication external service such as LDAP server or Radius server.
  • Page 263 Next, the user can access Internet through any browser on Windows. Note that Alert Tool can be downloaded from DrayTek web site. Telnet – If it is selected, the user can use Telnet command to perform the authentication job.
  • Page 264: User Group

    Reset quota to default Set default time quota and data quota for such profile. When when scheduling time the scheduling time is up, the router will use the default quota expired settings automatically. Enable – Check it to use the default setting for time quota and data quota.
  • Page 265: User Online Status

    Item Description Name Type a name for this user group. Available User Objects You can gather user profiles (objects) from User Profile page within one user group. All the available user objects that you have created will be shown in this box. Notice that user object, Admin and Dial-In User are factory settings.
  • Page 266: Objects Settings

    IP Address Display the IP address of the device. Last Login Time Display the login time that such user connects to the router last time. Display the expired time of the network connection for the Expired Time user. Data Quota Display the quota for data transmission.
  • Page 267: Ip Object

    You can set up to 192 sets of IP Objects with different conditions. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the object profile. To set a new profile, please do the steps listed below: 1.
  • Page 268 Available settings are explained as follows: Item Description Name Type a name for this profile. Maximum 15 characters are allowed. Interface Choose a proper interface. For example, the Direction setting in Edit Filter Rule will ask you specify IP or IP range for WAN or LAN/DMZ/RT/VPN or any IP address.
  • Page 269 After finishing all the settings here, please click OK to save the configuration. Below is an example of IP objects settings. Vigor2925 Series User’s Guide...
  • Page 270: Ip Group

    This page allows you to bind several IP objects into one IP group. Available settings are explained as follows: Item Description Clear all profiles. Set to Factory Default Index Display the profile number that you can configure. Name Display the name of the group profile. To set a new profile, please do the steps listed below: 1.
  • Page 271: Ipv6 Object

    Available settings are explained as follows: Item Description Name Type a name for this profile. Maximum 15 characters are allowed. Interface Choose WAN, LAN or Any to display all the available IP objects with the specified interface. All the available IP objects with the specified interface Available IP Objects chosen above will be shown in this box.
  • Page 272 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile.
  • Page 273: Ipv6 Group

    After finishing all the settings, please click OK to save the configuration. This page allows you to bind several IPv6 objects into one IPv6 group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure.
  • Page 274: Service Type Object

    Available settings are explained as follows: Item Description Name Type a name for this profile. Maximum 15 characters are allowed. Available IPv6 All the available IPv6 objects with the specified interface Objects chosen above will be shown in this box. Selected IPv6 Objects Click >>...
  • Page 275 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile. Protocol Specify the protocol(s) which this profile will apply to. Source/Destination Source Port and the Destination Port column are available Port for TCP/UDP protocol.
  • Page 276: Service Type Group

    This page allows you to bind several service types into one group. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles. Index Display the profile number that you can configure. Name Display the name of the group profile. To set a new profile, please do the steps listed below: 1.
  • Page 277: Keyword Object

    Item Description Name Type a name for this profile. Available Service All the available service objects that you have added on Objects Setting>>Service Type Object will be shown in Type Objects this box. Selected Service Type Click >> button to add the selected IP objects in this box. Objects After finishing all the settings, please click OK to save the configuration.
  • Page 278 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Name Type a name for this profile, e.g., game.
  • Page 279: Keyword Group

    This page allows you to bind several keyword objects into one group. The keyword groups set here will be chosen as black /white list in CSM >>URL /Web Content Filter Profile. Available settings are explained as follows: Item Description Set to Factory Default Clear all profiles.
  • Page 280: File Extension Object

    Available settings are explained as follows: Item Description Name Type a name for this group. Maximum 15 characters are allowed. Available Keyword You can gather keyword objects from Keyword Object Objects page within one keyword group. All the available Keyword objects that you have created will be shown in this box.
  • Page 281 To set a new profile, please do the steps listed below: 1. Click the number (e.g., #1) under Profile column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name Type a name for this profile.
  • Page 282 This page allows you to set ten profiles which will be applied in Application>>SMS/Mail Alert Service. Each item is explained as follows: Item Description Set to Factory Default Clear all of the settings and return to factory default settings. Index Display the profile number that you can configure.
  • Page 283 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Type a name for such SMS profile. The maximum length of Profile Name the name you can set is 31 characters. Service Provider Use the drop down list to specify the service provider which offers SMS service.
  • Page 284 Vigor router offers several SMS service provider to offer the SMS service. However, if your service provider cannot be found from the service provider list, simply use Index 9 and Index 10 to make customized SMS service. The profile name for Index 9 and Index 10 are fixed. You can click the number (e.g., #9) under Index column for configuration in details.
  • Page 285: Sms/Mail Service Object

    Username Type a user name that the sender can use to register to selected SMS provider. The maximum length of the name you can set is 31 characters. Password Type a password that the sender can use to register to selected SMS provider.
  • Page 286 To set a new profile, please do the steps listed below: 1. Click the Mail Server tab, and click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name...
  • Page 287: Notification Object

    Authentication The mail server must be authenticated with the correct username and password to have the right of sending message out. Check the box to enable the function. Username – Type a name for authentication. The maximum length of the name you can set is 31 characters. Password –...
  • Page 288 To set a new profile, please do the steps listed below: 1. Open Object Setting>>Notification Object, and click the number (e.g., #1) under Index column for configuration in details. 2. The configuration page will be shown as follows: Available settings are explained as follows: Item Description Profile Name...
  • Page 289: Csm Profile

    CSM is an abbreviation of Content Security Management which is used to control IM/P2P usage, filter the web content and URL content to reach a goal of security management. As the popularity of all kinds of instant messenger application arises, communication cannot become much easier.
  • Page 290: App Enforcement Profile

    You can define policy profiles for IM (Instant Messenger)/P2P (Peer to Peer)/Protocol/Misc application. This page allows you to set 32 profiles for different requirements. The APP Enforcement Profile will be applied in Default Rule of Firewall>>General Setup for filtering. Available settings are explained as follows: Item Description Set to Factory Default...
  • Page 291 Below shows the items which are categorized under Protocol. Available settings are explained as follows: Item Description Profile Name Type a name for the CSM profile. The maximum length of the name you can set is 15 characters. Select All Click it to choose all of the items in this page.
  • Page 292 The items categorized under P2P ----- Vigor2925 Series User’s Guide...
  • Page 293 The items categorized under Misc ----- Vigor2925 Series User’s Guide...
  • Page 294: Url Content Filter Profile

    To provide an appropriate cyberspace to users, Vigor router equips with URL Content Filter not only to limit illegal traffic from/to the inappropriate web sites but also prohibit other web feature where malicious code may conceal. Once a user type in or click on an URL with objectionable keywords, URL keyword blocking facility will decline the HTTP request to that web page thus can limit user’s access to the website.
  • Page 295 Administration Message You can type the message manually for your necessity. Default Message - You can type the message manually for your necessity or click this button to get the default message which will be displayed on the field of Administration Message.
  • Page 296 matching with the conditions specified in URL Access Control and Web Feature below, such function can determine the priority for the actions executed. For this one, the router will process the packages with the conditions set below for web feature first, then URL second. None –...
  • Page 297 supports multiple keywords. The keyword could be a noun, a partial noun, or a complete URL string. Multiple keywords within a frame are separated by space, comma, or semicolon. In addition, the maximal length of each frame is 32-character long. After specifying keywords, the Vigor router will decline the connection request to the website whose URL string matched to any user-defined keyword.
  • Page 298: Web Content Filter Profile

    Note: If you have used Service Activation Wizard to activate WCF service, you can skip this section. WCF adopts the mechanism developed and offered by certain service provider (e.g., DrayTek). No matter activating WCF feature or getting a new license for web content filter, you have to click Activate to satisfy your request.
  • Page 299 Setup Test Server It is recommended for you to use the default setting, auto-selected. Find more Click it to open http://myvigor.draytek.com for searching another qualified and suitable server. Click this link to do the verification. Test a site to verify...
  • Page 300 Cache None – the router will check the URL that the user wants to access via WCF precisely, however, the processing rate is normal. Such item can provide the most accurate URL matching. L1 – the router will check the URL that the user wants to access via WCF.
  • Page 301 Available settings are explained as follows: Item Description Profile Name Type a name for the profile. The maximum length of the name you can set is 15 characters. Black/White List Enable – Activate white/black list function for such profile. Group/Object Selections – Click Edit to choose the group or object profile as the content of white/black list.
  • Page 302: Dns Filter

    The DNS Filter monitors DNS queries on UDP port 53 and will pass the DNS query information to the WCF to help with categorizing HTTPS URL's. Note: For DNS filter must use the WCF service profile to filter the packets, therefore WCF license must be activated first.
  • Page 303: Appe Support List

    Service Set the filtering conditions. Specify one of the WCF profiles as Service. Choose the WCF profiles to apply DNS filter. Set the time for DNS query. Cache Time (hour) Administration Message Type the words or sentences which will be displayed when a web page is blocked by Vigor router.
  • Page 304: Bandwidth Management

    Below shows the menu items for Bandwidth Management. A PC with private IP address can access to the Internet via NAT router. The router will generate the records of NAT sessions for such connection. The P2P (Peer to Peer) applications (e.g., BitTorrent) always need many sessions for procession and also they will occupy over resources which might result in important accesses impacted.
  • Page 305 Default session limit - Defines the default session number used for each computer in LAN. Limitation List Displays a list of specific limitations that you set on this web page. Specific Limitation Start IP- Defines the start IP address for limit session. End IP - Defines the end IP address for limit session.
  • Page 306: Bandwidth Limit

    The downstream or upstream from FTP, HTTP or some P2P applications will occupy large of bandwidth and affect the applications for other programs. Please use Limit Bandwidth to make the bandwidth usage more efficient. In the Bandwidth Management menu, click Bandwidth Limit to open the web page. To activate the function of limit bandwidth, simply click Enable and set the default upstream and downstream limit.
  • Page 307 downstream for each computer in LAN. Allow auto adjustment….- Check this box to make the best utilization of available bandwidth. Limitation List Display a list of specific limitations that you set on this web page. Specific Limitation Start IP - Define the start IP address for limit bandwidth. End IP - Define the end IP address for limit bandwidth.
  • Page 308: Quality Of Service

    Deploying QoS (Quality of Service) management to guarantee that all applications receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modern enterprise network. One reason for QoS is that numerous TCP-based applications tend to continually increase their transmission rate and consume all available bandwidth, which is called TCP slow start.
  • Page 309 However, each node may take different attitude toward packets with high priority marking since it may bind with the business deal of SLA among different DS domain owners. It’s not easy to achieve deterministic and consistent high-priority QoS traffic throughout the whole network with merely Vigor router’s effort.
  • Page 310 Item Description service type. Enable the First Priority When this feature is enabled, the VoIP SIP/UDP packets will for VoIP SIP/RTP be sent with highest priority. SIP UDP Port – Set a port number used for SIP. This page displays the QoS settings result of the WAN interface. Click the Setup link to access into next page for the general setup of WAN interface.
  • Page 311 Available settings are explained as follows: Item Description Enable the QoS Control The factory default for this setting is checked. Please also define which traffic the QoS Control settings will apply to. IN - apply to incoming traffic only. OUT - apply to outgoing traffic only. BOTH - apply to both incoming and outgoing traffic.
  • Page 312 network traffic. Limited_bandwidth Ratio The ratio typed here is reserved for limited bandwidth of UDP application. Note: The rate of outbound/inbound must be smaller than the real bandwidth to ensure correct calculation of QoS. It is suggested to set the bandwidth value for inbound/outbound as 80% - 85% of physical network speed provided by ISP to maximize the QoS performance.
  • Page 313 For adding a new rule, click Add to open the following page. Available settings are explained as follows: Item Description Check this box to invoke these settings. Hardware Check this box to enable the hardware acceleration when Acceleration such rule is applied. Ethernet Type Please specify which protocol (IPv4 or IPv6) will be used for this rule.
  • Page 314 Service Type It determines the service type of the data for processing with QoS control. It can also be edited. You can choose the predefined service type from the Service Type drop down list. Those types are predefined in factory. Simply choose the one that you want for using by current QoS.
  • Page 315 After you click the Edit link, you will see the following page. For adding a new service type, click Add to open the following page. Available settings are explained as follows: Item Description Service Name Type in a new service for your request. The maximum length of the name you can set is 11 characters.
  • Page 316 Packets coming from LAN IP can be retagged through QoS setting. When the packets sent out through WAN interface, all of them will be tagged with certain header and that will be easily to be identified by server on ISP. For example, in the following illustration, the VoIP packets in LAN go into Vigor router without any header.
  • Page 317: Applications

    Below shows the menu items for Applications. The ISP often provides you with a dynamic IP address when you connect to the Internet via your ISP. It means that the public IP address assigned to your router changes each time you access the Internet.
  • Page 318 Set to Factory Clear all profiles and recover to factory settings. Default Enable Dynamic Check this box to enable DDNS function. DNS Setup Display DDNS log status. View Log Force Update Force the router updates its information to DDNS server. Auto-Update Set the time for the router to perform auto update for DDNS interval...
  • Page 319 WAN Interface WAN1/WAN2/WAN3 First - While connecting, the router will use WAN1/WAN2/WAN3 as the first channel for such account. If WAN1/WAN2/WAN3 fails, the router will use another WAN interface instead. WAN1/WAN2/WAN3 Only - While connecting, the router will use WAN1/WAN2/WAN3 as the only channel for such account.
  • Page 320: Lan Dns

    Disable the Function and Clear all Dynamic DNS Accounts In the DDNS setup menu, uncheck Enable Dynamic DNS Setup, and push Clear All button to disable the function and clear all accounts from the router. Delete a Dynamic DNS Account In the DDNS setup menu, click the Index number you want to delete and then push Clear All button to delete the account.
  • Page 321 Available settings are explained as follows: Item Description Enable Check this box to enable such profile. Profile Type a name for such profile. Domain Name Type the domain name for such profile. IP Address List The IP address listed here will be used for mapping with the domain name specified above.
  • Page 322: Schedule

    The Vigor router has a built-in clock which can update itself manually or automatically by means of the Network Time Protocols (NTP) selected on System Maintenance>>Time and Date. You can not only schedule the router to dialup to the Internet at a specified time, but also restrict Internet access to certain hours so that users can connect to the Internet only during certain hours, say, business hours.
  • Page 323 You can set up to 15 schedules. Then you can apply them to your Internet Access or VPN and Remote Access >> LAN-to-LAN settings. To add a schedule: Click any index, say Index No. 1. The detailed settings of the call schedule with index 1 are shown below. Available settings are explained as follows: Item Description...
  • Page 324 Click OK button to save the settings. Example Suppose you want to control the PPPoE Internet access connection to be always on (Force On) from 9:00 to 18:00 for whole week. Other time the Internet access connection should be disconnected (Force Down). Office Hour: (Force On)
  • Page 325: Radius

    Remote Authentication Dial-In User Service (RADIUS) is a security authentication client/server protocol that supports authentication, authorization and accounting, which is widely used by Internet service providers. It is the most common method of authenticating and authorizing dial-up and tunneled network users. The built-in RADIUS client feature enables the router to assist the remote dial-in user or a wireless station and the RADIUS server in performing mutual authentication.
  • Page 326: Active Directory/ Ldap

    Lightweight Directory Access Protocol (LDAP) is a communication protocol for using in TCP/IP network. It defines the methods to access distributing directory server by clients, work on directory and share the information in the directory by clients. The LDAP standard is established by the work team of Internet Engineering Task Force (IETF).
  • Page 327 account then do the bind authentication. Regular Mode– Mostly it is the same with anonymous mode. The different is that, the server will firstly check if you have the search authority. For the regular mode, you’ll need to type in the Regular DN and Regular Password.
  • Page 328: Upnp

    Available settings are explained as follows: Item Description Name Type a name for such profile. Common Name Type or edit the common name identifier for the LDAP server. Identifier The common name identifier for most LDAP server is “cn”. Base Distinguished Type or edit the distinguished name used to look up entries on Name / Group the LDAP server.
  • Page 329 Available settings are explained as follows: Item Description Enable UPNP Service Accordingly, you can enable either the Connection Control Service or Connection Status Service. It is used to specify the WAN interface for applying such Default WAN function. After setting Enable UPNP Service setting, an icon of IP Broadband Connection on Router on Windows XP/Network Connections will appear.
  • Page 330: Igmp

    The reminder as regards concern about Firewall and UPnP Can't work with Firewall Software Enabling firewall applications on your PC may cause the UPnP function not working properly. This is because these applications will block the accessing ability of some network ports.
  • Page 331: Wake On Lan

    Available settings are explained as follows: Item Description Enable IGMP Proxy Check this box to enable this function. The application of multicast will be executed through WAN port. In addition, such function is available in NAT mode. Enable IGMP Snooping Check this box to enable this function.
  • Page 332: Sms / Mail Alert Service

    IP Address The IP addresses that have been configured in Firewall>>Bind IP to MAC will be shown in this drop down list. Choose the IP address from the drop down list that you want to wake up. MAC Address Type any one of the MAC address of the bound PCs. Wake Up Click this button to wake up the selected IP.
  • Page 333 Available settings are explained as follows: Item Description Index Check the box to enable such profile. Use the drop down list to choose SMS service provider. SMS Provider You can click SMS Provider link to define the SMS server. Recipient Type the name of the one who will receive the SMS.
  • Page 334 This page allows you to specify Mail Server profile, who will get the notification e-mail, what the content is and when the message will be sent. Available settings are explained as follows: Item Description Index Check the box to enable such profile. Mail Service Use the drop down list to choose mail service provider.
  • Page 335: Bonjour

    Bonjour is a service discovery protocol which is a built-in service in Mac OS X; for Windows or Linux platform, there are correspondent software to enable this function for free. Usually, users have to configure the router or personal computers to use above services. Sometimes, the configuration (e.g., IP settings, port number) is complicated and not easy to complete.
  • Page 336 2. Open the web browse, Firefox. If Bonjour and DNSSD have been installed, you can open the web page (DNSSD) and see the following results. 3. Open System Maintenance>>Management. Type a name (e.g., Dray_2925) as the Router Name and click OK. 4.
  • Page 337 5. Open the DNSSD page again. The available items will be changed as the follows. It means the Vigor router (based on Bonjour protocol) is ready to be used as a printer server, FTP server, SSH Server, Telnet Server, and HTTP Server. 6.
  • Page 338: Vpn And Remote Access

    A Virtual Private Network (VPN) is the extension of a private network that encompasses links across shared or public networks like the Internet. In short, by VPN technology, you can send data between two computers across a shared or public network in a manner that emulates the properties of a point-to-point private link.
  • Page 339: Ppp General Setup

    This submenu only applies to PPP-related VPN connections, such as PPTP, L2TP, L2TP over IPSec. Available settings are explained as follows: Item Description Dial-In PPP PAP Only - elect this option to force the router to Authentication authenticate dial-in users with the PAP protocol. PAP/CHAP/MS-CHAP/MS-CHAPv2 - Selecting this option means the router will attempt to authenticate dial-in users with the CHAP protocol first.
  • Page 340: Ipsec General Setup

    be applied to encrypt the data. Maximum MPPE - This option indicates that the router will use the MPPE encryption scheme with maximum bits (128-bit) to encrypt the data. Mutual Authentication The Mutual Authentication function is mainly used to (PAP) communicate with other routers or clients who need bi-directional authentication in order to provide stronger security, for example, Cisco routers.
  • Page 341 receiving side, the peer will perform the same one-way hash on the packet and compare the value with the one in the AH it receives. Encapsulating Security Payload (ESP) is a security protocol that provides data confidentiality and protection with optional authentication and replay detection service. Available settings are explained as follows: Item Description...
  • Page 342: Ipsec Peer Identity

    To use digital certificate for peer authentication in either LAN-to-LAN connection or Remote User Dial-In connection, here you may edit a table of peer certificate for selection. As shown below, the router provides 64 entries of digital certificates for peer dial-in users. Available settings are explained as follows: Item Description...
  • Page 343 Available settings are explained as follows: Item Description Profile Name Type the name of the profile. The maximum length of the name you can set is 32 characters. Enable this account Check it to enable such account profile. Accept Any Peer ID Click to accept any peer regardless of its identity.
  • Page 344: Remote Dial-In User

    You can manage remote access by maintaining a table of remote user profile, so that users can be authenticated to dial-in via VPN connection. You may set parameters including specified connection peer ID, connection type (VPN connection - including PPTP, IPSec Tunnel, and L2TP by itself or over IPSec) and corresponding security methods, etc.
  • Page 345 Status Display the access state of the specific dial-in user. The symbol V and X represent the specific dial-in user to be active and inactive, respectively. Click each index to edit one remote user profile. Each Dial-In Type requires you to fill the different corresponding fields on the right.
  • Page 346 below:  None - Do not apply the IPSec policy. Accordingly, the VPN connection employed the L2TP without IPSec policy can be viewed as one pure L2TP connection.  Nice to Have - Apply the IPSec policy first, if it is applicable during negotiation.
  • Page 347: Lan To Lan

    Method L2TP with IPSec Policy when you specify the IP address of the remote node. The only exception is Digital Signature (X.509) can be set when you select IPSec tunnel either with or without specify the IP address of the remote node. Pre-Shared Key - Check the box of Pre-Shared Key to invoke this function and type in the required characters (1-63) as the pre-shared key.
  • Page 348 The following shows profiles joined into VPN Load Balance and VPN Backup mechanism. Available settings are explained as follows: Item Description View All – Click it to display the LAN to LAN profiles. Online – Click it to display the online profiles. Offline –...
  • Page 349 Status Online – means such LAN to LAN profile is in use. Offline – means such LAN to LAN profile isn’t in use even if the profile has been enabled. To edit each profile: Click each index to edit each profile and you will get the following page. Each LAN-to-LAN profile includes 4 subgroups.
  • Page 350  WAN1 First/ WAN2 First/ WAN3 First /WAN4 First- While connecting, the router will use WAN1/WAN2/WAN3 as the first channel for VPN connection. If WAN1/WAN2/WAN3/WAN4 fails, the router will use another WAN interface instead. WAN1 Only /WAN2 Only/WAN 3 Only/WAN 4 Only- While connecting, the router will use WAN1/WAN2/WAN3/WAN4 as the only channel for VPN connection.
  • Page 351 especially useful in the case of abnormal VPN IPSec tunnel disruption. For details, please refer to the note below. Check to enable the transmission of PING packets to a specified IP address. Enable PING to keep alive is used to handle abnormal IPSec VPN connection disruption.
  • Page 352 IKE Authentication Method - This group of fields is applicable for IPSec Tunnels and L2TP with IPSec Policy.  Pre-Shared Key - Input 1-63 characters as pre-shared key.  Digital Signature (X.509) - Select one predefined Profiles set in the VPN and Remote Access >>IPSec Peer Identity.
  • Page 353 IKE phase 1 mode -Select from Main mode and Aggressive mode. The ultimate outcome is to exchange security proposals to create a protected secure channel. Main mode is more secure than Aggressive mode since more exchanges are done in a secure channel to set up the IPSec session.
  • Page 354 Available settings are explained as follows: Item Description Dial-In Settings Allowed Dial-In Type - Determine the dial-in connection with different types.  PPTP - Allow the remote dial-in user to make a PPTP VPN connection through the Internet. You should set the User Name and Password of remote dial-in user below.
  • Page 355 dial-in VPN connection becomes one pure L2TP connection.  Must - Specify the IPSec policy to be definitely applied on the L2TP connection. Specify Remote VPN Gateway - You can specify the IP address of the remote dial-in user or peer ID (should be the same with the ID setting in dial-in type) by checking the box.
  • Page 356  High- Encapsulating Security Payload (ESP) means payload (data) will be encrypted and authenticated. You may select encryption algorithm from Data Encryption Standard (DES), Triple DES (3DES), and AES. Gre over IPSec Enable IPSec Dial-Out function GRE over IPSec: Check this box to verify data and transmit data in encryption with Settings GRE over IPSec packet after configuring IPSec Dial-Out...
  • Page 357 RIP Direction - The option specifies the direction of RIP (Routing Information Protocol) packets. You can enable/disable one of direction here. Herein, we provide four options: TX/RX Both, TX Only, RX Only, and Disable. From first subnet to remote network, you have to do - If the remote network only allows you to dial in with single IP, please choose NAT, otherwise choose Route.
  • Page 358: Vpn Trunk Management

    VPN trunk includes four features - VPN Backup, VPN load balance, GRE over IPSec, and Binding tunnel policy. – – VPN TRUNK Management is a backup mechanism which can set multiple VPN tunnels as backup tunnel. It can assure the network connection not to be cut off due to network environment blocked by any reason.
  • Page 359 Available settings are explained as follows: Item Description Backup Profile List Set to Factory Default - Click to clear all VPN TRUNK-VPN Backup mechanism profile. No – The order of VPN TRUNK-VPN Backup mechanism profile. Status - “v” means such profile is enabled; “x” means such profile is disabled.
  • Page 360 Member2 drop down list below. Advanced – This button is available only when LAN to LAN profile (or more) is created. Detailed information for this dialog, see later section - Advanced Load Balance and Backup. Set to Factory Default - Click to clear all VPN Load Balance Profile List TRUNK-VPN Load Balance mechanism profile.
  • Page 361 Detailed information for this dialog, see later section - Advanced Load Balance and Backup. General Setup Status- After choosing one of the profile listed above, please click Enable to activate this profile. If you click Disable, the selected or current used VPN TRUNK-Backup/Load Balance mechanism profile will not have any effect for VPN tunnel.
  • Page 362 profiles in LAN-to-LAN will be displayed in blue. Update- Click this button to save the changes to the Status (Enable or Disable), profile name, member1 or member2. Delete - Click this button to delete the selected VPN TRUNK profile. The corresponding members (LAN-to-LAN profiles) grouped in the deleted VPN TRUNK profile will be released and that profiles in LAN-to-LAN will be displayed in black.
  • Page 363 Take a look for LAN-to-LAN profiles. Index 1 is chosen as Member1; index 2 is chosen as Member2. For such reason, LAN-to-LAN profiles of 1 and 2 will be expressed in red to indicate that they are fixed. If you delete the VPN TRUNK – VPN Backup/Load Balance mechanism profile, the selected LAN-to-LAN profiles will be released and expressed in black.
  • Page 364 After setting profiles for load balance, you can choose any one of them and click Advance for more detailed configuration. The windows for advanced load balance and backup are different. Refer to the following explanation: Advanced Load Balance Available settings are explained as follows: Item Description List the load balance profile name.
  • Page 365 user to adjust suitable rate manually. There are 100 groups of rate ratio for Member1:Member2 (range from 1:99 to 99:1). VPN Load Balance Policy Below shows the algorithm for Load Balance. Edit – Click this radio button for assign a blank table for configuring Binding Tunnel.
  • Page 366 Detail Information This field will display detailed information for Binding Tunnel Policy. Below shows a successful binding tunnel policy for load balance: Note : To configure a successful binding tunnel, you have to: Type Binding Src IP range (Start and End) and Binding Des IP range (Start and End).
  • Page 367: Connection Management

    Item Description Profile Name List the backup profile name. ERD Mode ERD means “Environment Recovers Detection”. Normal – choose this mode to make all dial-out VPN TRUNK backup profiles being activated alternatively. Resume – when VPN connection breaks down or disconnects, Member 1 will be the top priority for the system to do VPN connection.
  • Page 368: Certificate Management

    VPN Server IP address). The VPN connection built by Backup Mode supports VPN backup function. Dial - Click this button to execute dial out function. Refresh Seconds - Choose the time for refresh the dial information among 5, 10, and 30. Refresh - Click this button to refresh the whole connection status.
  • Page 369 click Generate again. Import Click this button to import a saved file as the certification information. Refresh Click this button to refresh the information listed below. View Click this button to view the detailed settings for certificate request. Delete Click this button to delete selected name with certification information.
  • Page 370 IMPORT Vigor router allows you to generate a certificate request and submit it the CA server, then import it as “Local Certificate”. If you have already gotten a certificate from a third party, you may import it directly. The supported types are PKCS12 Certificate and Certificate with a private key.
  • Page 371 Upload PKCS12 It allows users to import the certificate whose extensions are Certificate usually .pfx or .p12. And these certificates usually need passwords. Note: PKCS12 is a standard for storing private keys and certificates securely. It is used in (among other things) Netscape and Microsoft Internet Explorer with their import and export options.
  • Page 372: Trusted Ca Certificate

    it and submit a request. A new certificate will be issued to you by the CA server. You can save it. Click this button to remove the selected certificate. Trusted CA certificate lists three sets of trusted CA certificate. To import a pre-saved trusted CA certificate, please click IMPORT to open the following window.
  • Page 373: Certificate Backup

    Local certificate and Trusted CA certificate for this router can be saved within one file. Please click Backup on the following screen to save them. If you want to set encryption password for these certificates, please type characters in both fields of Encrypt password and Retype password.
  • Page 374: Central Vpn Management

    Vigor2925 can build virtual private network (VPN) between itself and any other TR-069 CPE by the function of central VPN management. In addition, it can be treated as a server (called CVM server) which can manage TR-069 CPE for periodical firmware upgrade, configuration backup and restoring configuration.
  • Page 375 To enable the CVM feature, the first thing you have to do is enabling CVM port or CVM SSL Port. Available settings are explained as follows: Item Description CVM Port Check the box to enable the port setting. Type the port number in the box. CVM SSL Port Check the box to enable the port setting.
  • Page 376 Central VPN management is operated through IPsec VPN connection. Available settings are explained as follows: Item Description IPsec Mode Choose Aggressive or Main as the IPsec Mode. Security Method Choose one of the following methods (AH or ESP) for the security of data transmission.
  • Page 377: Cpe Management

    All the CPEs managed by Vigor2925 series can be seen with icons from this page Before using such feature, make sure the CVM port has been enabled and configured properly. This page allows you to manage the CPEs connected to Vigor2925 series. ...
  • Page 378 Available settings are explained as follows: Item Description This area displays device icons (up to 8) for the CPE managed Managed Devices List by Vigor2925 series. Edit – To modify the name and location of specific CPE, click the one you want and click the Edit button. A pop up window will appear.
  • Page 379 Delete – To disconnect the management of any CPE, click the CPE icon you want and click the Delete button. Note: Double-clicking the CPE icon also can pop up the Managed Device Detail window. However, you cannot modify any data on the window. Unmanaged Devices List Any device (CPE) which follows the standard of TR-069 can be configured and can be detected by Vigor2925 series...
  • Page 380 Device Model – Display the model name of the remote device. Description Name – Define the name or type the additional description of CPE for identification in VPN management and CPE management. Location – Type the location (address) of the CPE to be displayed by Google Map.
  • Page 381 Click the icon to see the content inside the USB disk. Set to Factory Default Click to clear all indexes. Index Display the number of the profile that you can edit. Profile Name Display the name of the maintenance profile. Device Name Display the name of the managed CPE that the maintenance profile will apply to.
  • Page 382 Enable Check it to enable such profile. Device Name The drop down list will display all the CPE devices detected by Vigor2925 series. Choose the one which will be applied with such new created profile. Action Type There are three actions for you to choose for such profile. Config Backup –...
  • Page 383 To display the location of the managed CPE with a bird’s eye view, open Central VPN Management>>CPE Management and click the tab of Google Map. Vigor2925 Series User’s Guide...
  • Page 384: Vpn Management

    An easy and quick method is offered to configure VPN settings for building VPN connection automatically between Vigor2925 series (treated as VPN server) and other Vigor router (treated as CPE device, i.e., VPN client).  Page without CPE connected  Page with CPE connected Display Screen Available parameters are listed as follows:...
  • Page 385: Log & Alert

    List. Advanced To build a VPN connection with detailed configuration (such as PPP authentication and VJ compression), click Advanced. Specify the remote CPE from the Device drop down list; select PPTP or IPsec as the Dial Type; choose PAP only or PAP or CHAP as PPP authentication;...
  • Page 386 Item Description Display Mode Choose the mode you want to display the related information on the following table. Stop record when fulls – when the capacity of CVM log is full, the system will stop recording. Always record the new event – only the newest events will be recorded by the system.
  • Page 387: Central Ap Management

    Vigor2925 can manage the access points supporting AP management via Central AP Management. This page displays current status (online, offline or SSID hidden, IP address, encryption, channel, version, password and etc.) of the access points managed by Vigor router. Please open Central AP Management>>Function Support List to check what AP Models are supported.
  • Page 388: Wlan Profile

    number displayed on the right side means 5Ghz. Version Display the firmware version used by the access point. Password Vigor2925 can get related information of the access point by accessing into the web user interface of the access point. This button is used to modify the logging password of the connected access point.
  • Page 389 WLAN profile. First, you have to check the box of the existing profile as the original profile. Second, click Clone. The following dialog will appear. Third, choose the profile index to accept the settings from the original profile. Forth, type a new name in the field of Renamed as.
  • Page 390 1. Check the box on the left side of the selected profile. 2. Click the Edit button to display the following page. Vigor2925 Series User’s Guide...
  • Page 391 3. After finished the general settings configuration, click Next to open the following page for 2.4G wireless security settings. Vigor2925 Series User’s Guide...
  • Page 392 4. After finished the above web page configuration, click Next to open the following page for 5G wireless security settings. 5. When you finished the above web page configuration, click Finish to exit and return to the first page. The modified WLAN profile will be shown on the web page. Vigor2925 Series User’s Guide...
  • Page 393: Ap Maintenance

    Vigor router can execute configuration backup, configuration restoration, firmware upgrade and remote reboot for the APs managed by the router. It is very convenient for the administrator to process maintenance without accessing into the web user interface of the access point. Note: Config Backup can be performed to one AP at one time.
  • Page 394: Traffic Graph

    Click Traffic Graph to open the web page. Choose one of the managed Access Points, LAN-A or LAN-B, daily or weekly for viewing data transmission chart. Click Refresh to renew the graph at any time. Note: Enabling/Disabling such function will also enable/disable the External Devices function.
  • Page 395 Available settings are explained as follows: Item Description Enable Neighbor AP Detection – The access point(s) registered to Vigor2925 will be used to detect other access points and send the scanned results to Vigor2925. Later, the scanned result will be displayed on this page. Local WLAN Detection –...
  • Page 396 AP is friendly and which one is Rogue respectively. Follow the steps below to perform the classification of access points. 1. Click the radio button on one of the access points. In this case, DrayTek-LAN-A is selected. 2. Later, some options will appear on the bottom of the page.
  • Page 397 unknown to Friendly. Rogue APs - If the selected AP shall be treated as rogue AP, simply click Add to change its classification from unknown to Rogue. Delete From Rogue APs - If you want to change the classification of the rogue AP, simply choose the one and click Delete.
  • Page 398: Load Balance

    The parameters configured for Load Balance can help to distribute the traffic for all of the access points registered to Vigor router. Thus, the bandwidth will not be occupied by certain access points. Available settings are explained as follows: Item Description Enable Check the box to enable such function.
  • Page 399: Function Support List

    Upload Limit –Use the drop down list to specify the traffic limit for uploading. Download Limit – Use the drop down list to specify the traffic limit for downloading. Force Overload By Idle Time - When the access point is overload (e.g., Disassociation reaching the limit of station number or limit of network traffic), it will terminate the network connection of the client’s...
  • Page 400: Voip

    Note: This function is used for “V” models. Voice over IP network (VoIP) enables you to use your broadband Internet connection to make toll quality voice calls over the Internet. There are many different call signaling protocols, methods by which VoIP devices can talk to each other.
  • Page 401 The major benefit of this mode is that you don’t have to memorize your friend’s IP address, which might change very frequently if it’s dynamic. Instead of that, you will only have to using dial plan or directly dial your friend’s account name if you are with the same SIP Registrar.
  • Page 402: Dialplan

    This page allows you to set phone book, digit map, call barring, regional settings and PSTN setup for the VoIP function. Click the links on this page to access into next pages for detailed settings. Available settings are explained as follows: Item Description Enable Secure Phone...
  • Page 403 In this section, you can set your VoIP contacts in the “phonebook”. It can help you to make calls quickly and easily by using “speed-dial” Phone Number. There are total 60 index entries in the phonebook for you to store all your friends and family members’ SIP addresses. Loop through and Backup Phone Number will be displayed if you are using Vigor2830Vn for setting the phone book.
  • Page 404 number you choose, using digits 0-9 and * . Display Name The Caller-ID that you want to be displayed on your friend’s screen. This let your friend can easily know who’s calling without memorizing lots of SIP URL Address. SIP URL Enter your friend’s SIP Address.
  • Page 405 For the convenience of user, this page allows users to edit prefix number for the SIP account with adding number, stripping number or replacing number. It is used to help user having a quick and easy way to dial out through VoIP interface. Available settings are explained as follows: Item Description...
  • Page 406 Table Setup web page) as an example, the prefix number of 03 will be replaced by 8863. For example: dial number of “031111111” will be changed to “88631111111” and sent to SIP server. OP Number The front number you type here is the first part of the account number that you want to execute special function (according to the chosen mode) by using the prefix number.
  • Page 407 Click any index number to display the dial plan setup page. Available settings are explained as follows: Item Description Enable Check it to enable this entry. Call Direction Determine the direction for the phone call, IN – incoming call, OUT-outgoing call, IN & OUT – both incoming and outgoing calls.
  • Page 408 For Block Unknown Domain – this function can block incoming calls (through Phone port) from unrecognized domain that is not specified in SIP accounts. Such control also can be done based on preconfigured schedules. For Block IP Address – this function can block incoming calls (through Phone port) coming from IP address.
  • Page 409 This page allows you to process incoming or outgoing phone calls by regional. Default values (common used in most areas) will be shown on this web page. You can change the number based on the region that the router is placed. Available settings are explained as follows: Item Description...
  • Page 410 Ans][Act] answer of the connected phone. Do Not Disturb [Act] Dial the number typed in this field to invoke the function of DND. Do Not Distrub [Deact] Dial the number typed in this field to release the DND function. Hide caller ID [Act] Dial the number typed in this field to make your phone number (ID) not displayed on the display panel of remote end.
  • Page 411: Sip Accounts

    After finishing all the settings here, please click OK to save the configuration. In this section, you set up your own SIP settings. When you apply for an account, your SIP service provider will give you an Account Name or user name, SIP Registrar, Proxy, and Domain name.
  • Page 412 Available settings are explained as follows: Item Description Index Click this link to access into next page for setting SIP account. Profile Display the profile name of the account. Display the domain name or IP address of the SIP registrar Domain/Realm server.
  • Page 413 SIP PING interval The default value is 150 (sec). It is useful for a Nortel server NAT Traversal Support. Click any index link to access into the following page for configuring SIP account. Available settings are explained as follows: Item Description Profile Name Assign a name for this profile for identifying.
  • Page 414 SIP Port Set the port number for sending/receiving SIP message for building a session. The default value is 5060. Your peer must set the same value in his/her Registrar. Domain/Realm Set the domain name or IP address of the SIP Registrar server.
  • Page 415 Call Forwarding There are four options for you to choose. Disable is to close call forwarding function. Always means all the incoming calls will be forwarded into SIP URL without any reason. Busy means the incoming calls will be forwarded into SIP URL only when the local system is busy.
  • Page 416: Phone Settings

    Voice Active Detector This function can detect if the voice on both sides is active or not. If not, the router will do something to save the bandwidth for other using. Click On to invoke this function; click off to close the function. After finishing all the settings here, please click OK to save the configuration.
  • Page 417 change SIP account for each phone port. DTMF Relay – Display DTMF mode that configured in the advanced settings page of Phone Index. Symmetric RTP – Check this box to invoke the function. To make the data transmission going through on both ends of local router and remote router not misleading due to IP lost (for example, sending data from the public IP of remote router to the private IP of local router), you can check this...
  • Page 418 Click the number link for Phone port, you can access into the following page for configuring Phone settings. Available settings are explained as follows: Item Description Hotline Check the box to enable it. Type in the SIP URL in the field for dialing automatically when you pick up the phone set.
  • Page 419 response. Click hook flash to pick up the waiting phone call. Call Transfer Check this box to invoke this function. Click hook flash to initiate another phone call. When the phone call connection succeeds, hang up the phone. The other two sides can communicate, then.
  • Page 420 congestion tone by yourself for VoIP phone. Also, you can specify each field for your necessity. It is recommended for you to use the default settings for VoIP communication. Volume Gain Mic Gain (1-10)/Speaker Gain (1-10) - Adjust the volume of microphone and speaker by entering number from 1- 10.
  • Page 421: Status

    it to digital form then send to the other side; the receiver will generate the tone according to the digital form it receive. This function is very useful when the network traffic congestion occurs and it still can remain the accuracy of DTMF tone. ...
  • Page 422: Wireless Lan(2.4Ghz/5Ghz)

    HANG_UP - Indicates that the connection is not established (busy tone). CONNECTING - Indicates that the user is calling out. WAIT_ANS - Indicates that a connection is launched and waiting for remote user’s answer. ALERTING - Indicates that a call is coming. ACTIVE-Indicates that the VoIP connection is launched.
  • Page 423 In an Infrastructure Mode of wireless network, Vigor wireless router plays a role as an Access Point (AP) connecting to lots of wireless clients or Stations (STA). All the STAs will share the same Internet connection via Vigor wireless router. The General Settings will set up the information of this wireless network, including its SSID as identification, located channel etc.
  • Page 424 In WPA-Personal, a pre-defined key is used for encryption during data transmission. WPA applies Temporal Key Integrity Protocol (TKIP) for data encryption while WPA2 applies AES. The WPA-Enterprise combines not only encryption but also authentication. Since WEP has been proved vulnerable, you may consider using WPA for the most secure connection.
  • Page 425: General Setup

    By clicking the General Settings, a new web page will appear so that you could configure the SSID and the wireless channel. Please refer to the following figure for more information. Available settings are explained as follows: Item Description Enable Wireless LAN Check the box to enable wireless function.
  • Page 426 For 5 GHz: At present, the router can connect to 11a Only, 11n Only (5 GHz), Mixed (11a+11n) stations simultaneously. Simply choose Mixed (11a+11n) mode. In which, 802.11b/g operates on 2.4G band, 802.11a operates on 5G band, and 802.11n operates on either 2.4G or 5G band.
  • Page 427 Hide SSID Check it to prevent from wireless sniffing and make it harder for unauthorized clients or STAs to join your wireless LAN. Depending on the wireless utility, the user may only see the information except SSID or just cannot see any thing about Vigor wireless router while site surveying.
  • Page 428: Security

    This page allows you to set security with different modes for SSID 1, 2, 3 and 4 respectively. After configuring the correct settings, please click OK to save and invoke it. The password (PSK) of default security mode is provided and stated on the label pasted on the bottom of the router.
  • Page 429 Note: You should also set RADIUS Server simultaneously if 802.1x mode is selected. Disable - Turn off the encryption mechanism. WEP-Accepts only WEP clients and the encryption key should be entered in WEP Key. WEP/802.1x Only - Accepts only WEP clients and the encryption key is obtained dynamically from RADIUS server with 802.1X protocol.
  • Page 430: Access Control

    128-Bit - For 128 bits WEP key, either 13 ASCII characters, such as ABCDEFGHIJKLM (or 26 hexadecimal digits leading by 0x, such as 0x4142434445464748494A4B4C4D). All wireless devices must support the same WEP encryption bit size and have the same key. Four keys can be entered here, but only one key can be selected at a time.
  • Page 431: Wps

    can be grouped under SSID 1 and SSID 2 at the same time if you check SSID 1 and SSID 2. MAC Address Filter Display all MAC addresses that are edited before. Client’s MAC Address Manually enter the MAC address of wireless client. Apply SSID After entering the client’s MAC address, check the box of the SSIDs desired to insert this MAC address into their...
  • Page 432  On the side of Vigor2925 series which served as an AP, press WPS button once on the front panel of the router or click Start PBC on web configuration interface. On the side of a station with network card installed, press Start PBC button of network card. ...
  • Page 433 Below shows Wireless LAN>>WPS web page: Available settings are explained as follows: Item Description Enable WPS Check this box to enable WPS setting. WPS Status Display related system information for WPS. If the wireless security (encryption) function of the router is properly configured, you can see ‘Configured’...
  • Page 434: Wds

    WDS means Wireless Distribution System. It is a protocol for connecting two access points (AP) wirelessly. Usually, it can be used for the following application:  Provide bridge traffic between two LANs through the air.  Extend the coverage range of a WLAN. To meet the above requirement, two WDS modes are implemented in Vigor router.
  • Page 435 Bridge mode, packets received from a WDS link will only be forwarded to local wired or wireless hosts. In other words, only Repeater mode can do WDS-to-WDS packet forwarding. In the following examples, hosts connected to Bridge 1 or 3 can communicate with hosts connected to Bridge 2 through WDS links.
  • Page 436 Available settings are explained as follows: Item Description Mode Choose the mode for WDS setting. Disable mode will not invoke any WDS setting. Bridge mode is designed to fulfill the first type of application. Repeater mode is for the second one. Security There are three types for security, Disable, WEP and Pre-shared key.
  • Page 437: Advanced Setting

    This page allows users to set advanced settings such as operation mode, channel bandwidth, guard interval, and aggregation MSDU for wireless data transmission. Available settings are explained as follows: Item Description Operation Mode Mixed Mode – the router can transmit data with the ways supported in both 802.11a/b/g and 802.11n standards.
  • Page 438 Aggregation MSDU combine frames with different Aggregation MSDU can sizes. It is used for improving MAC layer’s performance for some brand’s clients. The default setting is Enable. This option is to define the length of the sync field in an Long Preamble 802.11 packet.
  • Page 439: Wmm Configuration

    WMM is an abbreviation of Wi-Fi Multimedia. It defines the priority levels for four access categories derived from 802.1d (prioritization tabs). The categories are designed with specific types of traffic, voice, video, best effort and low priority data. There are four accessing categories - AC_BE , AC_BK, AC_VI and AC_VO for WMM.
  • Page 440 categories must be smaller; however, the difference between AC_BE and AC_BK categories must be greater. Txop It means transmission opportunity. For WMM categories of AC_VI and AC_VO that need higher priorities in data transmission, please set greater value for them to get highest transmission opportunity.
  • Page 441: Ap Discovery

    Vigor router can scan all regulatory channels and find working APs in the neighborhood. Based on the scanning result, users will know which channel is clean for usage. Also, it can be used to facilitate finding an AP for a WDS link. Notice that during the scanning process (about 5 seconds), no client is allowed to connect to Vigor.
  • Page 442: Station List

    Station List provides the knowledge of connecting wireless clients now along with its status code. There is a code summary below for explanation. For convenient Access Control, you can select a WLAN station and click Add to Access Control below. Available settings are explained as follows: Item Description...
  • Page 443: Ssl Vpn

    An SSL VPN (Secure Sockets Layer virtual private network) is a form of VPN that can be used with a standard Web browser. There are two benefits that SSL VPN provides:  It is not necessary for users to preinstall VPN client software for executing SSL VPN connection.
  • Page 444: Ssl Web Proxy

    Encryption Key Choose the encryption level for the data connection in SSL Algorithm VPN server. After finishing all the settings here, please click OK to save the configuration. SSL Web Proxy will allow the remote users to access the internal web sites over SSL. Each item is explained as follows: Item Description...
  • Page 445: Ssl Application

    Type the address (function variation or IP address) or path of the proxy server. Host IP Address If you type function variation as URL, you have to type corresponding IP address in this filed. Such field must match with URL setting. There are three modes for you to choose.
  • Page 446 To create a new SSL application profile: 1. Click number link under Index filed to set detailed configuration. 2. The following page will appear. Available settings are explained as follows: Item Description Enable Application Check the box to enable such profile. Server Application Name Type a name for such application.
  • Page 447 Samba Application – It allows you to access and control a remote PC through Samba service. IP Address If you choose VNC or RDP, you have to type the IP address for this protocol. Port If you choose VNC or RDP, you have to specify the port used for this protocol.
  • Page 448: User Account

    With SSL VPN, Vigor2925 series let teleworkers have convenient and simple remote access to central site VPN. The teleworkers do not need to install any VPN software manually. From regular web browser, you can establish VPN connection back to your main office even in a guest network or web cafe.
  • Page 449 Available settings are explained as follows: Item Description User account and Enable this account - Check the box to enable this function. Authentication Idle Timeout- If the dial-in user is idle over the limitation of the timer, the router will drop this connection. By default, the Idle Timeout is set to 300 seconds.
  • Page 450 Item Description SSL Tunnel - It allows the remote dial-in user to make an SSL VPN Tunnel connection through Internet, suitable for the application through network accessing (e.g., PPTP/L2TP/IPSec) If you check this box, the function of SSL Tunnel for this account will be activated immediately.
  • Page 451 Item Description IKE Authentication This group of fields is applicable for IPSec Tunnels and L2TP Method with IPSec Policy when you specify the IP address of the remote node. The only exception is Digital Signature (X.509) can be set when you select IPSec tunnel either with or without specify the IP address of the remote node.
  • Page 452: User Group

    There are 10 user group profiles which can be created for authentication. Such profiles will be used by applications such as User Management, VPN and etc. Each item is explained as follows: Item Description Set to Factory Default Click to clear all indexes. Index Display the number link of the profile.
  • Page 453 Item Description Enable Check this box to enable such profile. Group Name Type a name for such profile. The length of the name is limited to 23 characters. Access Authority Specify the authority for such profile. At present, Vigor router allows you to create SSL Web Proxy and SSL Application profiles used for SSL VPN.
  • Page 454: Online User Status

    If you have finished the configuration of SSL Web Proxy (server), users can find out corresponding settings when they access into DrayTek SSL VPN portal interface. Next, users can open SSL VPN>> Online Status to view logging status of SSL VPN.
  • Page 455: Usb Application

    USB storage disk connected on Vigor router can be regarded as a server. By way of Vigor router, clients on LAN can access, write and read data stored in USB storage disk with different applications. After setting the configuration in USB Application, you can type the IP address of the Vigor router and username/password created in USB Application>>USB User Management on the client software.
  • Page 456: Usb User Management

    Item Description General Settings Simultaneous FTP Connections - This field is used to specify the quantity of the FTP sessions. The router allows up to 6 FTP sessions connecting to USB storage disk at one time. Default Charset - At present, Vigor router supports four types of character sets.
  • Page 457 Click index number to access into configuration page. Available settings are explained as follows: Item Description FTP/Samba User Enable – Click this button to activate this profile (account) for FTP service or Samba User service. Later, the user can use the username specified in this page to login into FTP server.
  • Page 458 ON, you cannot type any new folder name in this field. Only “/” can be used in such case. You can click to open the following dialog to add any new folder which can be specified as the Home Folder. Access Rule It determines the authority for such profile.
  • Page 459: File Explorer

    File Explorer offers an easy way for users to view and manage the content of USB storage disk connected on Vigor router. Available settings are explained as follows: Item Description Click this icon to refresh files list. Refresh Click this icon to return to the upper directory. Back Click this icon to add a new folder.
  • Page 460: Usb Device Status

    This page is to monitor the status for the users who accessing into FTP or Samba server (USB storage disk) via the Vigor router. In addition, the status of the USB modem or USB printer connecting to Vigor router can be checked from such page. If you want to remove the storage disk from USB port in router, please click Disconnect USB Disk first.
  • Page 461: Temperature Sensor

    A USB Thermometer is now available that complements your installed DrayTek router installations that will help you monitor the server or data communications room environment and notify you if the server room or data communications room is overheating. During summer in particular, it is important to ensure that your server or data communications equipment are not overheating due to cooling system failures.
  • Page 462: Modem Support List

    Below shows an example of temperature graph: Such page provides the information about the brand name and model name of the USB modems which are supported by Vigor router. Vigor2925 Series User’s Guide...
  • Page 463: System Maintenance

    For the system setup, there are several items that you have to know the way of configuration: System Status, TR-069, Administrator Password, User Password, Login Page Greeting, Configuration Backup, Syslog /Mail Alert, Time and Date, Management, Reboot System, Firmware Upgrade and Activation. Below shows the menu items for System Maintenance.
  • Page 464 Available settings are explained as follows: Item Description Model Name Display the model name of the router. Firmware Version Display the firmware version of the router. Build Date/Time Display the date and time of the current firmware build. MAC Address - Display the MAC address of the LAN Interface.
  • Page 465: 453

    This device supports TR-069 standard. It is very convenient for an administrator to manage a Auto Configuration Server, e.g., TR-069 device through an VigorACS. Available settings are explained as follows: Item Description ACS Server On Choose the interface for the router connecting to ACS server.
  • Page 466: Administrator Password

    click Disable to close the mechanism of notification. STUN Settings The default is Disable. If you click Enable, please type the relational settings listed below: Server IP – Type the IP address of the STUN server. Server Port – Type the port number of the STUN server. Minimum Keep Alive Period –...
  • Page 467 Available settings are explained as follows: Item Description Administrator Password Old Password - Type in the old password. The factory default setting for password is “admin”. New Password -Type in new password in this field. The length of the password is limited to 23 characters. Confirm Password -Type in the new password again.
  • Page 468: User Password

    This page allows you to set new password for user operation. Available settings are explained as follows: Item Description After checking this box, you can access into the web user Enable User Mode for interface with the password typed here for simple web simple web configuration configuration.
  • Page 469 3. The following screen will appear. Simply click OK. 4. Log out Vigor router web user interface by clicking the Logout button. 5. The following window will be open to ask for username and password. Type the new user password in the filed of Password and click Login. Vigor2925 Series User’s Guide...
  • Page 470 6. The main screen with User Mode will be shown as follows. Settings to be configured in User Mode will be less than settings in Admin Mode. Only basic configuration settings will be available in User Mode. Note: Setting in User Mode can be configured as same as in Admin Mode. Vigor2925 Series User’s Guide...
  • Page 471: Login Page Title

    Check this box to enable the login customization function. Login Page Title Type a brief description (e.g., Welcome to DrayTek) which will be shown on the heading of the login dialog. Type words or sentences here. It will be displayed for Welcome Message and bulletin message.
  • Page 472 Below shows an example of login customization with the information typed in Login Description and Bulletin. Vigor2925 Series User’s Guide...
  • Page 473: Configuration Backup

    Follow the steps below to backup your configuration. Go to System Maintenance >> Configuration Backup. The following windows will be popped-up, as shown below. Click Backup button to get into the following dialog. Click Save button to open another dialog for saving configuration as a file. In Save As dialog, the default filename is config.cfg.
  • Page 474 Click Save button, the configuration will download automatically to your computer as a file named config.cfg. The above example is using Windows platform for demonstrating examples. The Mac or Linux platform will appear different windows, but the backup function is still available. Note: Backup for Certification must be done independently.
  • Page 475: Syslog/Mail Alert

    SysLog function is provided for users to monitor router. There is no bother to directly get into the Web user interface of the router or borrow debug equipments. Available settings are explained as follows: Item Description SysLog Access Setup Enable - Check Enable to activate function of syslog. Syslog Save to –...
  • Page 476 AlertLog Setup Check Enable to activate function of alert log. AlertLog Port - Type the port number for alert log. The default setting is 514. Mail Alert Setup Check Enable to activate function of mail alert. Send a test e-mail - Make a simple test for the e-mail address specified in this page.
  • Page 477 Vigor2925 Series User’s Guide...
  • Page 478: Time And Date

    It allows you to specify where the time of the router should be inquired from. Available settings are explained as follows: Item Description Current System Time Click Inquire Time to get the current time. Use Browser Time Select this option to use the browser time from the remote administrator PC host as router’s system time.
  • Page 479: Snmp

    This page allows you to configure settings for SNMP and SNMPV3 services. The SNMPv3 is more secure than SNMP through the encryption method (support AES and DES) and authentication method (support MD5 and SHA) for the management needs. Available settings are explained as follows: Item Description Enable SNMP Agent...
  • Page 480 Notification Host IP Set the IPv6 address of the host that will receive the trap (IPv6) community. Trap Timeout The default setting is 10 seconds. Check it to enable this function. Enable SNMPV3 Agent USM User USM means user-based security mode. Type a username which will be used for authentication.
  • Page 481: Management

    This page allows you to manage the settings for Internet/LAN Access Control, Access List from Internet, Management Port Setup, and CVM Access Control. The management pages for IPv4 and IPv6 protocols are different. Available settings are explained as follows: Item Description Router Name Type in the router name provided by ISP.
  • Page 482 The web user interface will be open until you click the Logout icon manually. Internet Access Control Allow management from the Internet - Enable the checkbox to allow system administrators to login from the Internet. There are several servers provided by the system to allow you managing the router from Internet.
  • Page 483 Available settings are explained as follows: Item Description Management Access Allow management from the Internet - Enable the Control checkbox to allow system administrators to login from the Internet. There are several servers provided by the system to allow you managing the router from Internet. Check the box(es) to specify.
  • Page 484: Reboot System

    The Web user interface may be used to restart your router. Click Reboot System from System Maintenance to open the following page. Index (1-15) in Schedule Setup - You can type in four sets of time schedule for performing system reboot. All the schedules can be set previously in Applications >> Schedule web page and you can use the number that you have set in that web page.
  • Page 485: Firmware Upgrade

    Note that this example is running over Windows OS (Operating System). Download the newest firmware from DrayTek's web site or FTP site. The DrayTek web site is www.DrayTek.com (or local DrayTek's web site) and FTP site is ftp.DrayTek.com.
  • Page 486: Activation

    After you have finished the setting profiles for WCF (refer to Web Content Filter Profile), it is the time to activate the mechanism for your computer. Click System Maintenance>>Activation to open the following page for accessing http://myvigor.draytek.com. Available settings are explained as follows: Item...
  • Page 487: Diagnostics

    Below shows the successful activation of Web Content Filter: Diagnostic Tools provide a useful way to view or diagnose the status of your Vigor router. Below shows the menu items for Diagnostics. Vigor2925 Series User’s Guide...
  • Page 488: Dial-Out Triggering

    Click Diagnostics and click Dial-out Triggering to open the web page. The internet connection (e.g., PPPoE) is triggered by a package sending from the source IP address. Available settings are explained as follows: Item Description Decoded Format It shows the source IP address (local), destination IP (remote) address, the protocol and length of the package.
  • Page 489: Routing Table

    Click Diagnostics and click Routing Table to open the web page. Available settings are explained as follows: Item Description Refresh Click it to reload the page. Vigor2925 Series User’s Guide...
  • Page 490: Arp Cache Table

    Click Diagnostics and click ARP Cache Table to view the content of the ARP (Address Resolution Protocol) cache held in the router. The table shows a mapping between an Ethernet hardware address (MAC Address) and an IP address. Available settings are explained as follows: Item Description Refresh...
  • Page 491: Dhcp Table

    The facility provides information on IP address assignments. This information is helpful in diagnosing network problems, such as IP address conflicts, etc. Click Diagnostics and click DHCP Table to open the web page. Available settings are explained as follows: Item Description Index It displays the connection item number.
  • Page 492: Nat Sessions Table

    Click Diagnostics and click NAT Sessions Table to open the list page. Available settings are explained as follows: Item Description Private IP:Port It indicates the source IP address and port of local PC. #Pseudo Port It indicates the temporary port of the router used for NAT. Peer IP:Port It indicates the destination IP address and port of remote host.
  • Page 493: Ping Diagnosis

    Click Diagnostics and click Ping Diagnosis to pen the web page. Available settings are explained as follows: Item Description IPV4 /IPV6 Choose the interface for such function. Ping through Use the drop down list to choose the WAN interface that you want to ping through or choose Unspecified to be determined by the router automatically.
  • Page 494: Data Flow Monitor

    Ping IPv6 Address Type the IPv6 address that you want to ping. Click this button to start the ping work. The result will be displayed on the screen. Click this link to remove the result on the window. Clear This page displays the running procedure for the IP address monitored and refreshes the data in an interval of several seconds.
  • Page 495 Available settings are explained as follows: Item Description Enable Data Flow Check this box to enable this function. Monitor Refresh Seconds Use the drop down list to choose the time interval of refreshing data flow that will be done by the system automatically.
  • Page 496: Traffic Graph

    Click Diagnostics and click Traffic Graph to pen the web page. Choose WAN1/WAN2/WAN3/WAN4 Bandwidth, Sessions, daily or weekly for viewing different traffic graph. Click Reset to zero the accumulated RX/TX (received and transmitted) data of WAN. Click Refresh to renew the graph at any time. The horizontal axis represents time.
  • Page 497: Trace Route

    Click Diagnostics and click Trace Route to open the web page. This page allows you to trace the routes from router to the host. Simply type the IP address of the host in the box and click Run. The result of route trace will be shown on the screen. Available settings are explained as follows: Item Description...
  • Page 498: Syslog Explorer

    Protocol Use the drop down list to choose the protocol that you want to ping through. Host/IP Address It indicates the IP address of the host. It indicates the IPv6 address of the host. Trace Host/IP Address Click this button to start route tracing work. Clear Click this link to remove the result on the window.
  • Page 499: Ipv6 Tspc Status

    Stop record when fulls – when the capacity of syslog is full, the system will stop recording. Always record the new event – only the newest events will be recorded by the system. Time Display the time of the event occurred. Message Display the information for each event.
  • Page 500: External Devices

    You can change the device name if required or remove the information for off-line device whenever you want. When you finished the configuration, click OK to save it. Note: Only DrayTek products can be detected by this function. Vigor2925 Series User’s Guide...
  • Page 501: Trouble Shooting

    This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow sections below to check your basic installation status stage by stage.  Checking if the hardware status is OK or not. ...
  • Page 502 The example is based on Windows XP. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.DrayTek.com. Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties.
  • Page 503 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor2925 Series User’s Guide...
  • Page 504: Pinging The Router From Your Computer

    The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing is that the computer will receive a reply from 192.168.1.1. If not, please check the IP address of your computer.
  • Page 505: Checking If The Isp Settings Are Ok Or Not

    PIN code and try again. If it still fails, it might be the compliance problem of system. Please open DrayTek Syslog Tool to capture the connection information (WAN Log) and send the page (similar to the following graphic) to the service center of DrayTek.
  • Page 506: Backing To Factory Default Setting If Necessary

    Please connect your Notebook with 3G USB Modem to test the connection speed to verify if the problem is caused by Vigor2925. In addition, please refer to the manual of 3G USB Modem for LED Status to make sure if the modem connects to Internet via HSDPA mode. If you want to use the modem indoors, please put it on the place near the window to obtain better signal receiving.
  • Page 507: Contacting Your Dealer

    After restore the factory default setting, you can configure the settings for the router again to fit your personal request. If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@DrayTek.com. Vigor2925 Series User’s Guide...
