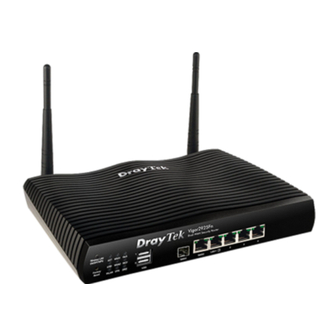

Vigor2925 Series
Dual-WAN Security Router

Quick Start Guide

Version:4.0
Firmware Version: V3.8.2.1
(For future update, please visit DrayTek web site)
Date: November 4, 2015
ii

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor2925 and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor2925

Summary of Contents for Draytek Vigor2925

  • Page 1: Quick Start Guide

    Vigor2925 Series Dual-WAN Security Router Quick Start Guide Version:4.0 Firmware Version: V3.8.2.1 (For future update, please visit DrayTek web site) Date: November 4, 2015...
  • Page 2 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.

  • Page 3: European Community Declarations

    County, Taiwan 303 Product: Vigor2925 Series DrayTek Corp. declares that Vigor2925 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 4 LTE network interface module Available bands for the LTE network interface module #1 / module #2 supported by Vigor2925 are listed in the following table: LTE bands Module #1 LTE bands: 3, 7, 8 and 20 800MHz (band 20), 900MHz (band 8), 1800MHz (band 3) and 2600 MHz...

  • Page 5: Table Of Contents

    1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 3.1 Vigor2925 / Vigor2925F / Vigor2925L ..................3 3.2 Vigor2925ac / Vigor2925n-plus / Vigor2925n / Vigor2925Fn / Vigor2925Ln ......7 3.3 Vigor2925Vac / Vigor2925Vn-plus ................... 13 4. Hardware Installation ..................15 5.

  • Page 6: Introduction

    Vigor2925 series is a broadband router which integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth. By adopting hardware-based VPN platform and hardware encryption of AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router increases the performance of VPN greatly and offers several protocols (such as IPSec/PPTP/L2TP) with up to 50 VPN tunnels.

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router Quick Start Guide RJ-45 Cat-5 Ethernet Cable Phone Adapter (“V” models) Antenna x 2 (for “n” model) Antenna + Socket (“L” models) Antenna x 3 (for “n-plus”, “ac”...

  • Page 8: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. WAN1~ Internet connection is ready. WAN2 Internet connection is not ready. Blinking The data is transmitting. The QoS function is active. USB1~USB2/ USB device is connected and ready for use. Blinking The data is transmitting.
  • Page 9 Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps. Left LED The port is connected. LAN1~LAN5 (Green) The port is disconnected. Blinking The data is transmitting. Right LED The port is connected with 1000Mbps. (Green) The port is connected with 10/100Mbps.
  • Page 10 Internet. LAN1~LAN5 Connecters for local network devices. Connector for a power cord. ON/OFF Power Switch. SIM Card Slot Connector for a SIM card. Both magnetic antennas must be installed on the antenna socket before connecting to Vigor router. Antenna Socket There are two mounting holes for installing antennas with sockets on Vigor router.
  • Page 11 While installing the SIM card into the card slot, note that back plate of the SIM card slot must be removed first and the direction of card notch must be on the left side.

  • Page 12: Vigor2925Ac / Vigor2925N-Plus / Vigor2925N / Vigor2925Fn / Vigor2925Ln

    Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. WAN1~ Internet connection is ready. WAN2 Internet connection is not ready. Blinking The data is transmitting. The QoS function is active. USB device is connected and ready for use. Blinking The data is transmitting.
  • Page 13 2.4G/5G/ 2.4G/5G: Wireless access point with bandwidth of WLAN 2.4GHz/5GHz is ready. WLAN: Wireless access point is ready. Blinking It will blink slowly while wireless traffic goes through. ACT and WLAN LEDs blink quickly and simultaneously when WPS is working, and will return to normal condition after two minutes.
  • Page 14 Switch on Rear Side (For Vigor2925Ln only) Interface Description Wireless LAN For Vigor2925n/Vigor2925Fn : ON/OFF/WPS  Press the button and release it within 2 seconds. When the wireless function is ready, the green LED will be on.  Press the button and release it within 2 seconds to turn off the WLAN function.
  • Page 15  2.4G (Off) and 5G (Off) – pressed and released the button three times. When WPS function is enabled by web user interface, press this button for more than 2 seconds to wait for client’s device making network connection through WPS. Factory Reset Restore the default settings.
  • Page 16 There are two mounting holes for installing antennas with sockets on Vigor router. Please install them as shown below. Major Signal Transmitted Hole SIM Card Slot Note, if only one antenna shall be installed, please use the mounting hole (major signal transmitted hole) near to the SIM card slot.
  • Page 17 There are two types of antennas provided for Vigor2925Ln, which must be installed in different locations carefully and correctly. Wrong installation might cause bad signal of wireless connection. Therefore, pay attention to the installation of antennas by referring to the following illustration. Holes for Antennas with Socket Holes for Antennas...

  • Page 18: Vigor2925Vac / Vigor2925Vn-Plus

    Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. WAN1~ Internet connection is ready. WAN2 Internet connection is not ready. Blinking The data is transmitting. Line A PSTN phone call comes (in and out). However, when the phone call is disconnected, the LED will be off.
  • Page 19 Interface Description Wireless LAN Wireless band will be switched /changed according to the ON/OFF/WPS button pressed and released. For example,  2.4G (On) and 5G (On) – in default.  2.4G (Off) and 5G (On) – pressed and released the button once.
  • Page 20 This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router (taking Vigor2925n for example), you have to connect your devices correctly. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45).

  • Page 21: Hardware Installation

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 22 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
  • Page 23 On the next page as shown below, please select the WAN interface that you use. If Ethernet interface is used, please choose WAN1/WAN2; if 3G/4G USB modem is used, please choose WAN3/WAN4; if LTE SIM card is used, please choose LTE. Then click Next for next step. WAN1, WAN2, WAN3/LTE and WAN4 will bring up different configuration page.

  • Page 24: For Wan1/Wan2 (Ethernet)

    WAN1/WAN2 is dedicated to physical mode in Ethernet. If you choose WAN1/WAN2, please specify physical type. Then, click Next. On the next page as shown below, please select the appropriate Internet access type according to the information from your ISP. For example, you should select PPPoE mode if the ISP provides you PPPoE interface.
  • Page 25 Please manually enter the Username/Password provided by your ISP. Click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 26 Choose WAN1/WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click PPTP/L2TP as the Internet Access Type. Then click Next to continue.
  • Page 27 Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 28 Choose WAN1/WAN2 as the WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click Static IP as the Internet Access type. Simply click Next to continue.
  • Page 29 Please type in the IP address information originally provided by your ISP. Then click Next for next step. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 30 Choose WAN1/WAN2 as WAN Interface and click the Next button. The following page will be open for you to specify Internet Access Type. Click DHCP as the Internet Access type. Simply click Next to continue.
  • Page 31 After finished the settings above, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 32: For Wan3/Wan4 (Usb)

    Choose WAN3/WAN4 as WAN Interface. Then, click Next for getting the following page.
  • Page 33 Please type in required information originally provided by your ISP. Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 34: For Lte

    Choose LTE as WAN Interface. Then, click Next for getting the following page.
  • Page 35 Please type in required information originally provided by your ISP. Then, click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 36: Customer Service

    If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Web registration is preferred. You can register your Vigor router via http://www.draytek.com.

This manual is also suitable for:
