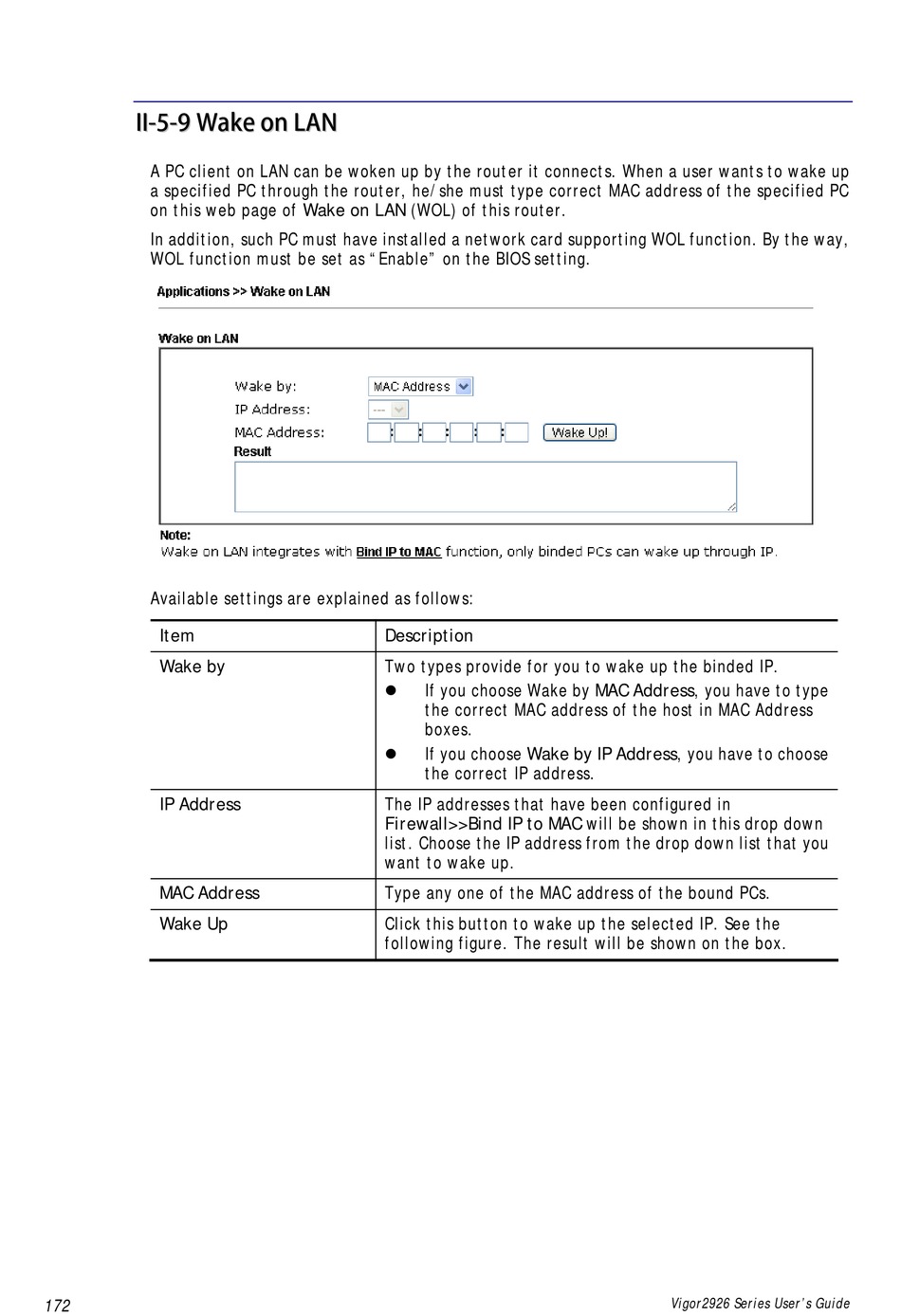

A PC client on LAN can be woken up by the router it connects. When a user wants to wake up
a specified PC through the router, he/she must type correct MAC address of the specified PC
on this web page of Wake on LAN (WOL) of this router.
In addition, such PC must have installed a network card supporting WOL function. By the way,
WOL function must be set as "Enable" on the BIOS setting.
Available settings are explained as follows:
Item
Wake by
IP Address
MAC Address
Wake Up
172
a k e o n L A N
a k e o n L A N
Description
Two types provide for you to wake up the binded IP.


The IP addresses that have been configured in
Firewall>>Bind IP to MAC will be shown in this drop down
list. Choose the IP address from the drop down list that you
want to wake up.
Type any one of the MAC address of the bound PCs.
Click this button to wake up the selected IP. See the
following figure. The result will be shown on the box.
If you choose Wake by MAC Address, you have to type
the correct MAC address of the host in MAC Address
boxes.
If you choose Wake by IP Address, you have to choose
the correct IP address.
