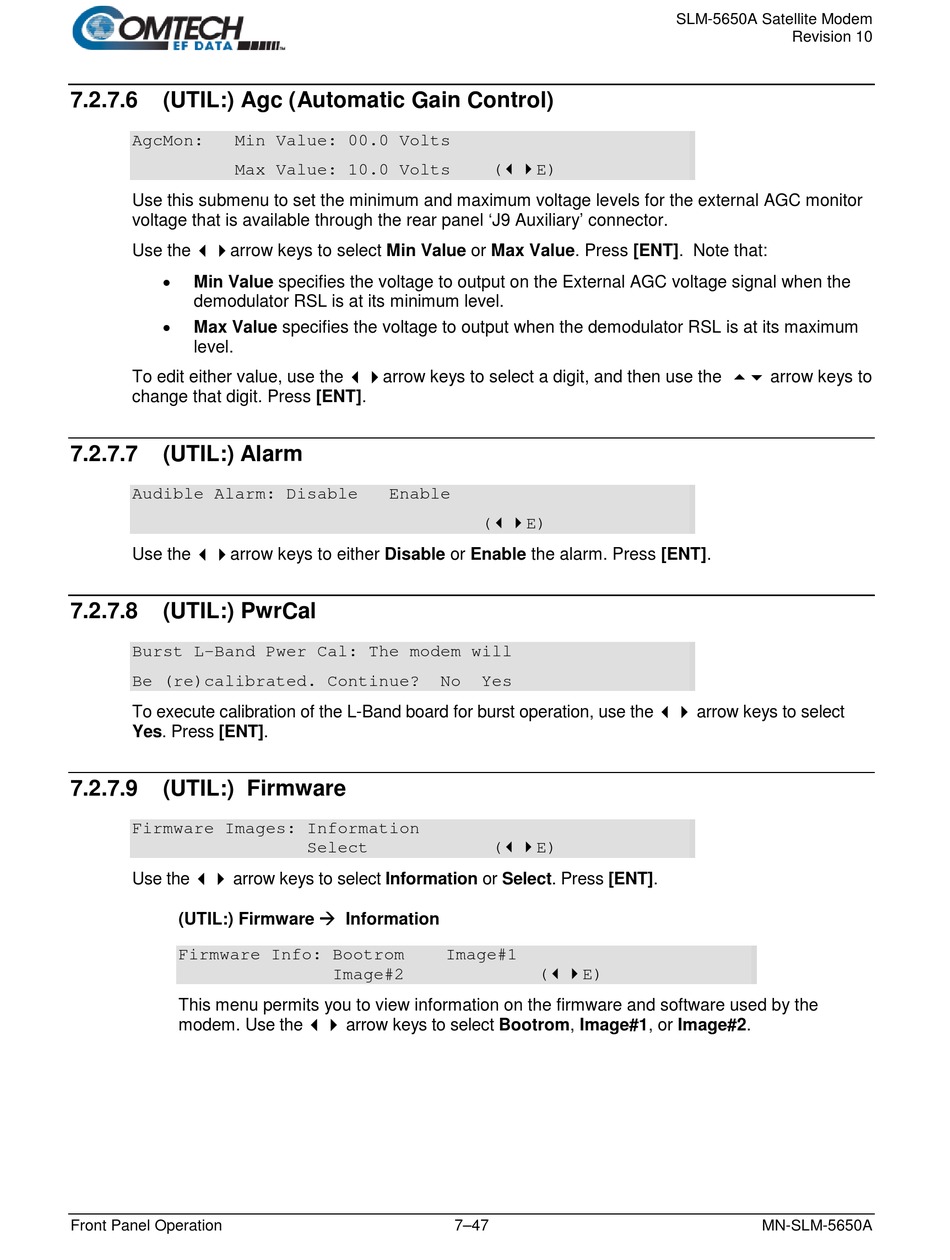

7.2.7.6
(UTIL:) Agc (Automatic Gain Control)
AgcMon:
Min Value: 00.0 Volts
Max Value: 10.0 Volts
Use this submenu to set the minimum and maximum voltage levels for the external AGC monitor
voltage that is available through the rear panel 'J9 Auxiliary' connector.
Use the arrow keys to select Min Value or Max Value. Press [ENT]. Note that:
•
Min Value specifies the voltage to output on the External AGC voltage signal when the
demodulator RSL is at its minimum level.
•
Max Value specifies the voltage to output when the demodulator RSL is at its maximum
level.
To edit either value, use the arrow keys to select a digit, and then use the arrow keys to
change that digit. Press [ENT].
7.2.7.7
(UTIL:) Alarm
Audible Alarm: Disable
Use the arrow keys to either Disable or Enable the alarm. Press [ENT].
7.2.7.8
(UTIL:) PwrCal
Burst L-Band Pwer Cal: The modem will
Be (re)calibrated. Continue?
To execute calibration of the L-Band board for burst operation, use the arrow keys to select
Yes. Press [ENT].
7.2.7.9
(UTIL:) Firmware
Firmware Images: Information
Use the arrow keys to select Information or Select. Press [ENT].
(UTIL:) Firmware Information
Firmware Info: Bootrom
This menu permits you to view information on the firmware and software used by the
modem. Use the arrow keys to select Bootrom, Image#1, or Image#2.
Front Panel Operation
Enable
(E)
No
Yes
Select
Image#1
Image#2
7–47
(E)
(E)
(E)
SLM-5650A Satellite Modem
Revision 10
MN-SLM-5650A
