9.3.4.2

Stats | Event Log

Use this page to review a scrollable record of the unit's stored events.
Modem Event Log
•
(Event #) Date | Time: The first three columns display the event by the order in which it
is logged (1, 2, 3, etc.) along with the date and time the event is recorded.
•
Type: The event is identified by its type in this column. The four event types are Info,
Unit, Tx Traffic, and Rx Traffic.
•
Code: Click on a hyperlinked fault code to display a page that describes the events that
have been logged.
Click [Refresh] to update the display with the most recently logged events. Click [Clear Log] to
clear the log of all visible events. Once the log is cleared, the next time [Refresh] is clicked any
new events are logged and numbered beginning with '1'.
9.3.4.3

Stats | Statistics

Use this page to review a scrollable record of the unit's stored statistics.
Base Modem HTTP Interface Operation

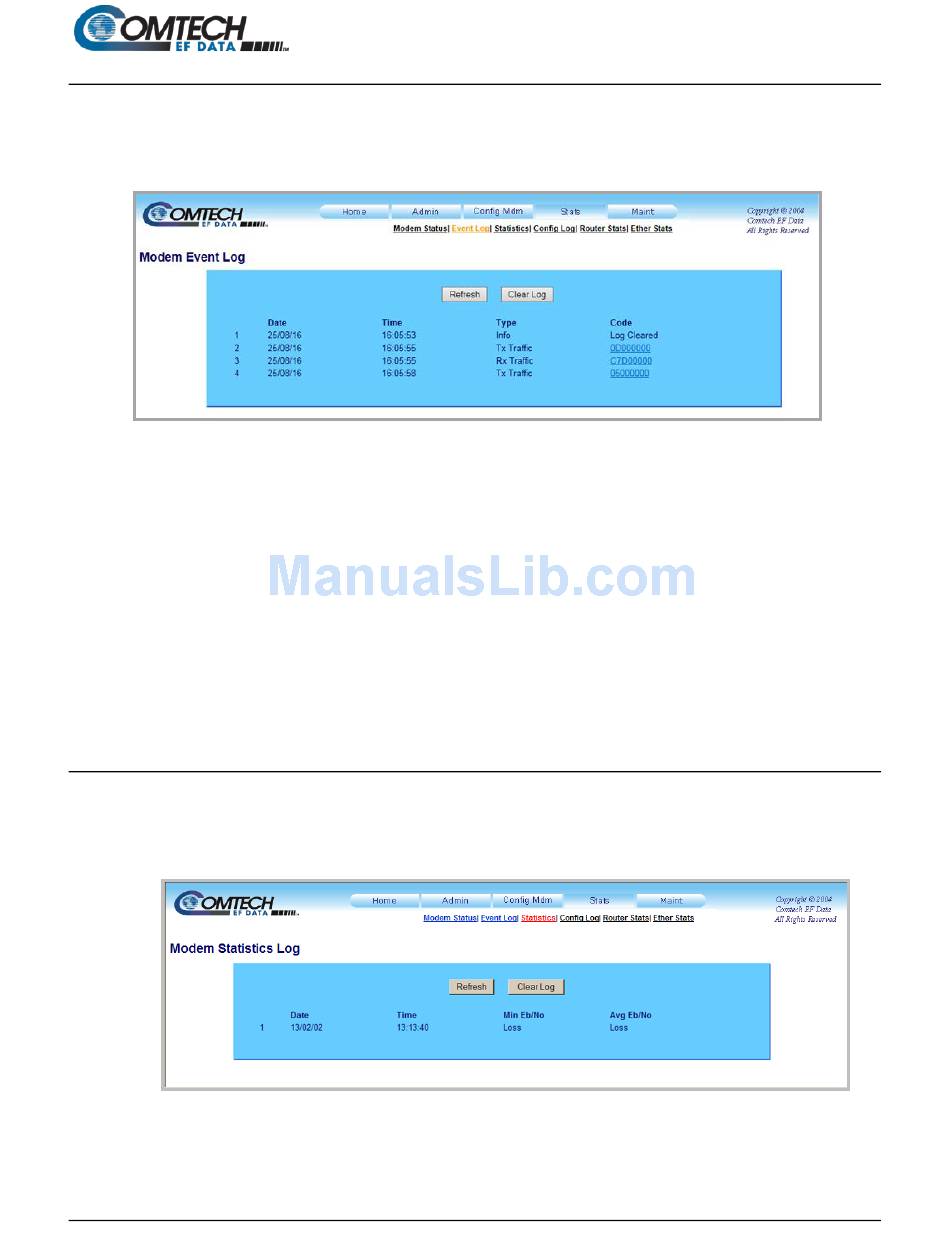

Figure 9-13. Stats | Event Log Page

Figure 9-14. Stats | Statistics Page
