4.1.4

USB Cable Connections

A Universal Serial Bus (USB) connection is used as a bus-type communications or power
interface between peripheral devices. The connector pair (Figure 4-4) features a plug (male side)
coupled to its mating receptacle (female side).
Connection Instructions:
Type 'A' Connections – Slide the plug firmly into the chassis receptacle.
Type 'B' Connections – Orient the plug to the receptacle and push in firmly. The Type 'B' cable
plug and chassis receptacle each feature a D-shaped profile that interlock to ensure proper
orientation and connector seating. By design, it is impossible to incorrectly insert the plug into the
receptacle.
Rear Panel Connectors

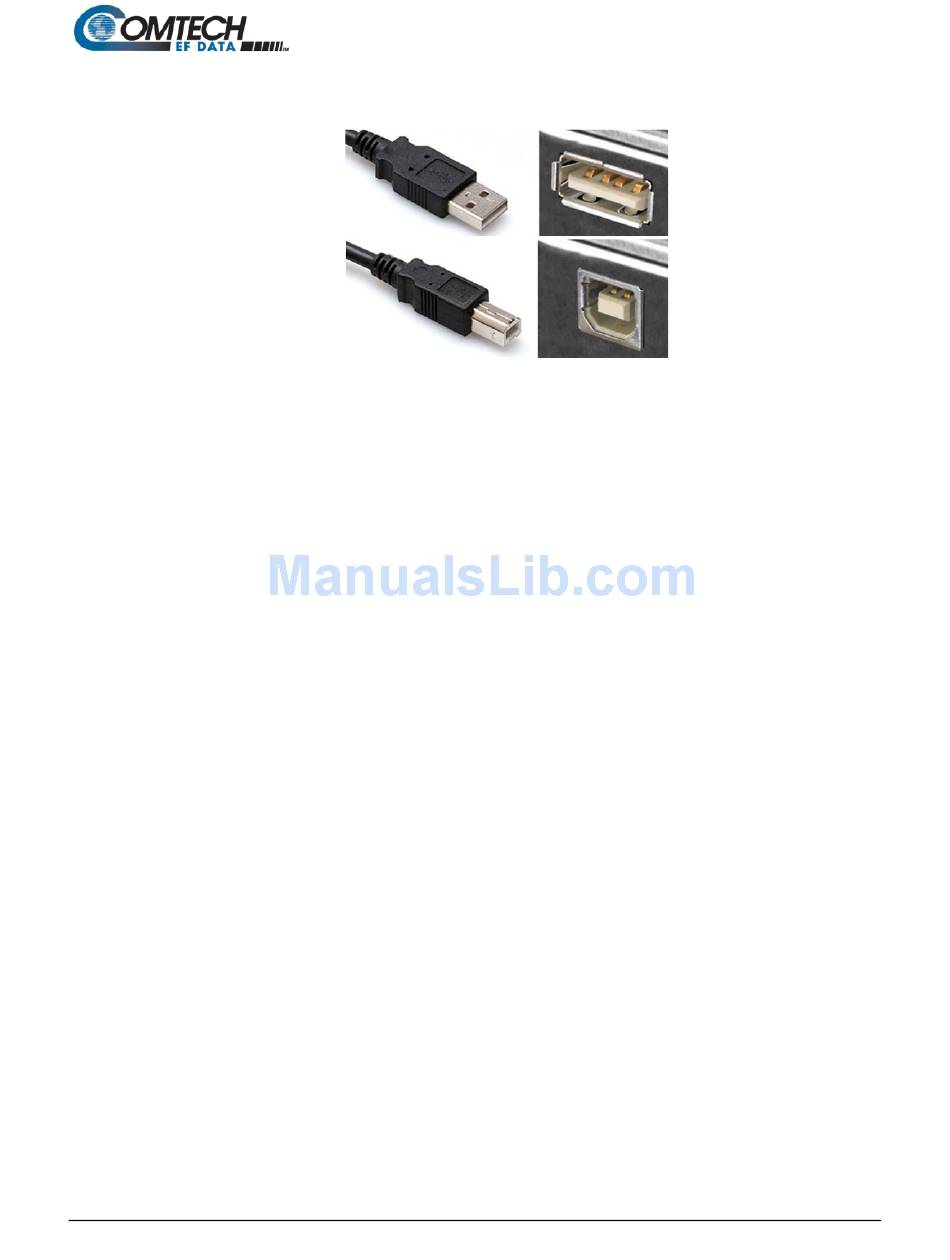

(TOP) Type 'A' USB Plug and Receptacle
(BOTTOM) Type 'B' USB Plug and Receptacle

Figure 4-4. USB Connector Examples

4–5
