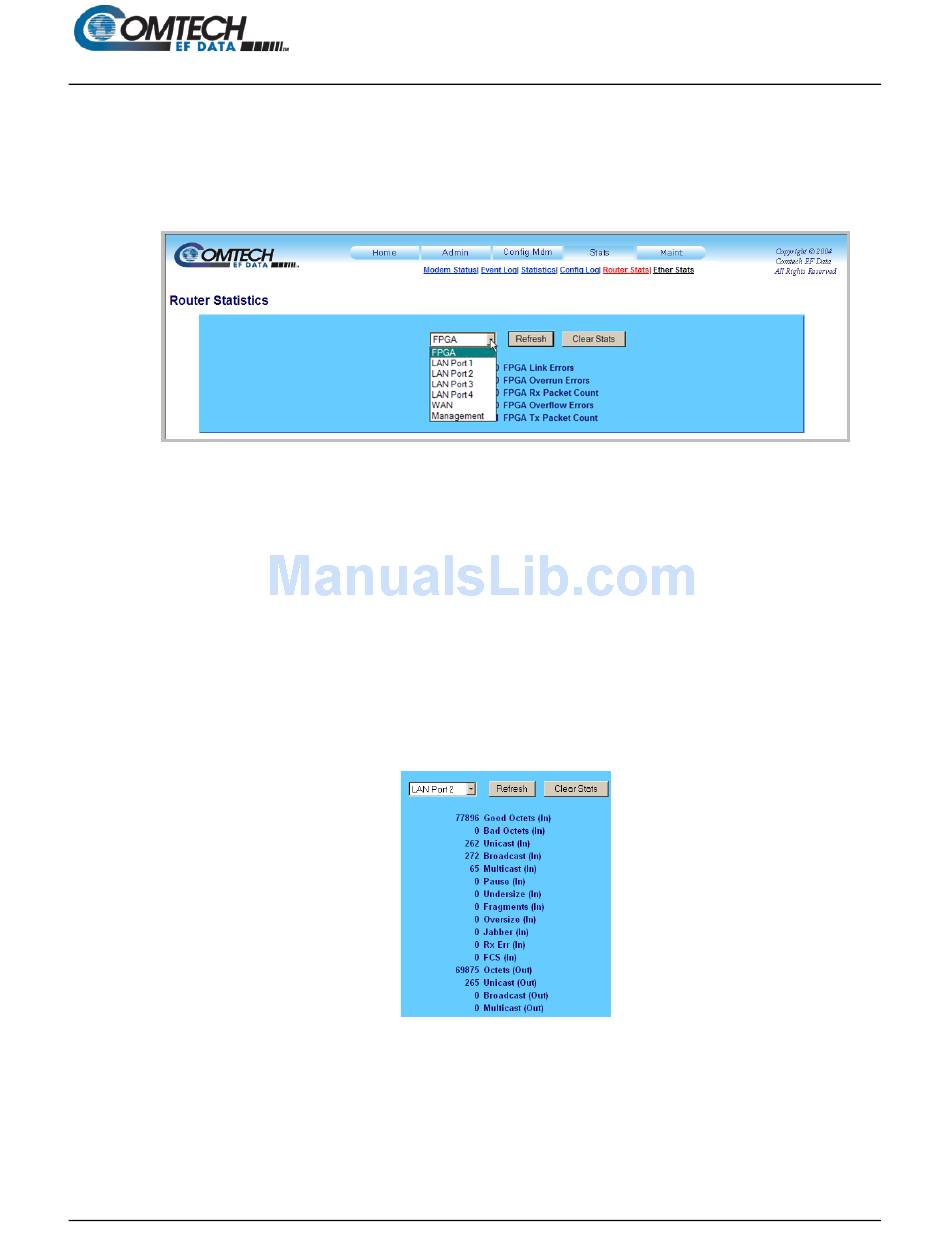

Stats | Router Stats; Figure 9-16. Stats | Router Stats Page; Figure 9-17. Router Statistics Drop-Down List - Comtech EF Data SLM-5650A Installation And Operation Manual

Hide thumbs Also See for SLM-5650A:

Table of Contents

Stats | Router Stats

Use this read-only page to view statistics for the modem FPGA, and the Ethernet operating

statistics for the modem WAN ports, M&C ports and, when the optional Network Processor (NP)

Interface is installed, the NP Interface's LAN ports 1 through 4.

Router Statistics

Use the drop-down list to select a page to query. Click [Refresh] to display the attribute statistics

for that feature.

In the example shown in Figure 9-17, the LAN Port 2 (on the optional NP Interface) queries, and

then displays, the most recent statistics for NP Interface LAN Port 2.

Click [Clear Stats] to reset the statistics counts for the visible display.

See Table 9-1 to review the seven selectable pages of statistics available via the 'Stats | Router

Stats' page drop-down list.

Base Modem HTTP Interface Operation

SLM-5650A Satellite Modem

MN-SLM-5650A
