E.7.5.7.4 Stats | WAN
Clear/Refresh WAN Statistics
Click [Clear] to delete all statistics. Click [Refresh] to update the page with the most recent
statistics.
WAN Tx Frames
Column
Network Layer
Data Link Layer
Satellite Layer
WAN Tx Errors
Column
Network Layer
Data Link Layer
Satellite Layer
WAN Rx Frames
Column
Network Layer
Data Link Layer
Satellite Layer
Appendix E

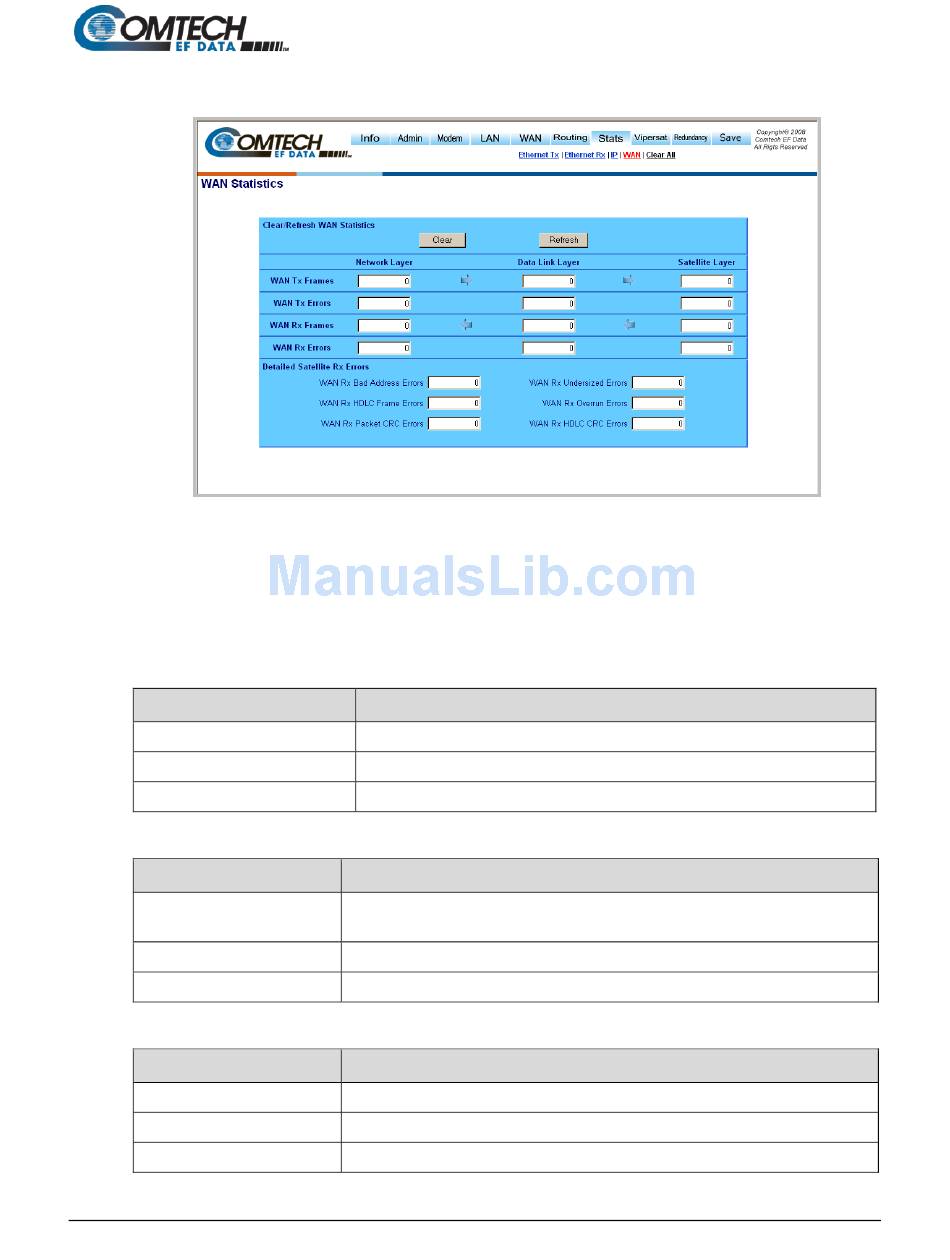

Figure E-33. Stats | WAN Statistics Page
This is the total packets sent to data link layer.
This is the total frames sent to satellite layer.
This is the total frames sent over satellite.
This counter increments if the packets cannot traverse from WAN_DLL_OUT
component to ETH_TX-3 component to due to internal resource scarcity.
This is the total data link layer Tx errors.
This is the total satellite layer Tx errors.
This is the total packets received from data link layer.
This is the total frames received from satellite layer.
This is the total frames received over the satellite.
