Remove a PCIe Riser From PCIe Slot 1 or 2

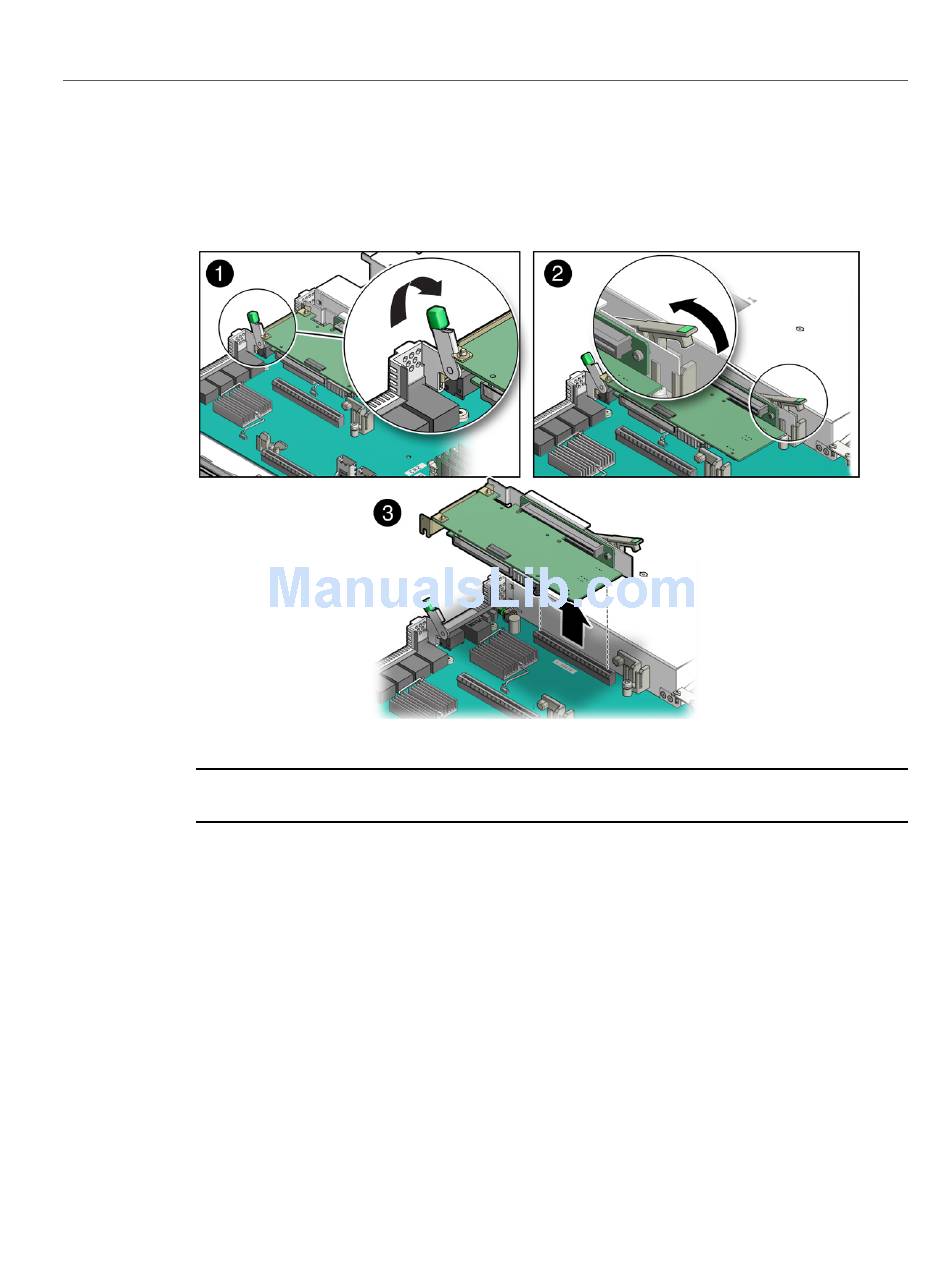

4. Lift the green-tabbed latch on the rear of the server chassis next to the
applicable PCIe slot to release the rear bracket on the PCIe card (1).
Note -
filler panel.
5. Lift the green-tabbed riser release lever on the PCIe riser with one hand and use
your other hand to remove the riser from the motherboard connector (2, 3).
6. If there is a PCIe card installed in the riser, place the riser on an antistatic mat
and note the slot in which the PCIe riser was originally installed. Otherwise, set
the PCIe riser aside.
Related Information
"Install a PCIe Riser Into PCIe Slot 1 or 2" on page 91
■
