Remove the Cable Management Arm
Note - Once you have disconnected connector D, you must not allow the CMA to hang under
its own weight. Throughout the remainder of this procedure, the CMA must be supported until
all the remaining connectors are disconnected and the CMA can be placed on a flat surface.
No.
1
2

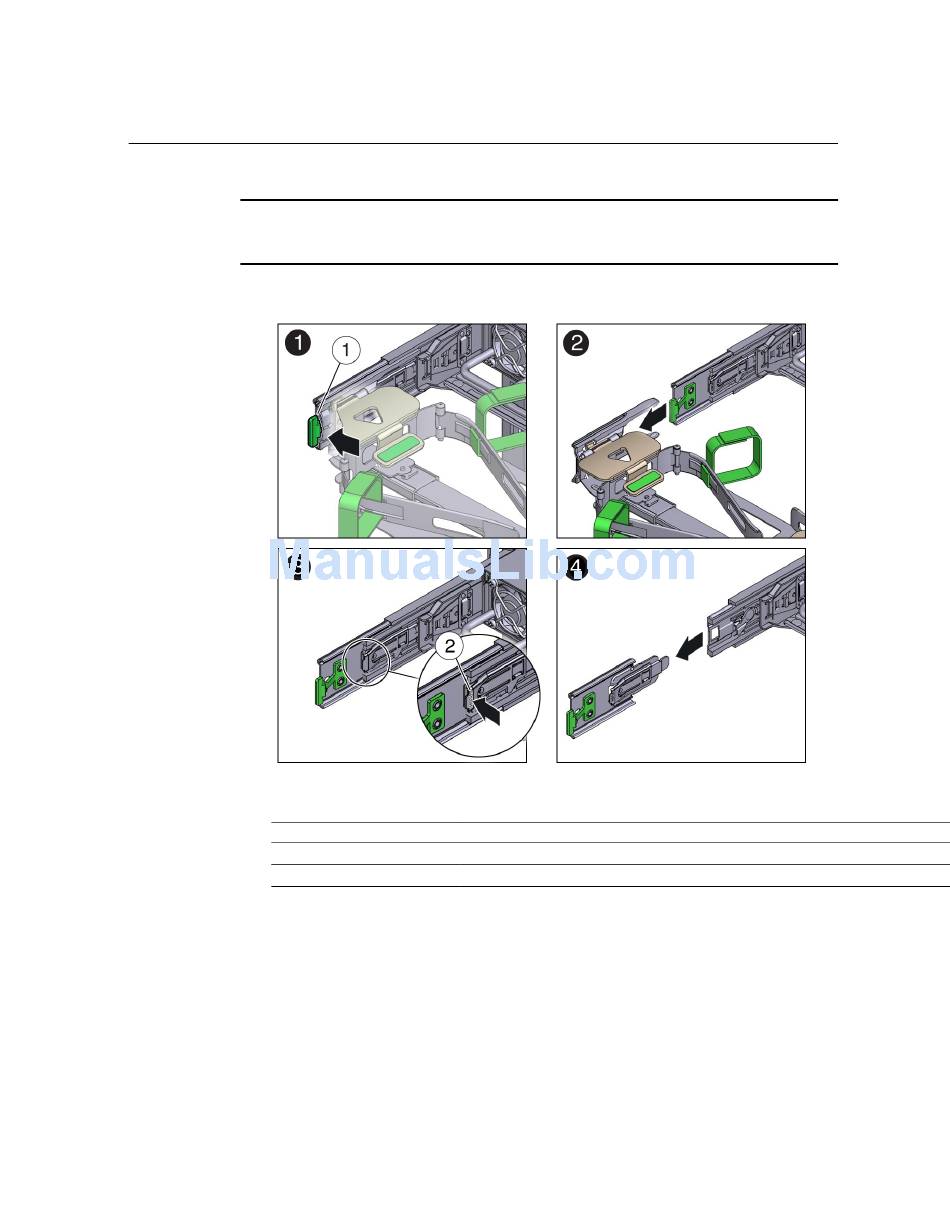

b. Use your right hand to support the CMA and use your left thumb to push in
(toward the left) on the slide rail latching bracket release tab labeled PUSH
(callout 2), and pull the latching bracket out of the left slide rail and put it
aside (frames 3 and 4).
44 SPARC S7-2 Server Service Manual • March 2017
Description
Connector D release tab (green)
Slide rail latching bracket release tab (labeled PUSH)
