Remove a PCIe Card From PCIe Slot 1 or 2

Related Information
"Rear Panel Components" on page 13
■
Remove a PCIe Card From PCIe Slot 1 or 2
This is a cold-service procedure that can be performed by a customer. Power down the server
completely before performing this procedure.
1. Remove the PCIe riser from the server.
See "Remove the PCIe Riser From PCIe Slots 3 and 4" on page

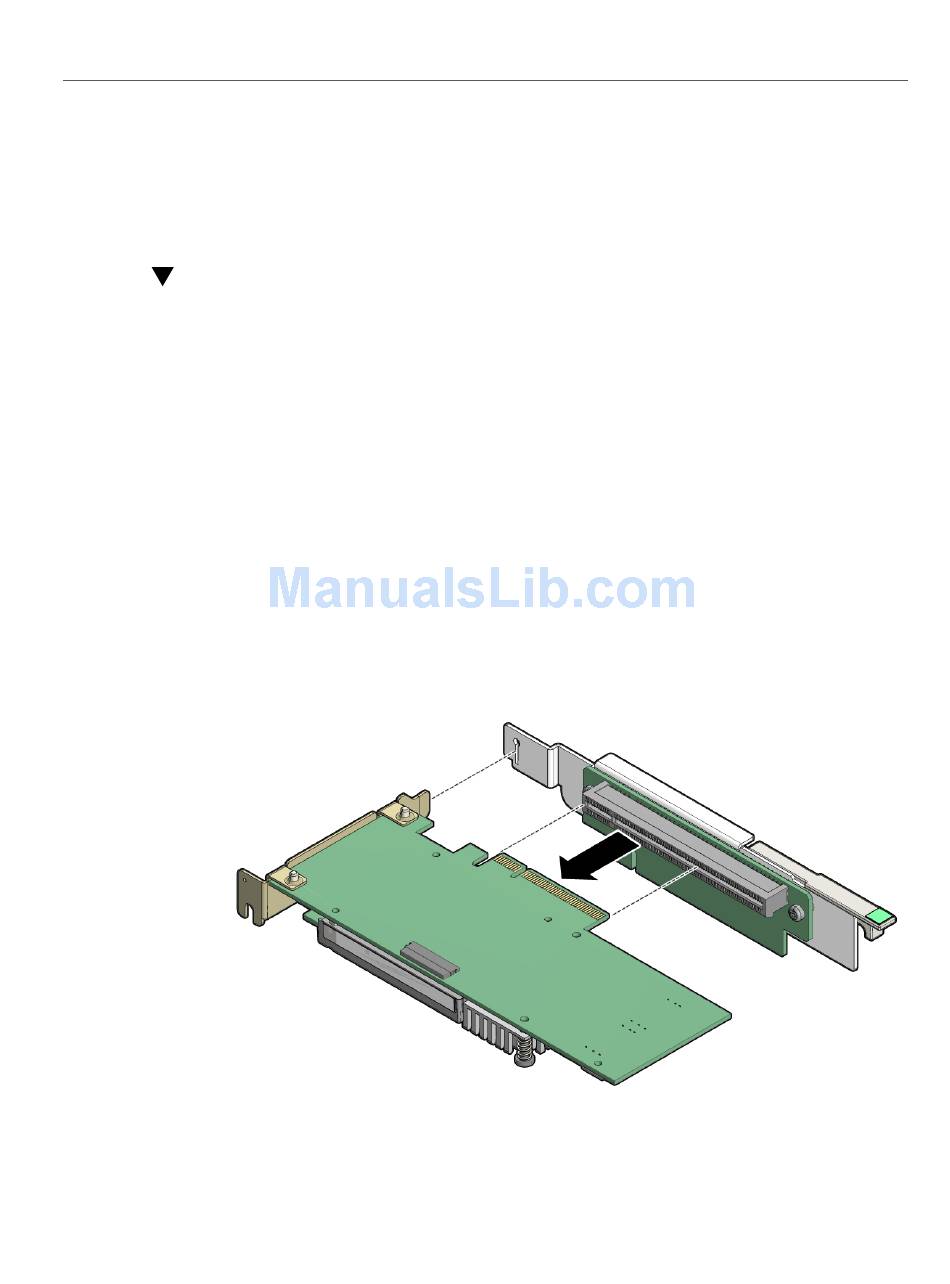

2. Remove the PCIe card from the PCIe riser.
a. Hold the riser in one hand and use your other hand to carefully pull the PCIe
card connector out of the riser.
Disconnect the rear bracket that is attached to the PCIe card from the rear of
b.
the PCIe riser.
