7.

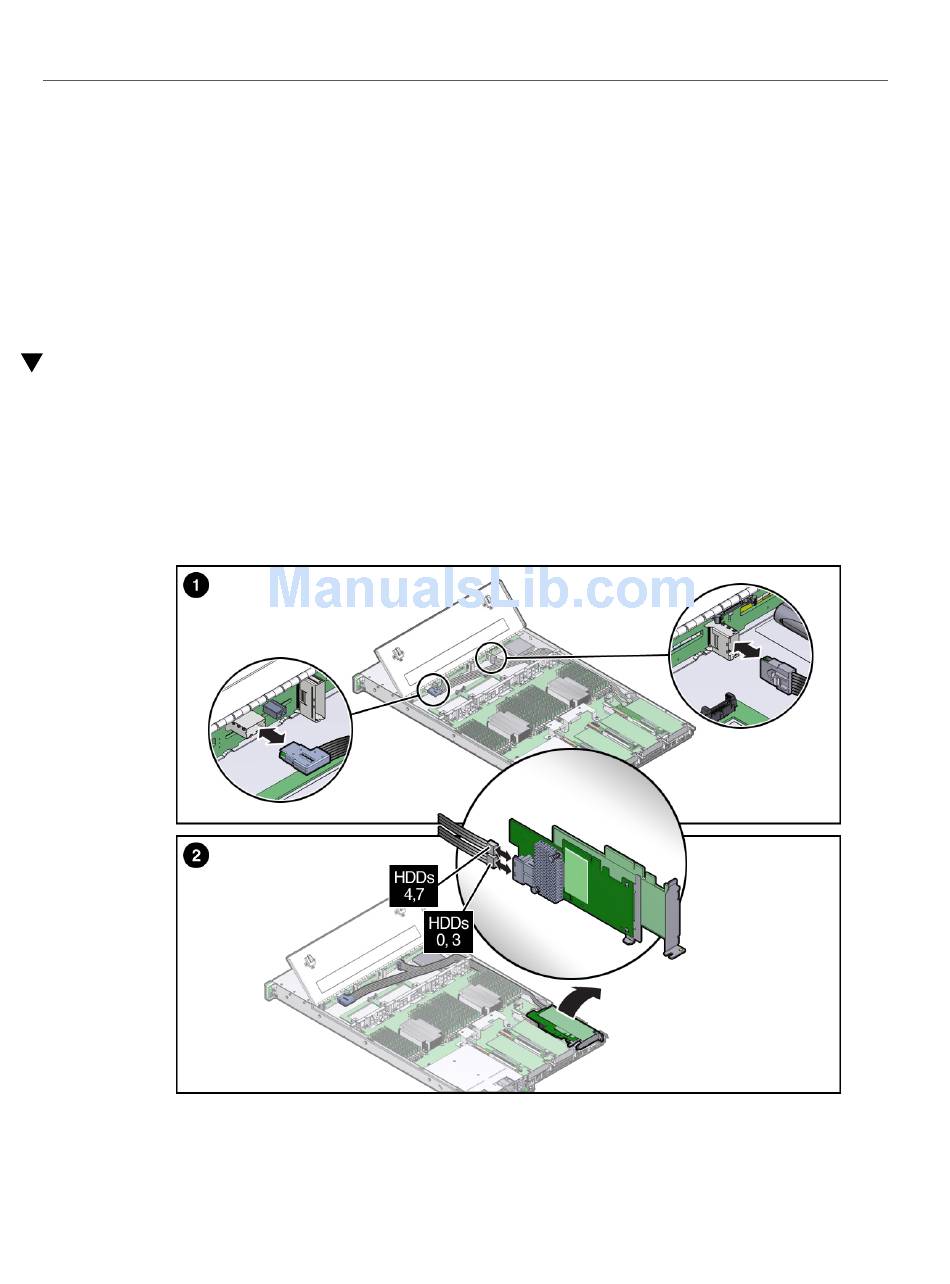

On the under side of the HBA card, press the SAS cable connector latches and
then pull out the connectors (2).
Carefully remove the SAS cables from the server.
8.
Related Information
"Install the HBA SAS Cable Assembly" on page 121
■
Install the HBA SAS Cable Assembly
This is a cold-service procedure that must be performed by qualified service personnel. The
server must be completely powered down before performing this procedure.
1.
Carefully guide SAS cables along the side of the chassis.
Install the HBA SAS Cable Assembly
Servicing Cables
121
