Install the Internal HBA Card in PCIe Slot 4
1. Unpack the replacement HBA card and the SAS cables, and retrieve the PCIe
riser for slot 3.

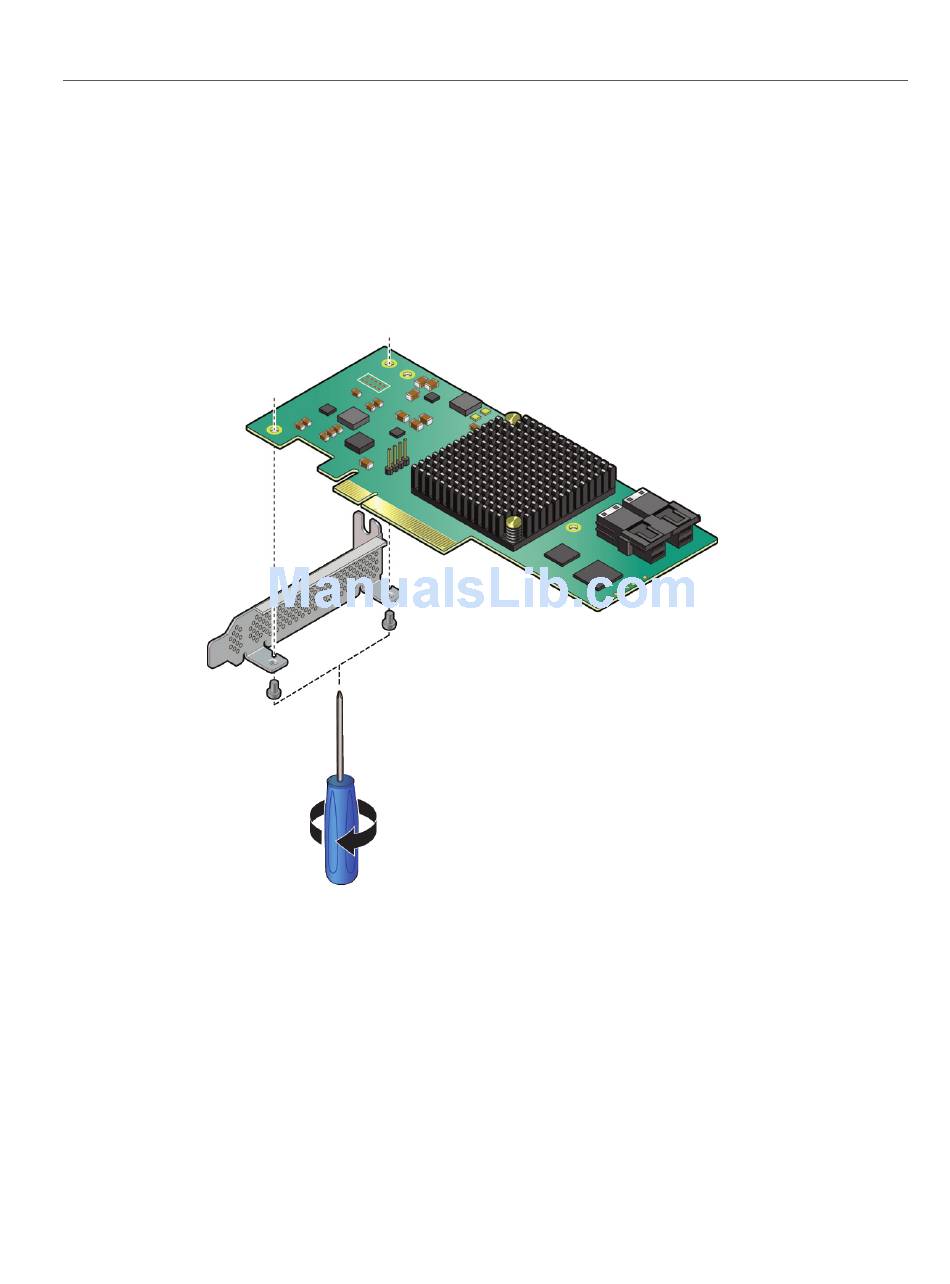

Using a T10 Torx screwdriver, remove the standard HBA bracket that shipped
2.
with the replacement HBA card.
