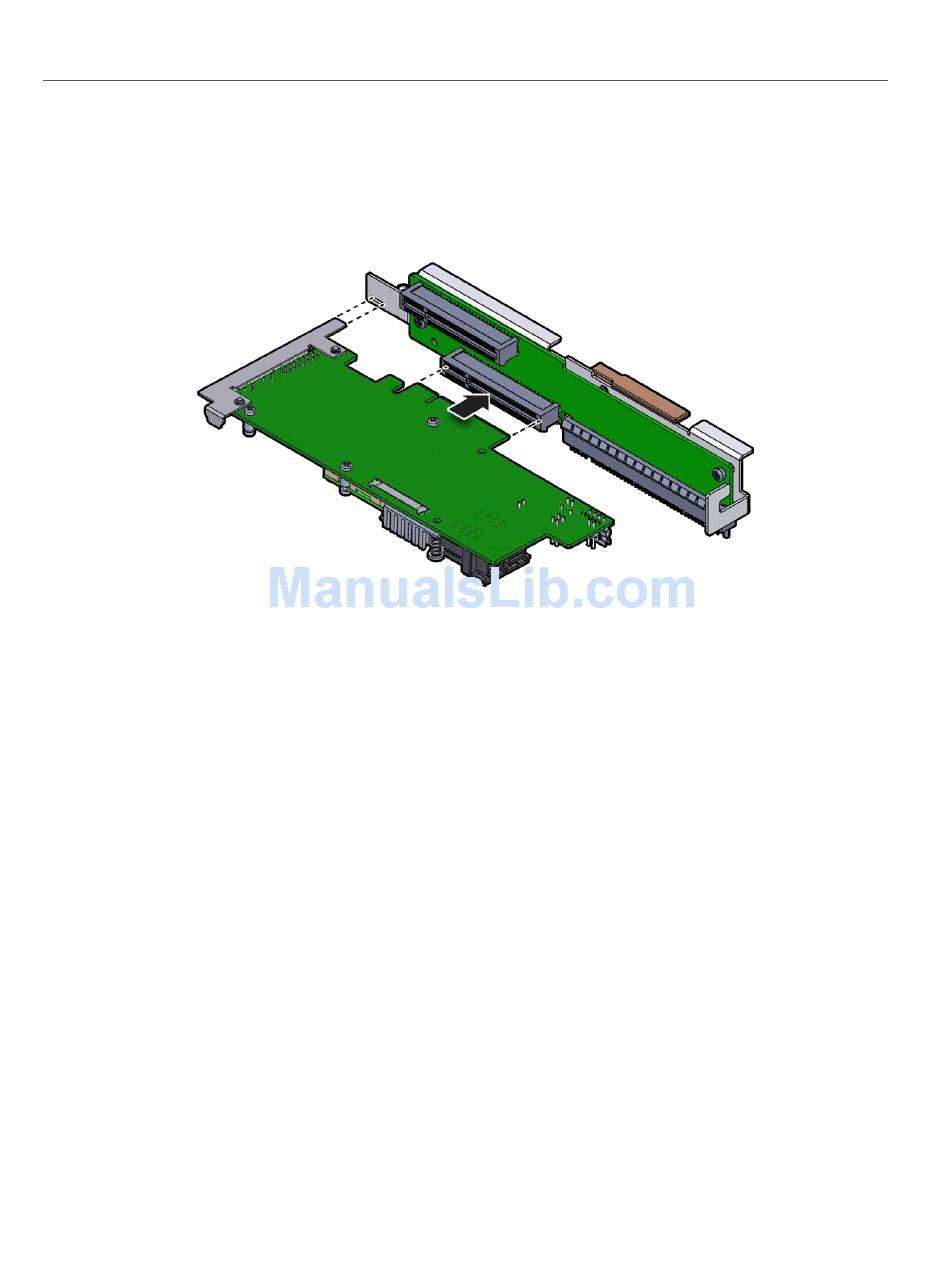

6. Insert the rear bracket on the internal HBA card into the rear connector on the
PCIe riser.
7. Insert the internal HBA card connector into the bottom connector on the riser for
PCIe slot 3 and 4.
8. Install the PCIe riser.
See "Install the PCIe Riser Into PCIe Slots 3 and 4" on page
9. Install fan module FM 0.
See "Install a Fan Module" on page
Return the server to operation.
10.
See "Returning the Server to Operation" on page
Install the Internal HBA Card in PCIe Slot 4
65.
145.
94.
Servicing PCIe Cards 109
