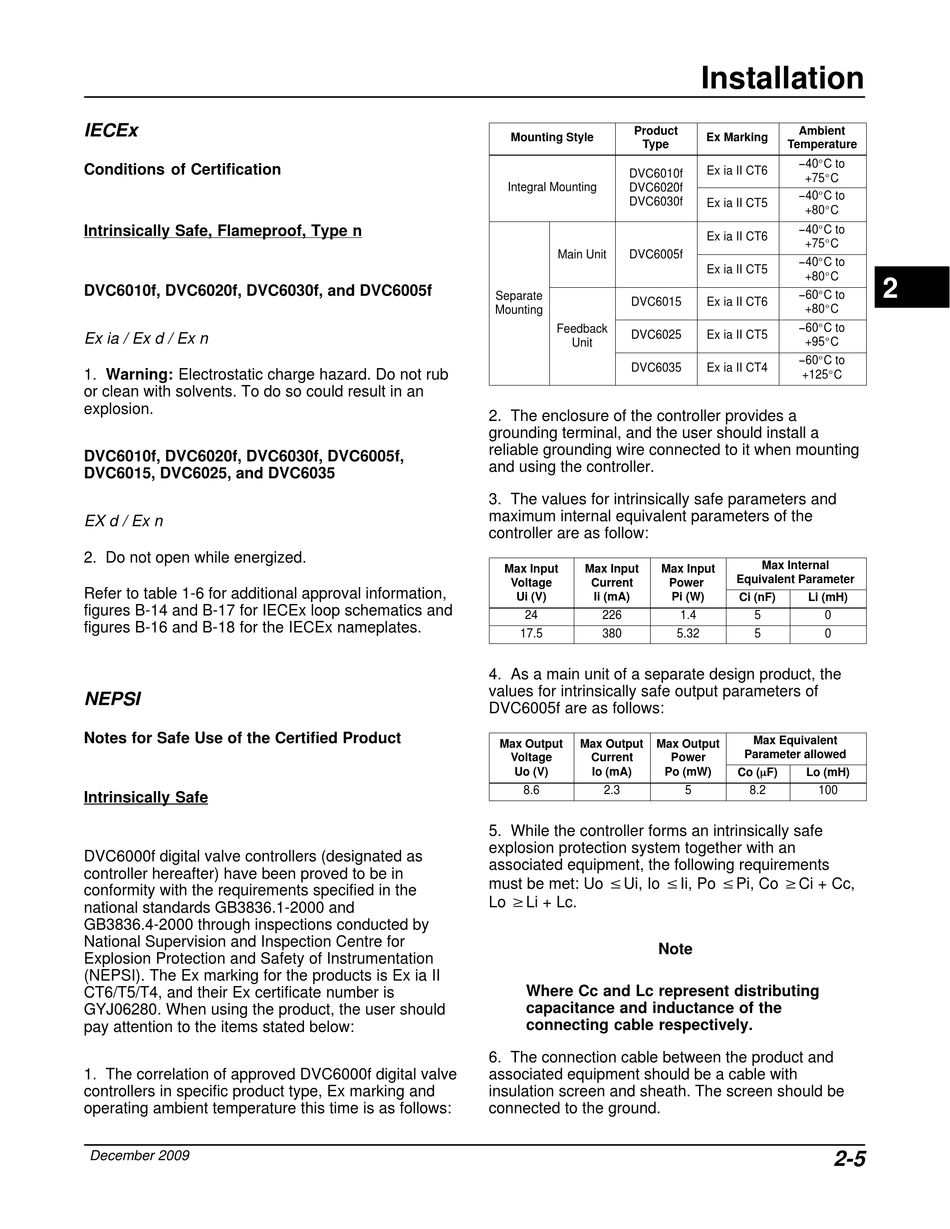

IECEx

Conditions of Certification
Intrinsically Safe, Flameproof, Type n
DVC6010f, DVC6020f, DVC6030f, and DVC6005f
Ex ia / Ex d / Ex n
1. Warning: Electrostatic charge hazard. Do not rub
or clean with solvents. To do so could result in an
explosion.
DVC6010f, DVC6020f, DVC6030f, DVC6005f,
DVC6015, DVC6025, and DVC6035
EX d / Ex n
2. Do not open while energized.
Refer to table 1-6 for additional approval information,
figures B-14 and B-17 for IECEx loop schematics and
figures B-16 and B-18 for the IECEx nameplates.

NEPSI

Notes for Safe Use of the Certified Product
Intrinsically Safe
DVC6000f digital valve controllers (designated as
controller hereafter) have been proved to be in
conformity with the requirements specified in the
national standards GB3836.1-2000 and
GB3836.4-2000 through inspections conducted by
National Supervision and Inspection Centre for
Explosion Protection and Safety of Instrumentation
(NEPSI). The Ex marking for the products is Ex ia II
CT6/T5/T4, and their Ex certificate number is
GYJ06280. When using the product, the user should
pay attention to the items stated below:
1. The correlation of approved DVC6000f digital valve
controllers in specific product type, Ex marking and
operating ambient temperature this time is as follows:
December 2009
Product
Mounting Style
Type
DVC6010f
Integral Mounting DVC6020f
DVC6030f
Main Unit DVC6005f
Separate
DVC6015
Mounting
Feedback
DVC6025
Unit
DVC6035
2. The enclosure of the controller provides a
grounding terminal, and the user should install a
reliable grounding wire connected to it when mounting
and using the controller.
3. The values for intrinsically safe parameters and
maximum internal equivalent parameters of the
controller are as follow:
Max Input Max Input Max Input
Voltage Current
Ui (V) Ii (mA)
24 226
17.5 380
4. As a main unit of a separate design product, the
values for intrinsically safe output parameters of
DVC6005f are as follows:
Max Output Max Output Max Output
Voltage Current
Uo (V) Io (mA) Po (mW)
8.6 2.3
5. While the controller forms an intrinsically safe
explosion protection system together with an
associated equipment, the following requirements
must be met: Uo vUi, Io vIi, Po vPi, Co wCi + Cc,
Lo wLi + Lc.
Note
Where Cc and Lc represent distributing
capacitance and inductance of the
connecting cable respectively.
6. The connection cable between the product and
associated equipment should be a cable with
insulation screen and sheath. The screen should be
connected to the ground.
Installation
Ambient
Ex Marking
Temperature
−40_C to
Ex ia II CT6
+75_C
−40_C to
Ex ia II CT5
+80_C
−40_C to
Ex ia II CT6
+75_C
−40_C to
Ex ia II CT5
+80_C
−60_C to
Ex ia II CT6
+80_C
−60_C to
Ex ia II CT5
+95_C
−60_C to
Ex ia II CT4
+125_C
Max Internal
Equivalent Parameter
Power
Pi (W) Ci (nF) Li (mH)
1.4 5 0
5.32 5 0
Max Equivalent
Parameter allowed
Power
Co (mF) Lo (mH)
5 8.2 100
