Certification
Type
Body
Intrinsically Safe & FISCO
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42819
Natural Gas Approved
DVC60x0F
DVC60x0FS
(x = 1,2,3)
Explosion Proof
Class I, Division 1 GP B,C,D T6
Natural Gas Approved
Class I Division 2 GP A,B,C,D T6
Class II Division 1 GP E,F,G T6
Class II Division 2 GP F,G T6
Class III
Natural Gas Approved
Intrinsically Safe & FISCO
FM Class/Division
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42819
Natural Gas Approved
DVC6005F
Explosion Proof
Class I Division 1 GP B,C,D T6
Natural Gas Approved
Class I Division 2 GP A,B,C,D
Class II,III Division 1 GP E,F,G
Class II,III Division 2 GP F,G
Natural Gas Approved
Intrinsically Safe
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42819
DVC60x5
Explosion Proof
(x = 1,2,3)
Class I Division 1 GP A,B,C,D
Class I Division 2 GP A,B,C,D
Class II,III Division 1 GP E,F,G
Class II,III Division 2 GP F,G
December 2009
Introduction and Specifications

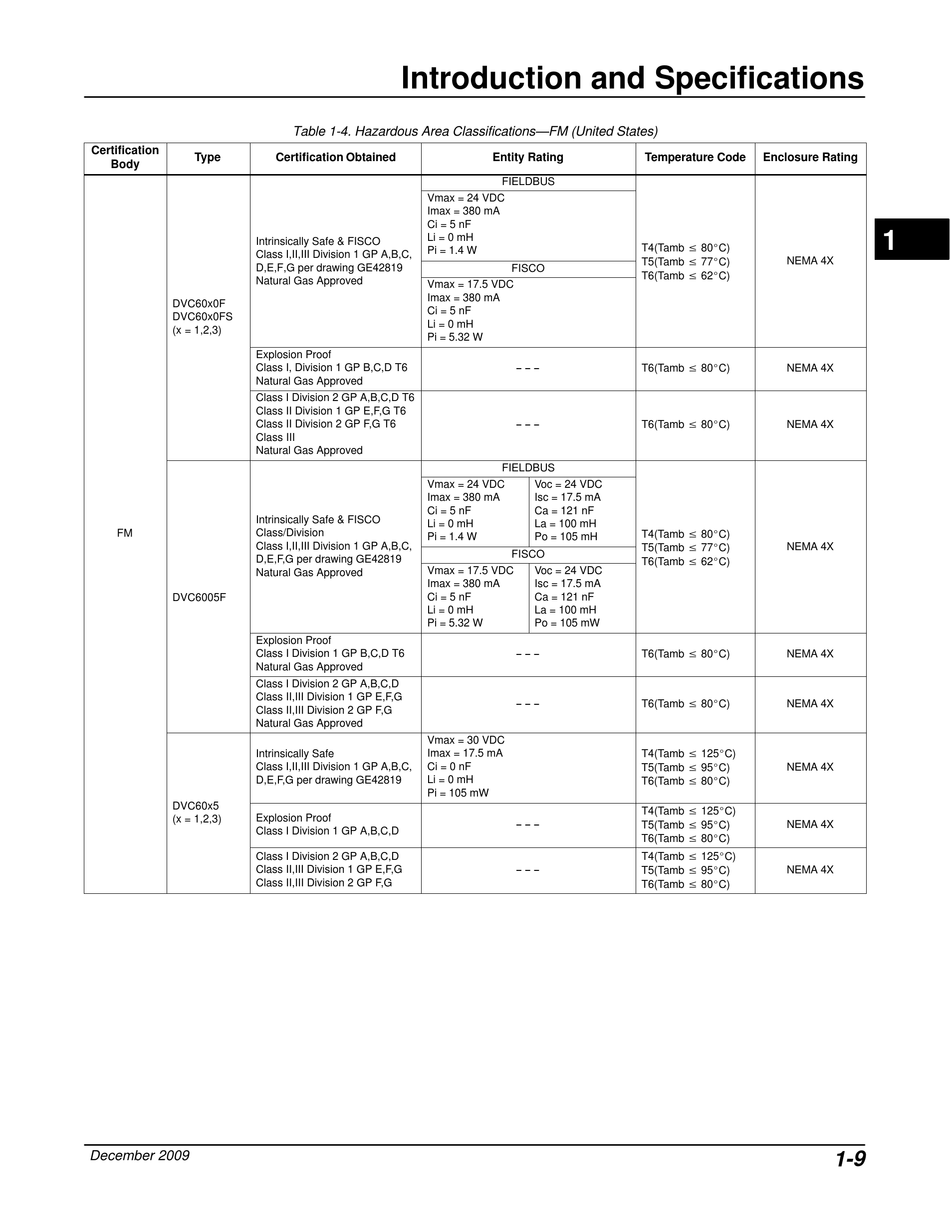

Table 1-4. Hazardous Area Classifications—FM (United States)
Certification Obtained
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
Vmax = 30 VDC
Imax = 17.5 mA
Ci = 0 nF
Li = 0 mH
Pi = 105 mW
Entity Rating Temperature Code
FIELDBUS
T4(Tamb v 80_C)
T5(Tamb v 77_C)
FISCO
T6(Tamb v 62_C)
− − − T6(Tamb v 80_C)
− − −
T6(Tamb v 80_C)
FIELDBUS
Voc = 24 VDC
Isc = 17.5 mA
Ca = 121 nF
La = 100 mH
T4(Tamb v 80_C)
Po = 105 mH
T5(Tamb v 77_C)
FISCO
T6(Tamb v 62_C)
Voc = 24 VDC
Isc = 17.5 mA
Ca = 121 nF
La = 100 mH
Po = 105 mW
− − − T6(Tamb v 80_C)
− − − T6(Tamb v 80_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
T6(Tamb v 80_C)
T4(Tamb v 125_C)
− − − T5(Tamb v 95_C)
T6(Tamb v 80_C)
T4(Tamb v 125_C)
− − −
T5(Tamb v 95_C)
T6(Tamb v 80_C)
Enclosure Rating
1
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
NEMA 4X
