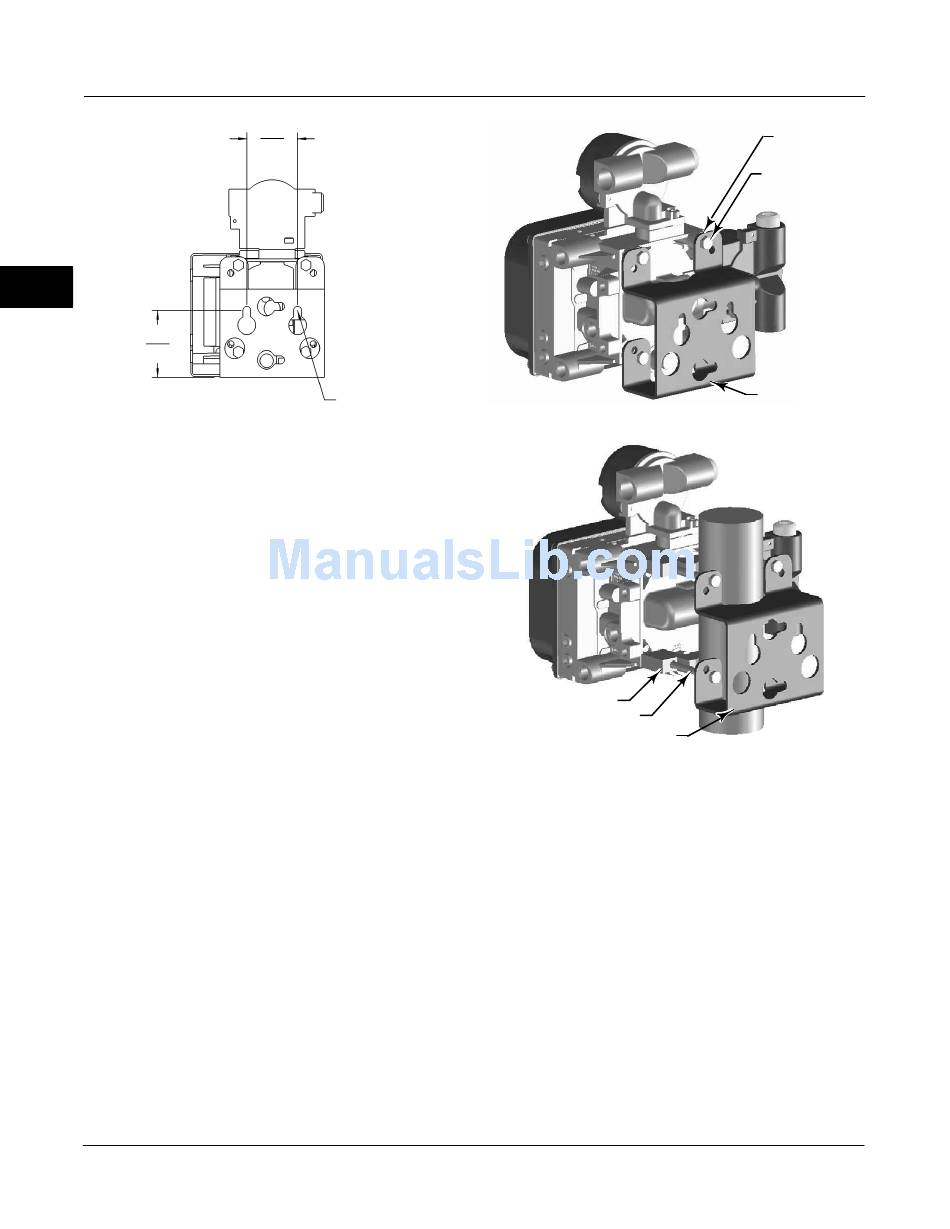

Figure 2-12. FIELDVUE DVC6005f Digital Valve
Controller with Mounting Bracket (Rear View)

DVC6005f Base Unit

For remote-mounted digital valve controllers, the
DVC6005f base unit ships separately from the control
valve and does not include tubing, fittings or wiring.
See the instructions that come with the mounting kit
for detailed information on mounting the digital valve
controller to a specific actuator model.
For remote-mounted instruments, mount the
DVC6005f base unit on a 50.8 mm (2 inch) pipestand
or wall. The included bracket is used for either
mounting method.

Wall Mounting

Refer to figures 2-12 and 2-13. Drill two holes in the
wall using the dimensions shown in figure 2-12. Attach
the mounting bracket to the base unit using four
spacers and 25.4 mm (1-inch) 1/4-20 hex head
screws. Attach the base unit to the wall using suitable
screws or bolts.

Pipestand Mounting

Refer to figure 2-13. Position a standoff on the back of
the base unit. Using two 101.6 mm (4-inch) 1/4-20 hex
head screws loosely attach the base unit to the
pipestand with the mounting bracket. Position the
second standoff, then using the remaining 101.6 mm
(4-inch) hex head screws, securely fasten the base
unit to the pipe stand.
2-14
57
2.25
2 MOUNTING
HOLES
j 8.6 /.34
W8473 / IL
WALL MOUNTING
STANDOFF
4-INCH 1/4-20
HEX HEAD SCREW
MOUNTING BRACKET
W8474 / IL
PIPESTAND MOUNTING
Figure 2-13. FIELDVUE DVC6005f Base Unit Mounting
DVC6015 on Sliding-Stem Actuators Up
to 102 mm (4 Inches) of Travel
If ordered as part of a control valve assembly, the
factory mounts the digital valve controller on the
actuator, makes pneumatic connections to the
actuator, sets up, and calibrates the instrument. If you
purchased the digital valve controller separately, you
will need a mounting kit to mount the digital valve
controller on the actuator. See the instructions that
come with the mounting kit for detailed information on
SPACER
1-INCH 1/4-20
HEX HEAD SCREW
MOUNTING BRACKET
