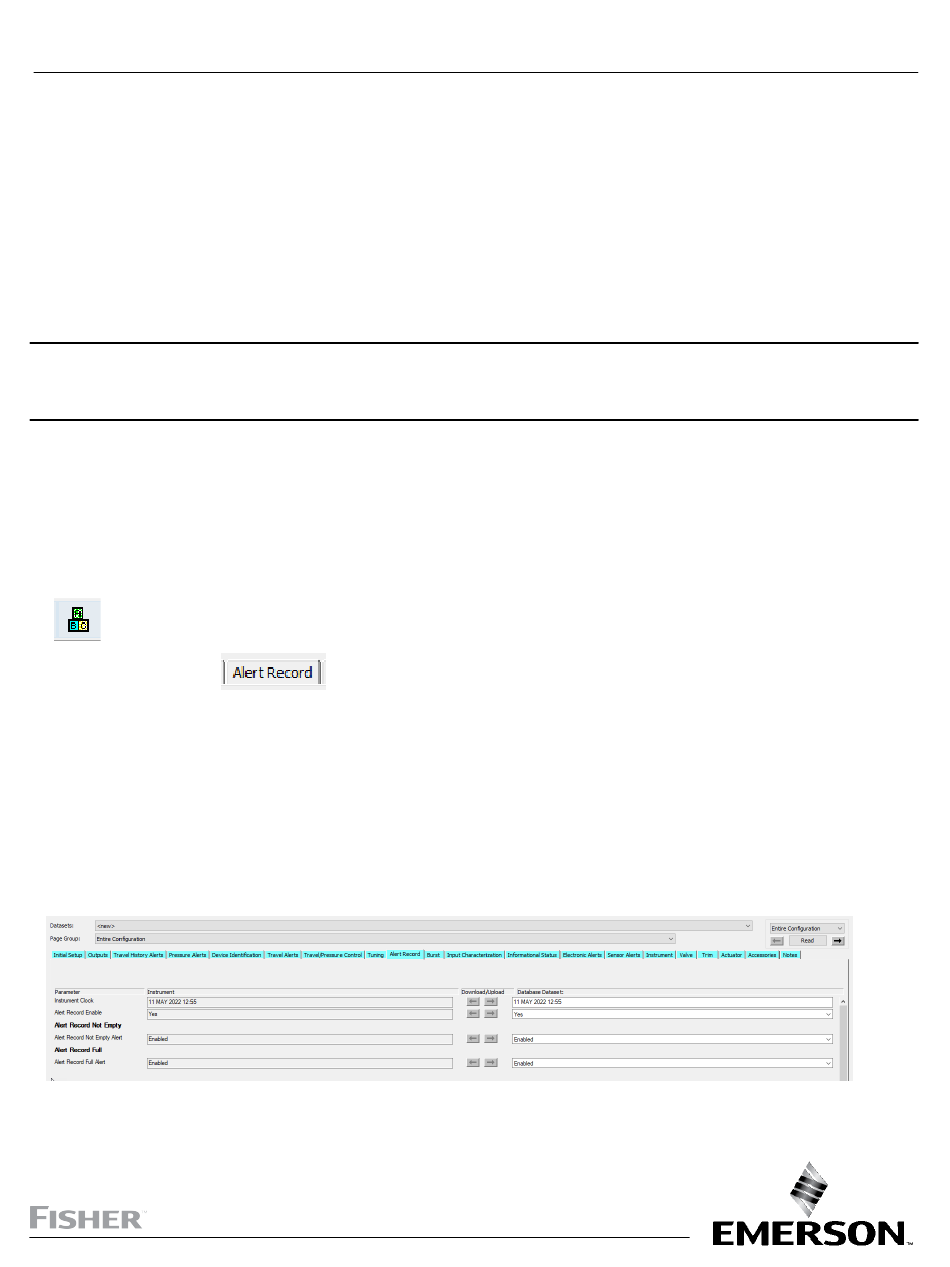

Instruction Manual Supplement
D104732X012
Alert Record Setup for a Fisher
DVC6200 HW2 Digital Valve Controller
Alert Record in the DVC6200 HW2 is accessible using ValveLink
Device Communicator or AMS Device Manager, and can be configured to record and time stamp alert conditions.
Twenty (20) alert records may be stored in the instrument. The alert record is a great troubleshooting tool when used
properly.
Note
The alert record does not use a first in first out (FIFO) operation. Once the alert record is full, the instrument will not record
additional events until the alert record is cleared. Alerts will continue to be reported to the control or asset management system.

Enable the Alert Record

1. The alert record in the DVC6200 is disabled by default. It is good practice to enable the alert record and clear it after
startup procedures are complete; when the alert record is enabled during start-up it can be filled with irrelevant
alerts.
2. To enable the alert record, open the Detailed Setup menu using the Block icon.
3. Click on Alert Record (
4. Verify that Alert Record Enable is set to yes.
a. Use the drop down menu on the right to change values as needed.
b. Use the left arrow next to the parameter to download the value to the instrument.
Set Alert Record Not Empty and Alert Record Full Alerts
Enabling both of these alerts will generate an alert in Status Monitor when alert values are recorded and available to
view in the Alert Record.
www.Fisher.com
™
) at the top of the Detailed Setup window.
DVC6200 HW2 Digital Valve Controller
FIELDVUE
™
software or DD based communications such as a Trex
May 2022
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fisher FIELDVUE DVC6200 HW2 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Fisher FIELDVUE DVC6200 HW2

Summary of Contents for Emerson Fisher FIELDVUE DVC6200 HW2

  • Page 1 Instruction Manual Supplement DVC6200 HW2 Digital Valve Controller D104732X012 May 2022 Alert Record Setup for a Fisher FIELDVUE ™ ™ DVC6200 HW2 Digital Valve Controller Alert Record in the DVC6200 HW2 is accessible using ValveLink ™ software or DD based communications such as a Trex Device Communicator or AMS Device Manager, and can be configured to record and time stamp alert conditions.
  • Page 2 Instruction Manual Supplement DVC6200 HW2 Digital Valve Controller May 2022 D104732X012 Set Instrument Clock The initial clock value shown in the right column is the computer time when the Alert Record page is opened. 1. Adjust the time value as needed. 2.
  • Page 3 Instruction Manual Supplement DVC6200 HW2 Digital Valve Controller D104732X012 May 2022 d. Diagnostic Data Available – Informational Status Tab  This alert indicates PD trigger information is stored in the instrument buffer. e. Pressure Fallback Active – Sensor Alerts Tab  This alert is active if the device goes into pressure fallback. - Pressure Fallback must be enabled View and Clear Stored Alert Records 1.
  • Page 4 Instruction Manual Supplement DVC6200 HW2 Digital Valve Controller May 2022 D104732X012 3. Use the next and previous arrows to scroll through the records. Each record may contain multiple alerts depending on what was active at the time the record was captured. Note: The alert record list cannot be downloaded.
  • Page 5 Instruction Manual Supplement DVC6200 HW2 Digital Valve Controller D104732X012 May 2022 View Active Alerts Active alerts may be reported via HART protocol to a control or asset management system. They are also viewable using ValveLink Status Monitor. The image below shows active alerts in ValveLink software reported while the Status Monitor is running;...
  • Page 6 Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Fisher, FIELDVUE, and ValveLink are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co.
