DVC6000f Digital Valve Controllers
Methods
Transducer Block
The following methods are accessed via the
transducer block: Device Setup, Auto Travel
Calibration, Manual Travel Calibration, Supply Sensor
Calibration, Output A Sensor Calibration, Output B
Sensor Calibration, Travel Sensor Adjust, Stroke
Valve, Performance Tuner, Stabilize/Optimize, and
Relay Adjust.
Refer to figures F-1, F-2, and F-3 and the following
steps to access these methods.
F
1. Start DeltaV Explorer by selecting DeltaV Explorer
from the Start menu.
2. Locate the the digital valve controller icon in the All
Containers pane (the left panel) and right-click once
on the digital valve controller icon or name.
3. Locate Open with AMS Device Manager in the
context menu and left-click to bring up the Device
Connection View.
4. Navigate to the digital valve controller icon or name
as shown in figure F-2 and left-click.
F-10

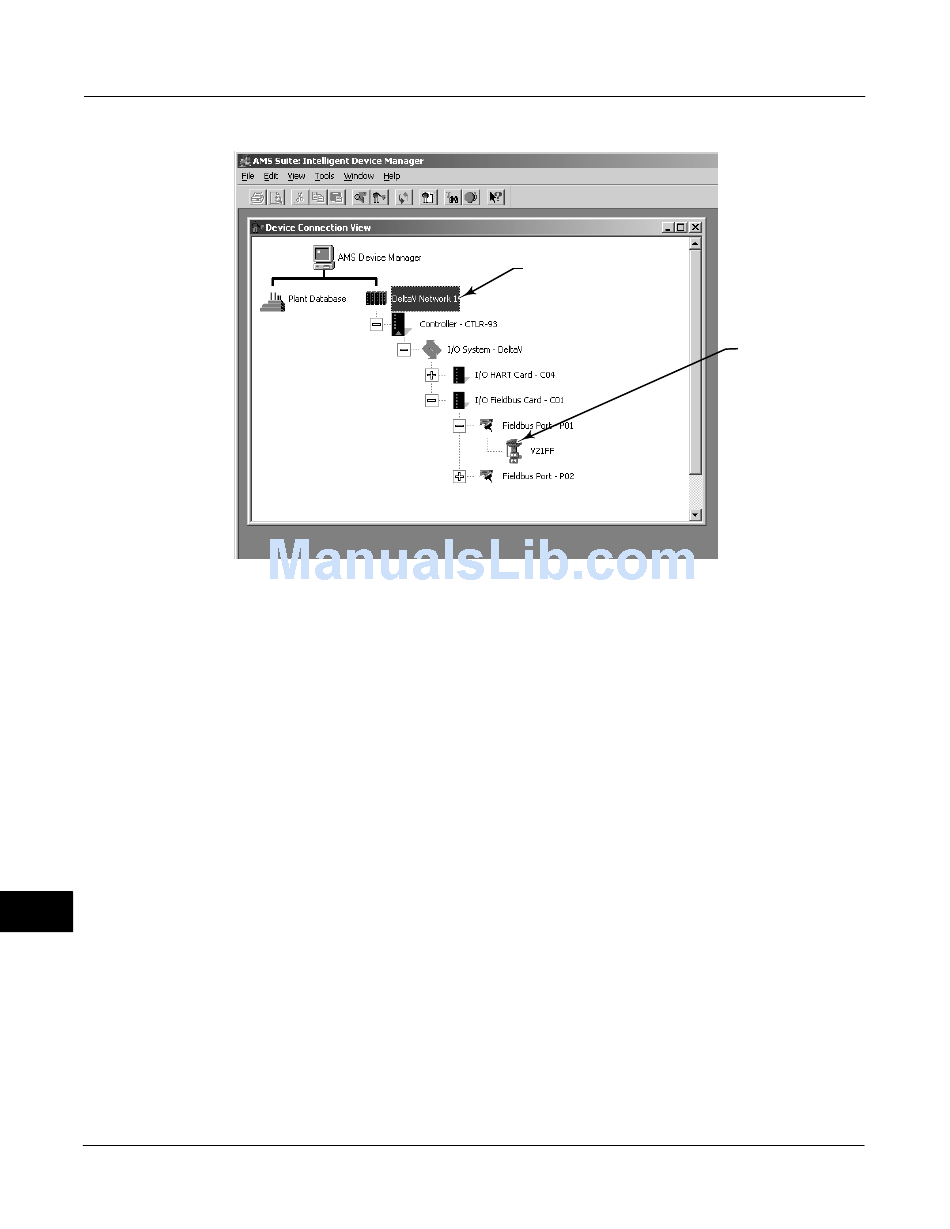

Figure F-2. Accessing the Digital Valve Controller Through AMS Device Manager
LEFT-CLICK TO
ACCESS THE
DELTAV NETWORK
5. Locate Methods in the Actions menu, as shown in
figure F-3 and right-click once.
6. Select the desired method from the the Actions
menu and left-click to start the method.
Resource Block
The Restart Options method and the DD Information
method are available via the resource block. Refer to
figure F-3 and the following steps to access these
methods.
1. Start DeltaV Explorer by selecting DeltaV Explorer
from the Start menu.
2. Locate the digital valve controller icon in the All
Containers pane (the left panel) and right-click once
on the digital valve controller icon or name.
3. Locate Open with AMS Device Manager in the
context menu and left-click to bring up the Device
Connection View.
4. Navigate to the digital valve controller icon or name
as shown in figure F-2 and left-click.
5. Locate Methods in the Actions menu, as shown in
figure F-3 and right-click once.
6. Select the desired method from the the Actions
menu and left-click to start the method.
DIGITAL VALVE
CONTROLLER
ICON AND NAME
