DVC6000f Digital Valve Controllers
BIAS SPRING
5
(KEY 82)
A7024 -2/ IL

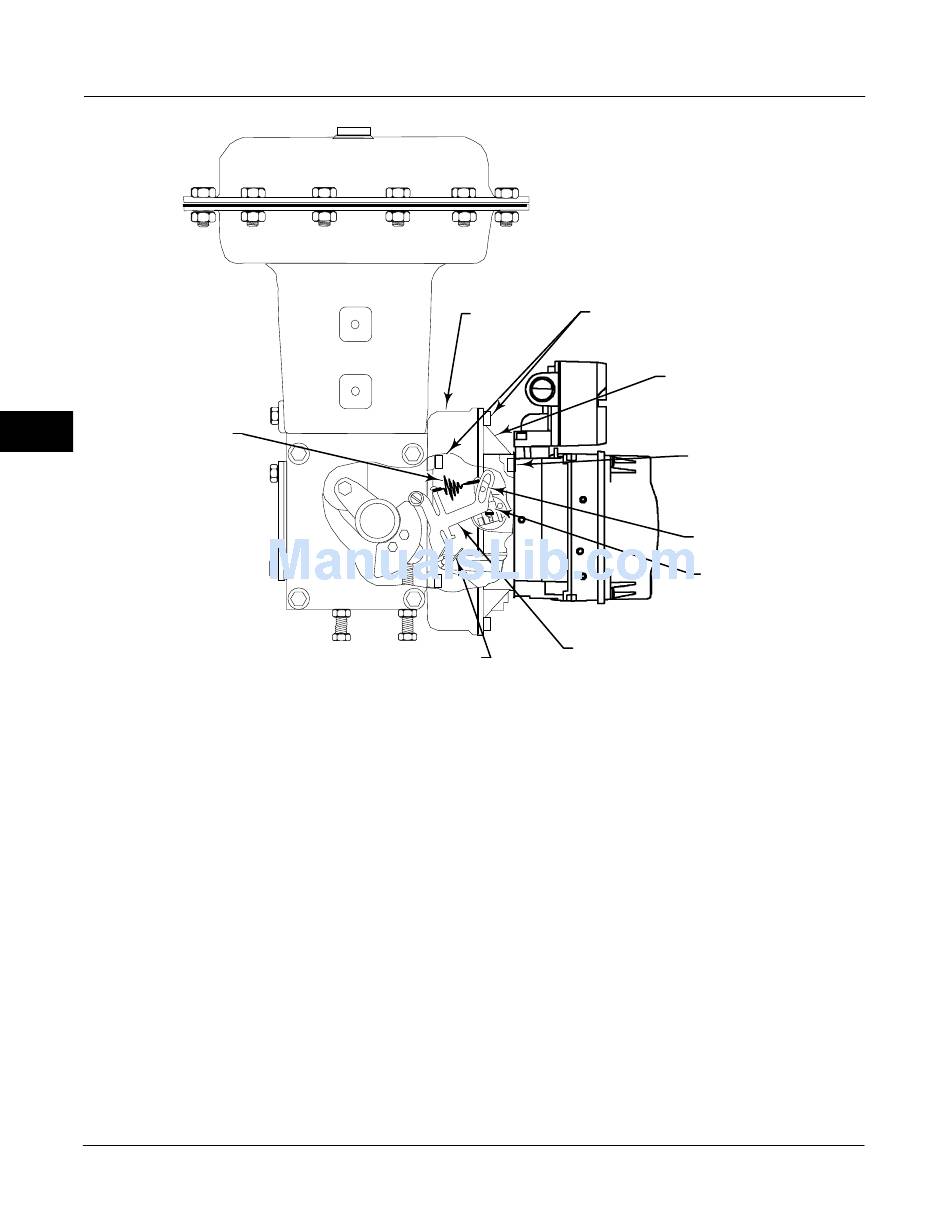

Figure 5-5. FIELDVUE DVC6020f Digital Valve Controller Mounted on Fisher 1052, Size 33 Actuator
Pressure A Calibration
(TB > Configure/Setup > Calibration > Press A)
For a Zero Only calibration, select Zero only and
follow the prompts on the Field Communicator.
To do a Zero and Span calibration on the pressure A
sensor, connect an external reference gauge to
pressure A. The gauge should be capable of
measuring maximum instrument supply pressure.
Select Zero and Span and follow the prompts on the
Field Communicator.
When finished place the Transducer Block Mode in
Auto. Verify that the displayed pressure matches the
measured output pressure.
5-8
MOUNTING
ADAPTER
(KEY 117)
FEEDBACK ARM ASSEMBLY
FEEDBACK ARM
(KEY 84)
TORSION SPRING
(KEY 93)
Pressure B Calibration
(TB > Configure/Setup > Calibration > Press B)
For a Zero Only calibration, select Zero only and
follow the prompts on the Field Communicator.
To do a Zero and Span calibration on pressure sensor
B, connect an external reference gauge pressure
sensor B. The gauge should be capable of measuring
maximum instrument supply pressure. Select Zero
and Span and follow the prompts on the Field
Communicator.
When finished place the Transducer Block Mode in
Auto. Verify that the displayed pressure matches the
measured output pressure.
CAP SCREW, HEX SOCKET
(KEY 116)
MOUNTING BRACKET
(KEY 74)
CAP SCREW, HEX HEAD
(KEY 92)
ARM ASSEMBLY PIN
ARM ASSEMBLY
(KEY 91)
December 2009
