DVC6000f Digital Valve Controllers
Certification
Type
Body
1
DVC60x0F
DVC60x0FS
(x = 1,2,3)
CSA
DVC6005F
DVC60x5
(x = 1,2,3)
1-8

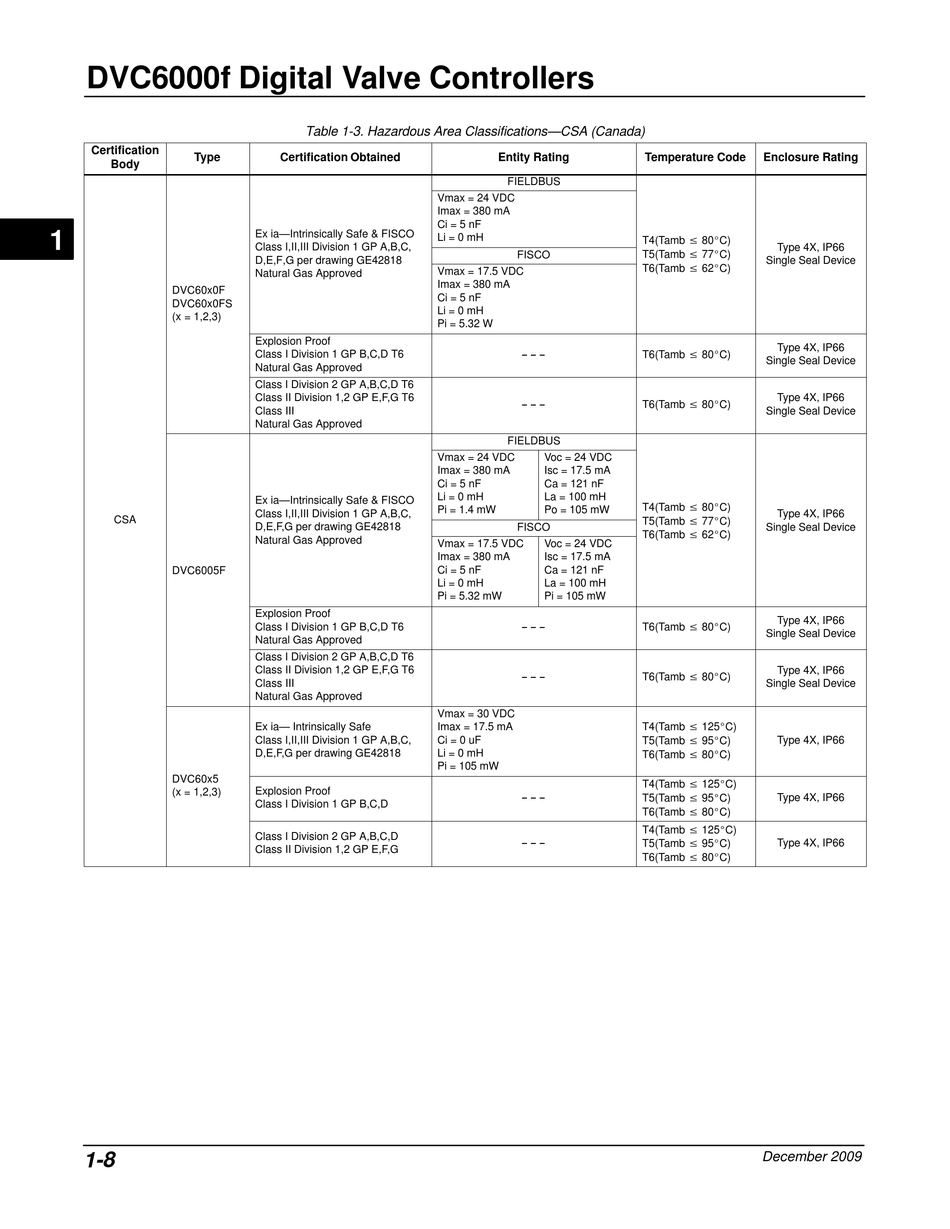

Table 1-3. Hazardous Area Classifications—CSA (Canada)
Certification Obtained
Ex ia—Intrinsically Safe & FISCO
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42818
Natural Gas Approved
Explosion Proof
Class I Division 1 GP B,C,D T6
Natural Gas Approved
Class I Division 2 GP A,B,C,D T6
Class II Division 1,2 GP E,F,G T6
Class III
Natural Gas Approved
Ex ia—Intrinsically Safe & FISCO
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42818
Natural Gas Approved
Explosion Proof
Class I Division 1 GP B,C,D T6
Natural Gas Approved
Class I Division 2 GP A,B,C,D T6
Class II Division 1,2 GP E,F,G T6
Class III
Natural Gas Approved
Ex ia— Intrinsically Safe
Class I,II,III Division 1 GP A,B,C,
D,E,F,G per drawing GE42818
Explosion Proof
Class I Division 1 GP B,C,D
Class I Division 2 GP A,B,C,D
Class II Division 1,2 GP E,F,G
Entity Rating
FIELDBUS
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
FISCO
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
− − −
− − −
FIELDBUS
Vmax = 24 VDC Voc = 24 VDC
Imax = 380 mA Isc = 17.5 mA
Ci = 5 nF Ca = 121 nF
Li = 0 mH La = 100 mH
Pi = 1.4 mW Po = 105 mW
FISCO
Vmax = 17.5 VDC Voc = 24 VDC
Imax = 380 mA Isc = 17.5 mA
Ci = 5 nF Ca = 121 nF
Li = 0 mH La = 100 mH
Pi = 5.32 mW Pi = 105 mW
− − −
− − −
Vmax = 30 VDC
Imax = 17.5 mA
Ci = 0 uF
Li = 0 mH
Pi = 105 mW
− − −
− − −
Temperature Code Enclosure Rating
T4(Tamb v 80_C)
Type 4X, IP66
T5(Tamb v 77_C)
Single Seal Device
T6(Tamb v 62_C)
Type 4X, IP66
T6(Tamb v 80_C)
Single Seal Device
Type 4X, IP66
T6(Tamb v 80_C)
Single Seal Device
T4(Tamb v 80_C)
Type 4X, IP66
T5(Tamb v 77_C)
Single Seal Device
T6(Tamb v 62_C)
Type 4X, IP66
T6(Tamb v 80_C)
Single Seal Device
Type 4X, IP66
T6(Tamb v 80_C)
Single Seal Device
T4(Tamb v 125_C)
T5(Tamb v 95_C)
Type 4X, IP66
T6(Tamb v 80_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
Type 4X, IP66
T6(Tamb v 80_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
Type 4X, IP66
T6(Tamb v 80_C)
