DVC6000f Digital Valve Controllers
Certificate Type
1
DVC60x0f
(x = 1,2,3)
NEPSI
DVC6005f
DVC60x5
(x = 1,2,3)
1. Except acetylene.
1-12

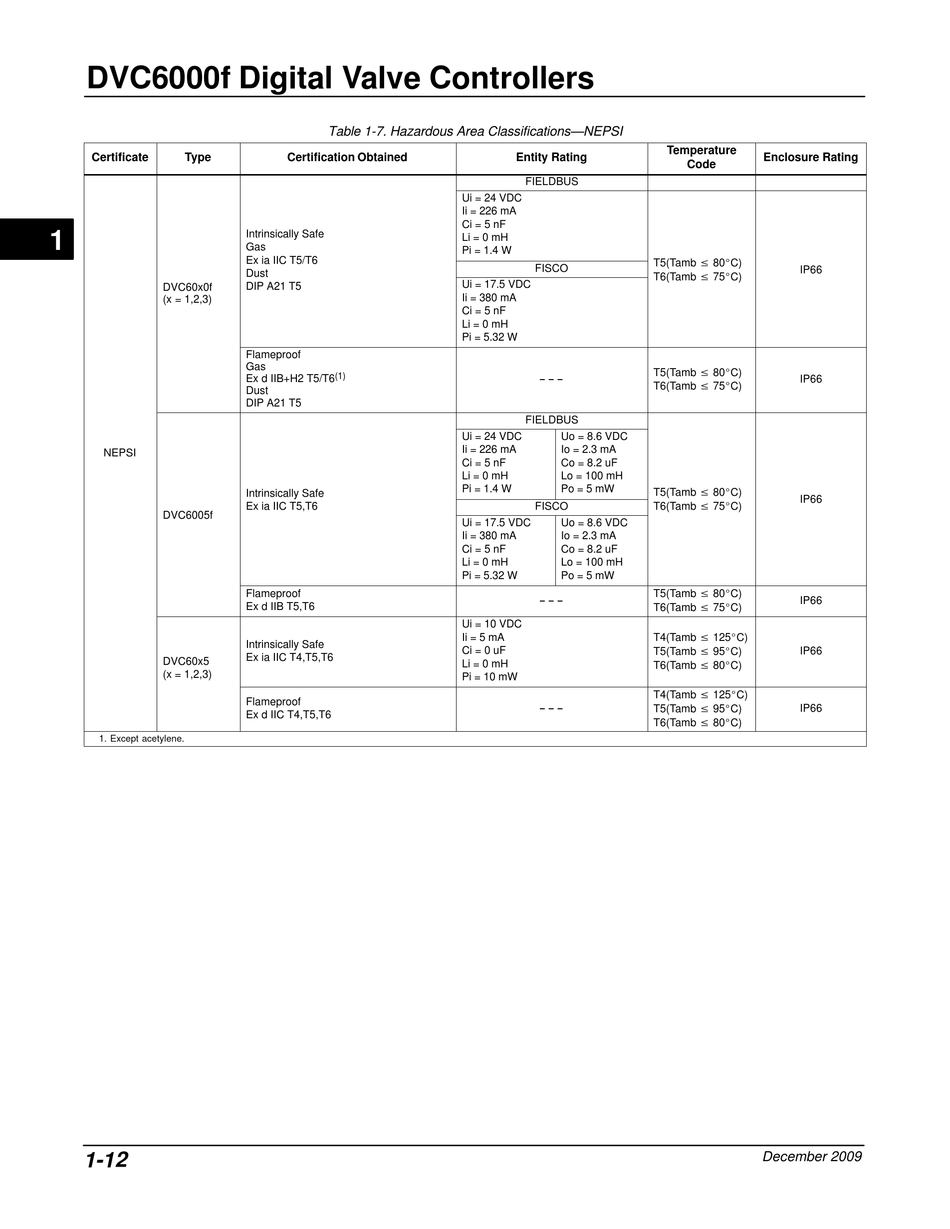

Table 1-7. Hazardous Area Classifications—NEPSI
Certification Obtained
Intrinsically Safe
Gas
Ex ia IIC T5/T6
Dust
DIP A21 T5
Flameproof
Gas
(1)
Ex d IIB+H2 T5/T6
Dust
DIP A21 T5
Intrinsically Safe
Ex ia IIC T5,T6
Flameproof
Ex d IIB T5,T6
Intrinsically Safe
Ex ia IIC T4,T5,T6
Flameproof
Ex d IIC T4,T5,T6
Entity Rating
FIELDBUS
Ui = 24 VDC
Ii = 226 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
FISCO
Ui = 17.5 VDC
Ii = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
− − −
FIELDBUS
Ui = 24 VDC Uo = 8.6 VDC
Ii = 226 mA Io = 2.3 mA
Ci = 5 nF Co = 8.2 uF
Li = 0 mH Lo = 100 mH
Pi = 1.4 W Po = 5 mW
FISCO
Ui = 17.5 VDC Uo = 8.6 VDC
Ii = 380 mA Io = 2.3 mA
Ci = 5 nF Co = 8.2 uF
Li = 0 mH Lo = 100 mH
Pi = 5.32 W Po = 5 mW
− − −
Ui = 10 VDC
Ii = 5 mA
Ci = 0 uF
Li = 0 mH
Pi = 10 mW
− − −
Temperature
Enclosure Rating
Code
T5(Tamb v 80_C)
IP66
T6(Tamb v 75_C)
T5(Tamb v 80_C)
IP66
T6(Tamb v 75_C)
T5(Tamb v 80_C)
IP66
T6(Tamb v 75_C)
T5(Tamb v 80_C)
IP66
T6(Tamb v 75_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
IP66
T6(Tamb v 80_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
IP66
T6(Tamb v 80_C)
