Certificate Type
Intrinsically Safe
Gas
Ex ia IIC T4/T5/T6
DVC60x0F
DVC60x0FS
(x = 1,2,3)
Flameproof
Gas
Ex d IIB+H2 T5/T6
Type n
Gas
Ex nC IIC T5/T6
Intrinsically Safe
IECEx
Gas
Ex ia IIC T5/T6
DVC6005F
Flameproof
Gas
Ex d IIB T5/T6
Type n
Gas
Ex nC IIC T5/T6
Intrinsically Safe
Gas
Ex ia IIC T4/T5/T6
DVC60x5
Flameproof
(x = 1,2,3)
Gas
Ex d IIC T4/T5/T6
Type n
Gas
Ex nA IIC T4/T5/T6
December 2009
Introduction and Specifications

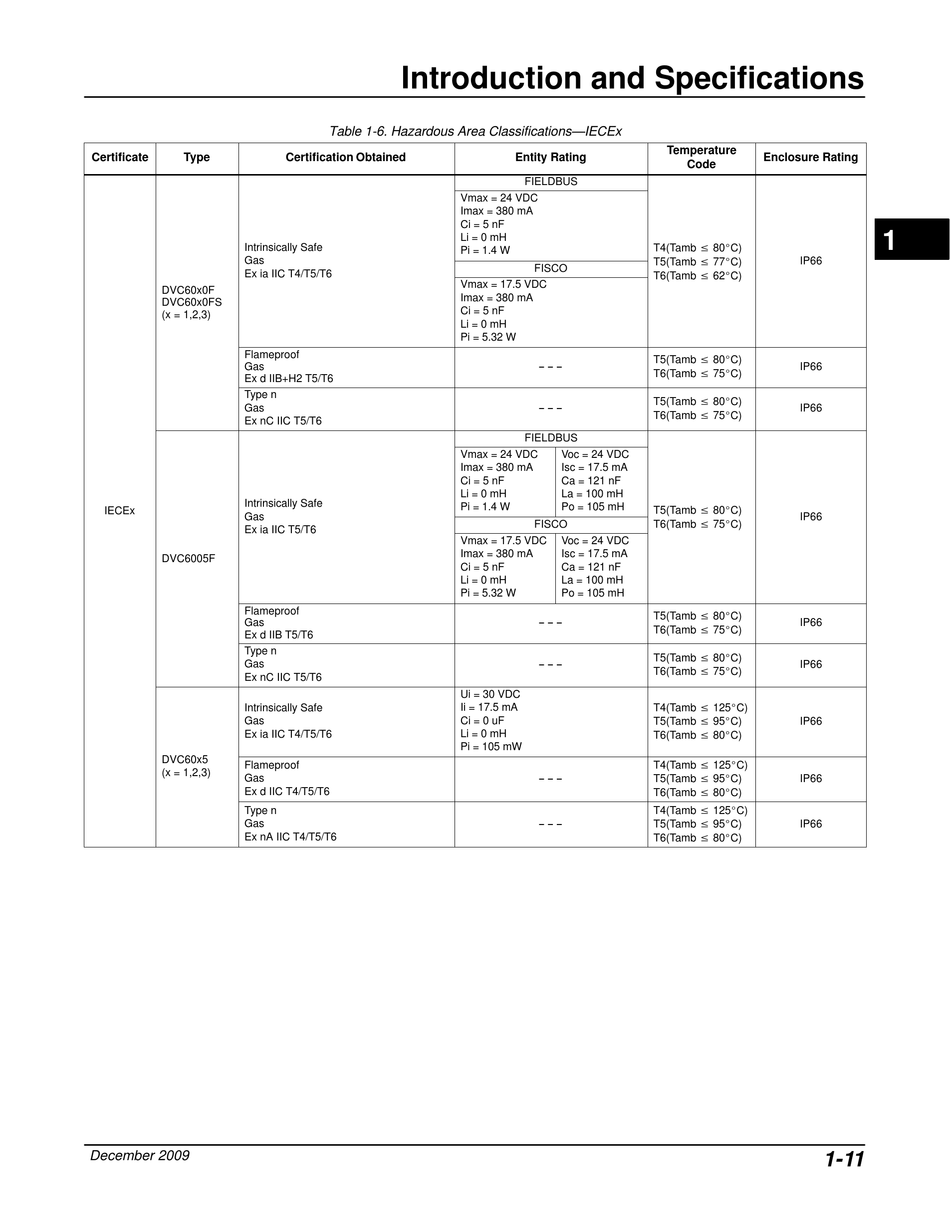

Table 1-6. Hazardous Area Classifications—IECEx
Certification Obtained
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
Vmax = 24 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 1.4 W
Vmax = 17.5 VDC
Imax = 380 mA
Ci = 5 nF
Li = 0 mH
Pi = 5.32 W
Ui = 30 VDC
Ii = 17.5 mA
Ci = 0 uF
Li = 0 mH
Pi = 105 mW
Temperature
Entity Rating
Code
FIELDBUS
T4(Tamb v 80_C)
T5(Tamb v 77_C)
FISCO
T6(Tamb v 62_C)
T5(Tamb v 80_C)
− − −
T6(Tamb v 75_C)
T5(Tamb v 80_C)
− − −
T6(Tamb v 75_C)
FIELDBUS
Voc = 24 VDC
Isc = 17.5 mA
Ca = 121 nF
La = 100 mH
Po = 105 mH
T5(Tamb v 80_C)
T6(Tamb v 75_C)
FISCO
Voc = 24 VDC
Isc = 17.5 mA
Ca = 121 nF
La = 100 mH
Po = 105 mH
T5(Tamb v 80_C)
− − −
T6(Tamb v 75_C)
T5(Tamb v 80_C)
− − −
T6(Tamb v 75_C)
T4(Tamb v 125_C)
T5(Tamb v 95_C)
T6(Tamb v 80_C)
T4(Tamb v 125_C)
− − −
T5(Tamb v 95_C)
T6(Tamb v 80_C)
T4(Tamb v 125_C)
− − − T5(Tamb v 95_C)
T6(Tamb v 80_C)
Enclosure Rating
1
IP66
IP66
IP66
IP66
IP66
IP66
IP66
IP66
IP66
