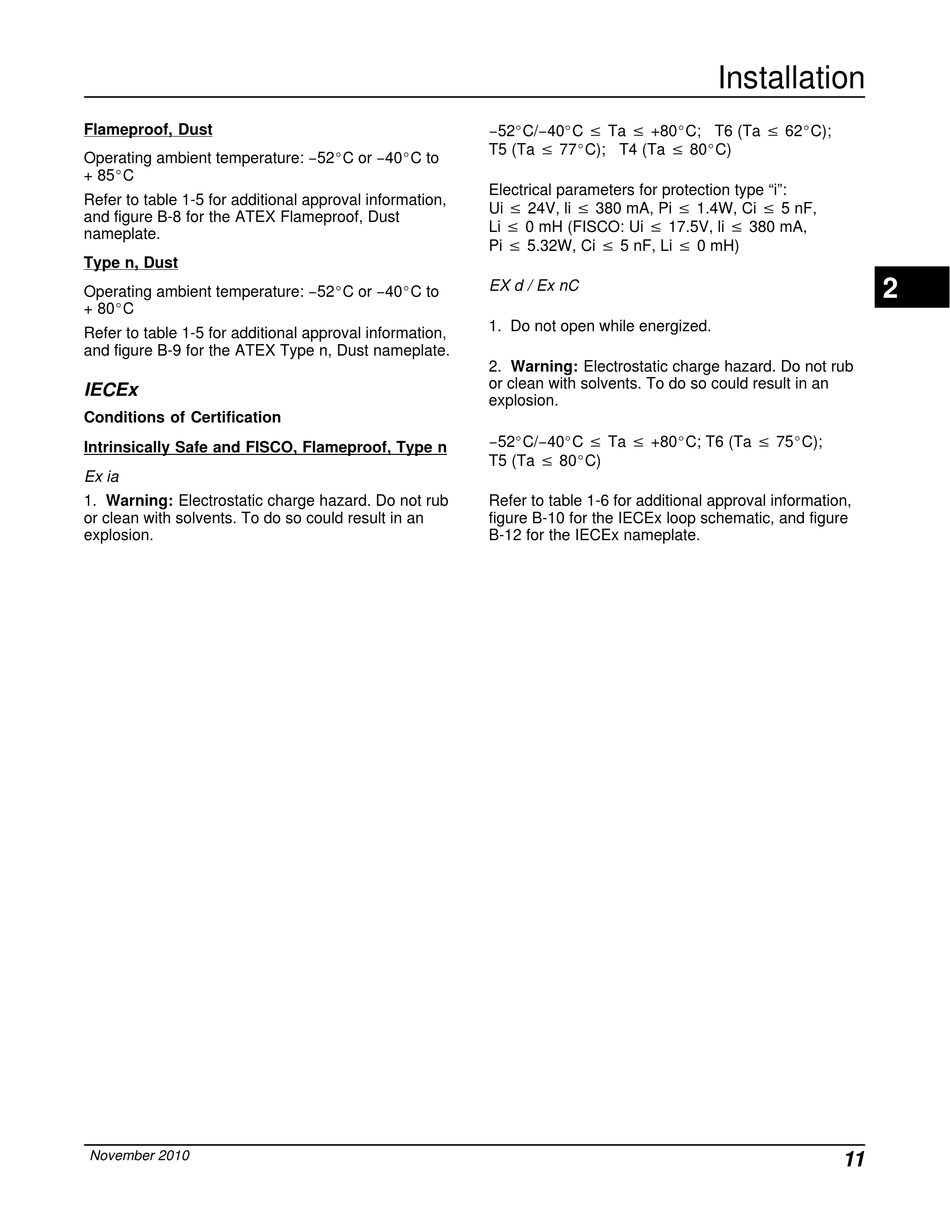

Flameproof, Dust
Operating ambient temperature: −52_C or −40_C to
+ 85_C
Refer to table 1-5 for additional approval information,
and figure B-8 for the ATEX Flameproof, Dust
nameplate.
Type n, Dust
Operating ambient temperature: −52_C or −40_C to
+ 80_C
Refer to table 1-5 for additional approval information,
and figure B-9 for the ATEX Type n, Dust nameplate.

IECEx

Conditions of Certification
Intrinsically Safe and FISCO, Flameproof, Type n
Ex ia
1. Warning: Electrostatic charge hazard. Do not rub
or clean with solvents. To do so could result in an
explosion.
November 2010
−52_C/−40_C v Ta v +80_C; T6 (Ta v 62_C);
T5 (Ta v 77_C); T4 (Ta v 80_C)
Electrical parameters for protection type "i":
Ui v 24V, li v 380 mA, Pi v 1.4W, Ci v 5 nF,
Li v 0 mH (FISCO: Ui v 17.5V, li v 380 mA,
Pi v 5.32W, Ci v 5 nF, Li v 0 mH)
EX d / Ex nC
1. Do not open while energized.
2. Warning: Electrostatic charge hazard. Do not rub
or clean with solvents. To do so could result in an
explosion.
−52_C/−40_C v Ta v +80_C; T6 (Ta v 75_C);
T5 (Ta v 80_C)
Refer to table 1-6 for additional approval information,
figure B-10 for the IECEx loop schematic, and figure
B-12 for the IECEx nameplate.
