Single-Acting Actuators; Double-Acting Actuators - Emerson Fisher FIELDVUE DVC6000f Instruction Manual

DVC6000f Digital Valve Controllers
1/2 NPT
CONDUIT
CONNECTION
2
FEEDBACK CONNECTIONS
TERMINAL BOX
DVC6005f BASE UNIT
W8371-1-FF
W7963-1FF
VALVE-MOUNTED
INSTRUMENT
NOTE:
PNEUMATIC CONNECTIONS APPLICABLE TO BOTH VALVE-MOUNTED
INSTRUMENTS AND DVC6005f BASE UNIT.

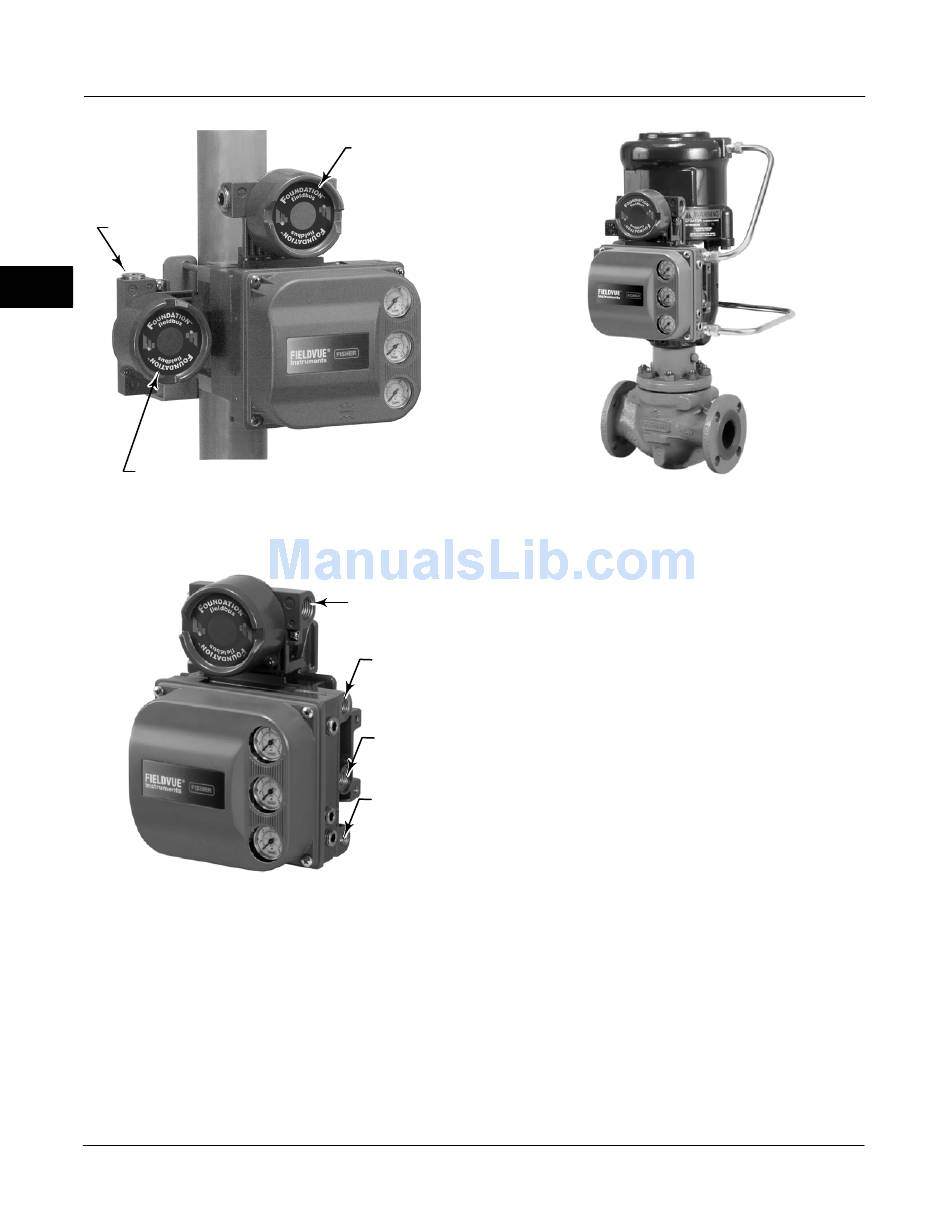

Figure 2-16. Pressure Connections

Single-Acting Actuators

When using a single-acting direct digital valve
controller (relay A or C) on a single-acting actuator
connect OUTPUT A to the actuator pneumatic input.
2-20
LOOP CONNECTIONS
TERMINAL BOX
W9132-1
Figure 2-17. FIELDVUE DVC6010f Digital Valve Controller
When using a single-acting reverse digital valve
controller (relay B) on a single-acting actuator connect
OUTPUT B to the actuator diaphragm casing.
1/2 NPT
CONDUIT
CONNECTIONS
(BOTH SIDES)

Double-Acting Actuators

DVC6000f digital valve controllers on double-acting
OUTPUT A
CONNECTION
actuators always use relay A. With no instrument
Fieldbus power (Zero Power Condition), OUTPUT A is
at 0 pressure and OUTPUT B is at full supply pressure
when the relay is properly adjusted.
SUPPLY
CONNECTION
To have the actuator stem retract into the cylinder with
Zero Power Condition, connect OUTPUT A to the
upper actuator cylinder connection. Connect OUTPUT
OUTPUT B
B to the lower cylinder connection. Figure 2-17 shows
CONNECTION
the digital valve controller connected to a
double-acting piston actuator.
To have the actuator stem extend from the cylinder
with Zero Power Condition, connect OUTPUT A to the
lower actuator cylinder connection. Connect OUTPUT
B to the upper cylinder connection.
Special Construction to Support Logic
Solver Initiated Solenoid Valve Health
Monitoring
In single-acting actuator applications with a solenoid
valve installed, the DVC6000f can be configured to
monitor the health of the solenoid valve test, which is
initiated by the Logic Solver. This is accomplished by
connecting the unused output port B from the
DVC6000f to the pneumatic monitoring line between
Mounted on Fisher 585C Piston Actuator
December 2009
