7 Maintenance and cleaning
7.5 Suction system
A
78
7.5

Suction system

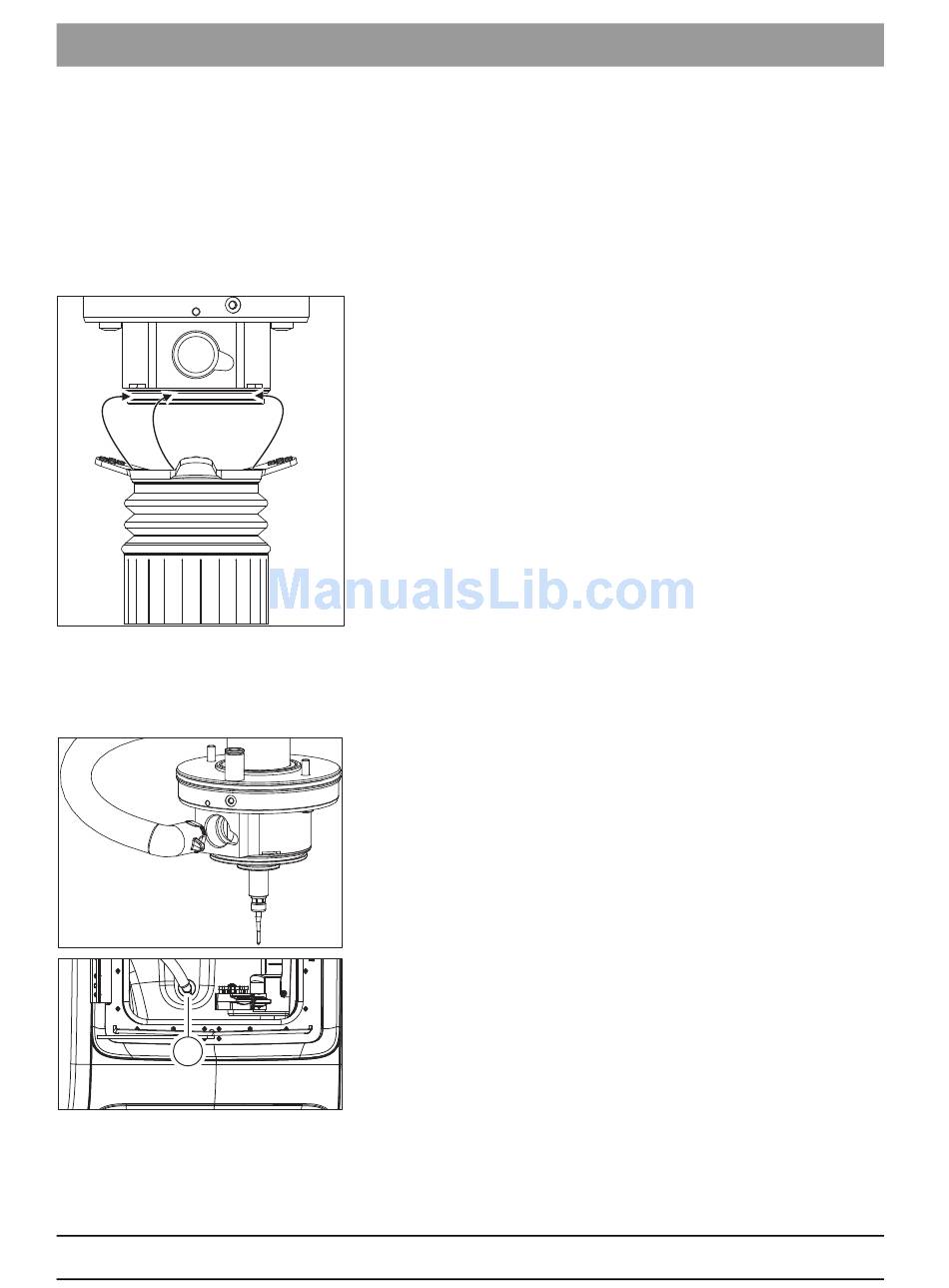

7.5.1

Suction bellows

The machine is equipped with suction bellows for the extraction of dust.
Check the suction bellows regularly for proper operation. If the slats are
broken, replace the suction bellows.
1. Pull the suction bellows off the mandrel using the rubber handles.
2. Use new suction bellows (REF 6496686) and fasten it by first
engaging the back part of the bellows into the groove of the mandrel.
3. Then pull the suction bellows over the mandrel by holding at the two
front rubber handles so that the bellows are engaged on all sides.
7.5.2

Mandrel suction

The machine is equipped with mandrel suction. Check the mandrel
suction monthly for proper operation.
1. Disconnect the suction hose of the mandrel suction from the mandrel.
2. Disconnect the suction hose of the mandrel suction (A) in the
processing chamber.
3. Check the suction hose for any deposits.
4. Clean the suction hose, if necessary, by blowing compressed air
through it.
5. Should the hose be defective, replace it with the correct spare part
(REF 6475029).
6. Reattach the suction hose to the mandrel suction as well as the
processing chamber (A).
