DENTSPLY Midwest Stylus ATC Maintenance Instructions

The Midwest
Handpiece Maintenance Instructions
Refer to DFU included with handpiece for detailed instructions on operation,
sterilization, warranty and ordering Information. Additional information can be
obtained at www.stylusatc.com or by calling 1.800.800.7202

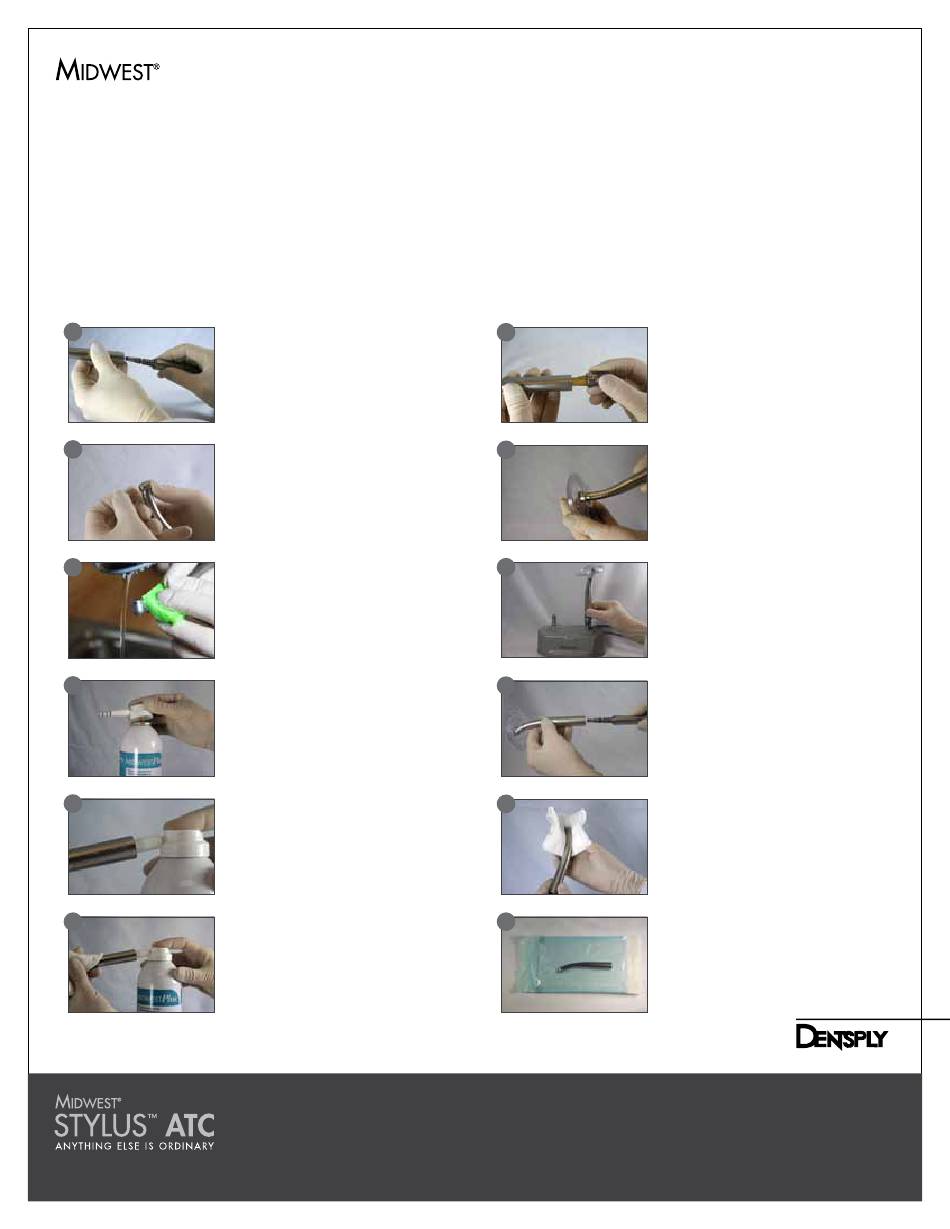

After Every Use
1
2
3
4
5
6
www.StylusATC.com
©2010 DENTSPLY. All rights reserved.
Stylus ATC
® ™
Disconnect handpiece from coupler.
Press push button and remove bur.
Scrub and rinse handpiece under warm
water with soft sponge. Scrub fiber-optic
light port well.
Connect ATC Lubrication Nozzle and Cap
assembly onto Midwest Aerosol Spray.
ATC Lubrication Nozzle Capp (880080)
Midwest Aerosol Spray (380080)
Fully insert nozzle into handpiece,
listening for a "click."
Cover handpiece head with paper
towel. Hold spray can upright; spray
for one second.
7 Connect ATC Maintenance Coupler
to back end of handpiece.
ATC Maintenance Coupler (880090)
8 Cover ATC handpiece head with
spray guard.
Spray Gaurd (380150)
Spray Guard (380150)
9 Connect handpiece to Midwest air
station with ATC Maintenance Coupler.
Run air through handpiece for 30
seconds at 40 psi to expel lubricant.
Midwest Air Station (380800)
10 If not using air station, connect to
4- or 5-hole hose to expel.
Caution: ATC Maintenance Coupler
must be used to expel lubricant. Do
not use the ATC controller unit to expel.
11 Wipe off excess lubricant on outside
of handpiece with dry gauze pad or
paper towel.
12 Steam sterilize handpiece (without bur)
at maximum 135˚C/275˚F (bagged cycle).
Technical Customer Service / Air Repair
1.800.800.7202
Code No. 87135-0610
