5.6

Universal Serial Bus (USB)

The conga-IC175 provides 10 USB ports - four on the rear connectors, four internally and two on the mini-PCIe and M.2 connectors.
5.6.1

Rear USB Connectors

The conga-IC175 offers four USB 3.0 ports (port 1-4) on the rear side. These ports are routed directly from the SoC to connectors X13 and X14.
The ports support also USB 2.0 devices.
USB Port 2
USB Port 1
Connector Type
X13,X14: Dual USB 3.0 type A (stacked) connector
Note
The +5V signals of connector X13 and X14 have a maximum current of 1A each.
Copyright © 2017 congatec AG

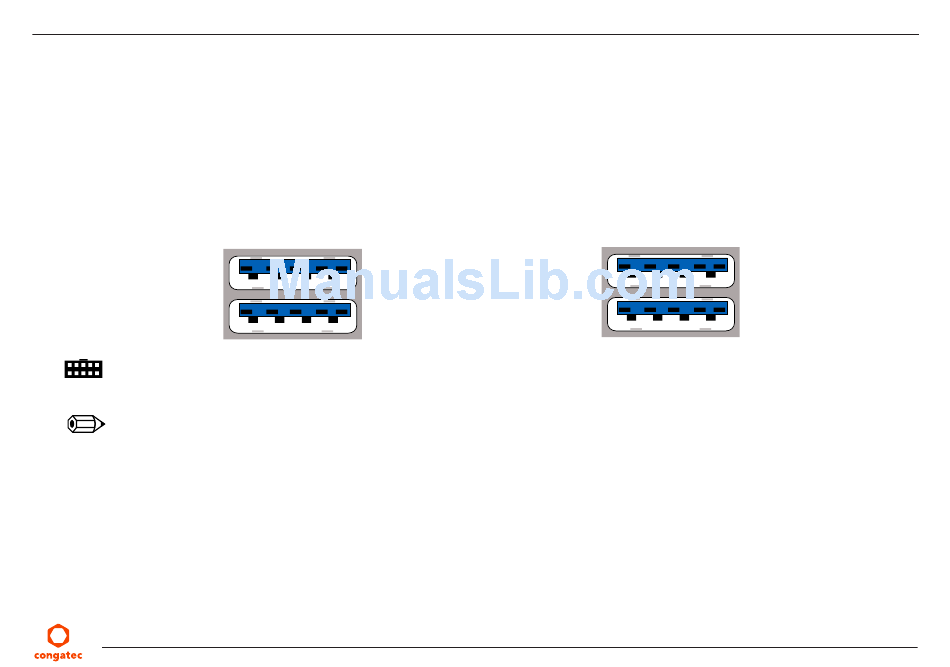

X13
18 17 16 15 14
10 11 12 13
9 8 7 6 5
1 2 3 4
X14
18 17 16
USB Port 4
10 11 12
9 8 7
USB Port 3
1 2 3
ICKLm02
15 14
13
6 5
4
