Date And Time; Gps Information - JDS Uniphase CellAdvisor JD720C Series User Manual

Chapter 3 Getting Started
Figure 4
No.
Model number
The instrument's model number is displayed: JD723C, JD724C, JD725C, or JD726C.

Date and time

The instrument's system clock setting that is set in the System menu is displayed. See
"Changing date and time" on page 31 for more information.

GPS information

If you have installed a license for your GPS connectivity option and connected a USB GPS
receiver, the instrument displays global positioning information of your test site.
28

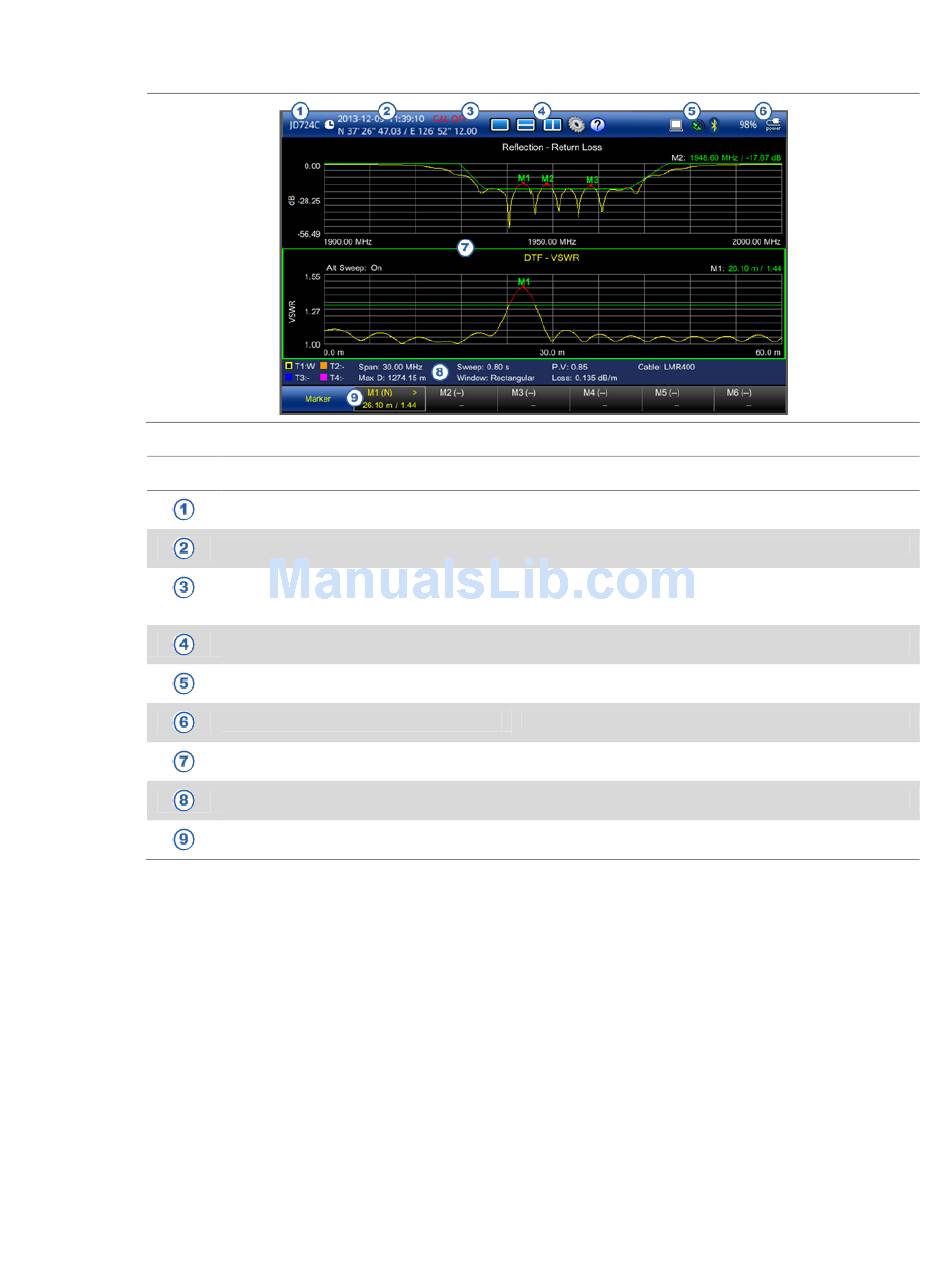

JD720C display screen view
Description
Model number
Shortcut – Date and time; GPS information if USB GPS receiver connected
Calibration status indicators –
CAL OFF
Shortcuts – Display layouts (single/dual horizontal/dual vertical), System, and Online Help
Port connection indicators, GPS lock status indicator, and Bluetooth connection status indicator
Power and battery status indicators
Measurement display pane
Trace and measurement setting information bar
Screen menu bar – Touch-screen interface allows fast and easy operation
CellAdvisor JD720C User's Manual
CAL ON, CAL ON (E), CAL ON (I), CAL ON (Q), CAL OFF (T),
