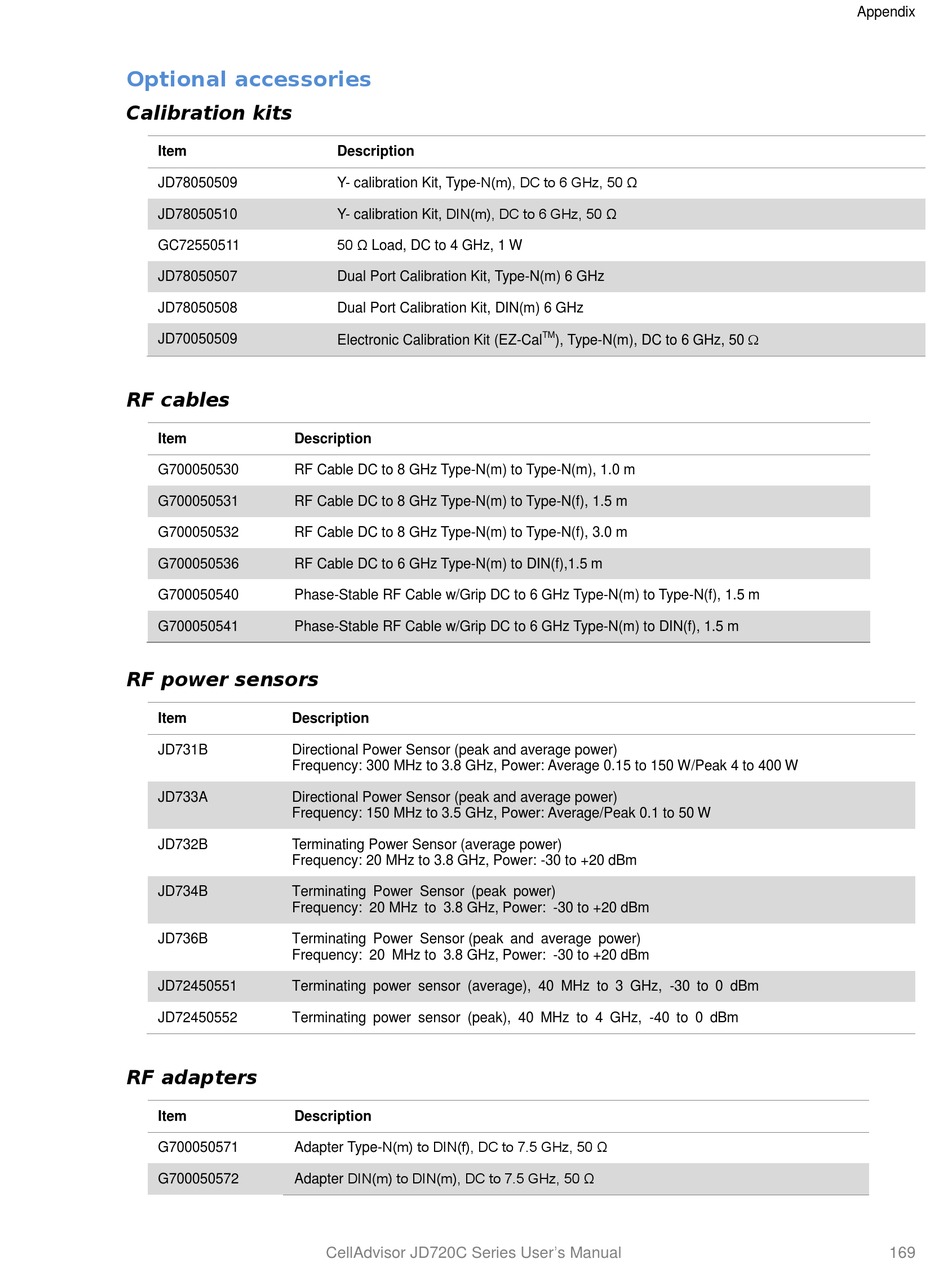

Optional accessories

Calibration kits
Item
JD78050509
JD78050510
GC72550511
JD78050507
JD78050508
JD70050509
RF cables
Item Description
G700050530 RF Cable DC to 8 GHz Type-N(m) to Type-N(m), 1.0 m
G700050531 RF Cable DC to 8 GHz Type-N(m) to Type-N(f), 1.5 m
G700050532 RF Cable DC to 8 GHz Type-N(m) to Type-N(f), 3.0 m
G700050536 RF Cable DC to 6 GHz Type-N(m) to DIN(f),1.5 m
G700050540 Phase-Stable RF Cable w/Grip DC to 6 GHz Type-N(m) to Type-N(f), 1.5 m
G700050541 Phase-Stable RF Cable w/Grip DC to 6 GHz Type-N(m) to DIN(f), 1.5 m
RF power sensors
Item Description
JD731B Directional Power Sensor (peak and average power)
Frequency: 300 MHz to 3.8 GHz, Power: Average 0.15 to 150 W/Peak 4 to 400 W
JD733A Directional Power Sensor (peak and average power)
Frequency: 150 MHz to 3.5 GHz, Power: Average/Peak 0.1 to 50 W
JD732B Terminating Power Sensor (average power)
Frequency: 20 MHz to 3.8 GHz, Power: -30 to +20 dBm
JD734B Terminating Power Sensor (peak power)
Frequency: 20 MHz to 3.8 GHz, Power: -30 to +20 dBm
JD736B Terminating Power Sensor (peak and average power)
Frequency: 20 MHz to 3.8 GHz, Power: -30 to +20 dBm
JD72450551 Terminating power sensor (average), 40 MHz to 3 GHz, -30 to 0 dBm
JD72450552 Terminating power sensor (peak), 40 MHz to 4 GHz, -40 to 0 dBm
RF adapters
Item Description
Adapter Type-N(m) to DIN(f), DC to 7.5 GHz, 50 Ω
G700050571
Adapter DIN(m) to DIN(m), DC to 7.5 GHz, 50 Ω
G700050572
Description
Y- calibration Kit, Type-N(m), DC to 6 GHz, 50 Ω
Y- calibration Kit, DIN(m), DC to 6 GHz, 50 Ω
50 Ω Load, DC to 4 GHz, 1 W
Dual Port Calibration Kit, Type-N(m) 6 GHz
Dual Port Calibration Kit, DIN(m) 6 GHz
Electronic Calibration Kit (EZ-Cal
CellAdvisor JD720C Series User's Manual
TM ), Type-N(m), DC to 6 GHz, 50 
