Figure 84

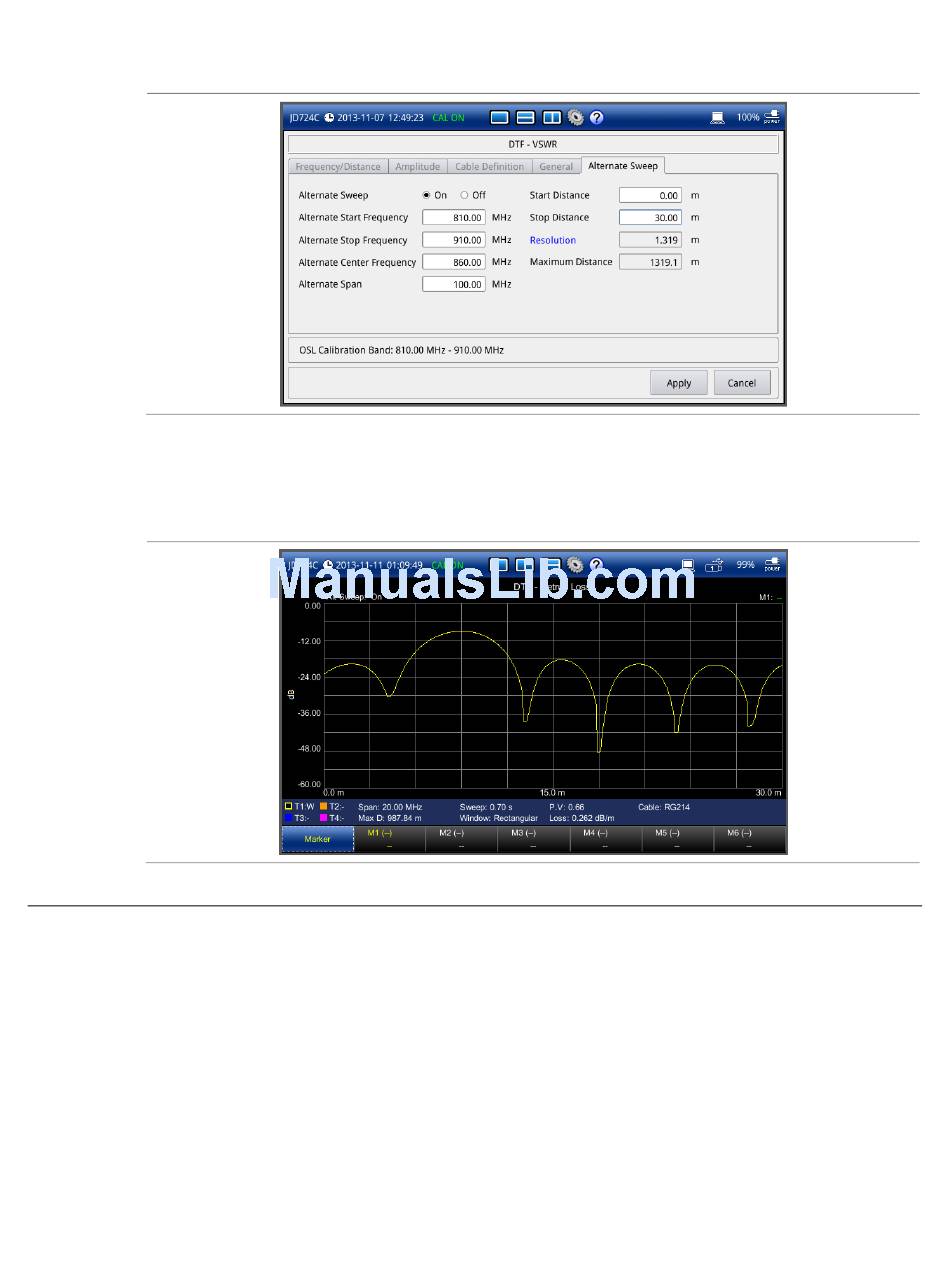

Example of alternate sweep
Figure 85
Using markers
You can have up to six markers on the measurement display simultaneously. The instrument
displays the Marker screen menu bar by default. As you set a marker on the trace, you can
see readouts of each marker position that is displayed in its marker screen key on the Marker
screen menu bar.
A marker's screen key with the symbol ">" in yellow indicates that the marker is the active
marker now and you can manipulate it as you like including changing marker type or setting
the marker off. The measurement display carries the active marker's position readouts at the
top right corner on the display.
Alternate sweep setting window
DTF return loss measurement with alternate sweep on
CellAdvisor JD720C Series User's Manual
Chapter 16 Analysis
129
