Chapter 16 Analysis

Using zoom zones

User-definable zones on frequency sub-bands enable visual identification of uplink and
downlink frequencies for compliance verification with a single measurement window.
You can use the Zoom function to have a closer look at the user-definable zoom zones in
different windows up to three zones. All the three zoom zones are turned off by default. It is
available for Reflection, 1 Port Cable Loss, 1 Port Phase, 2 Port Transmission, and 2 Port
Phase measurement in the single layout view.

Setting sub-band frequency

Procedure
1
2
3
4

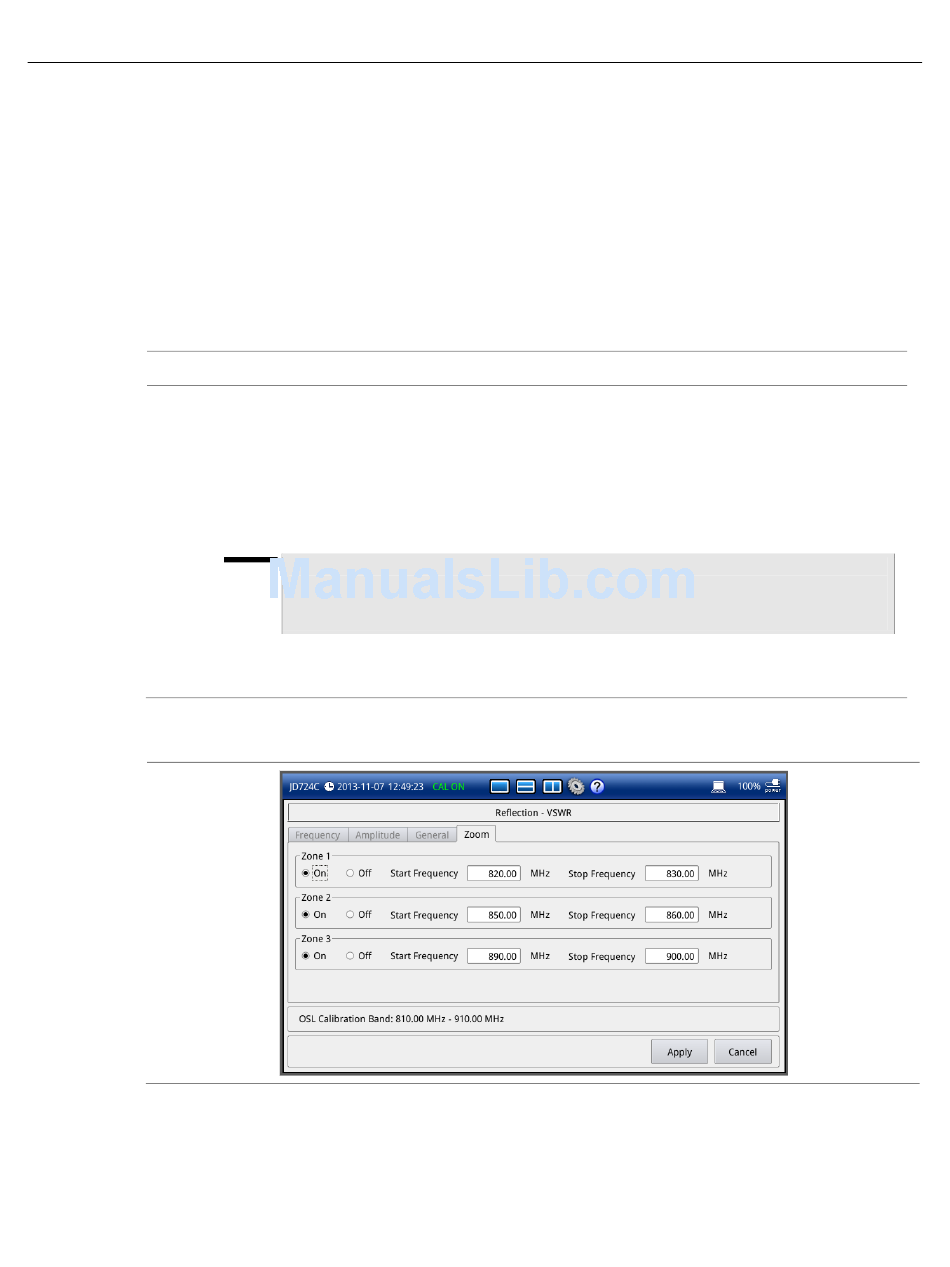

Figure 82
126
Press the SETUP hard key and then touch the Zoom tab.
The zoom zone setting window appears as shown in Figure 82.
To enable a zoom zone, complete the following steps:
a Select On in the Zone [1|2|3] pane.
b Touch the Start Frequency input box and then enter a value.
c Touch the Stop Frequency input box and then enter a value.
NOTE
You can change the sub-band frequencies later directly from the measurement screen
by using the Zone Start and Stop frequencies screen menu. See "Changing sub-band
frequency" on page 127.
To disable a zoom zone, select Off for the zoom zone.
Tap the Apply button in the lower-right corner of the screen to save and exit.
Zoom zone setting window
