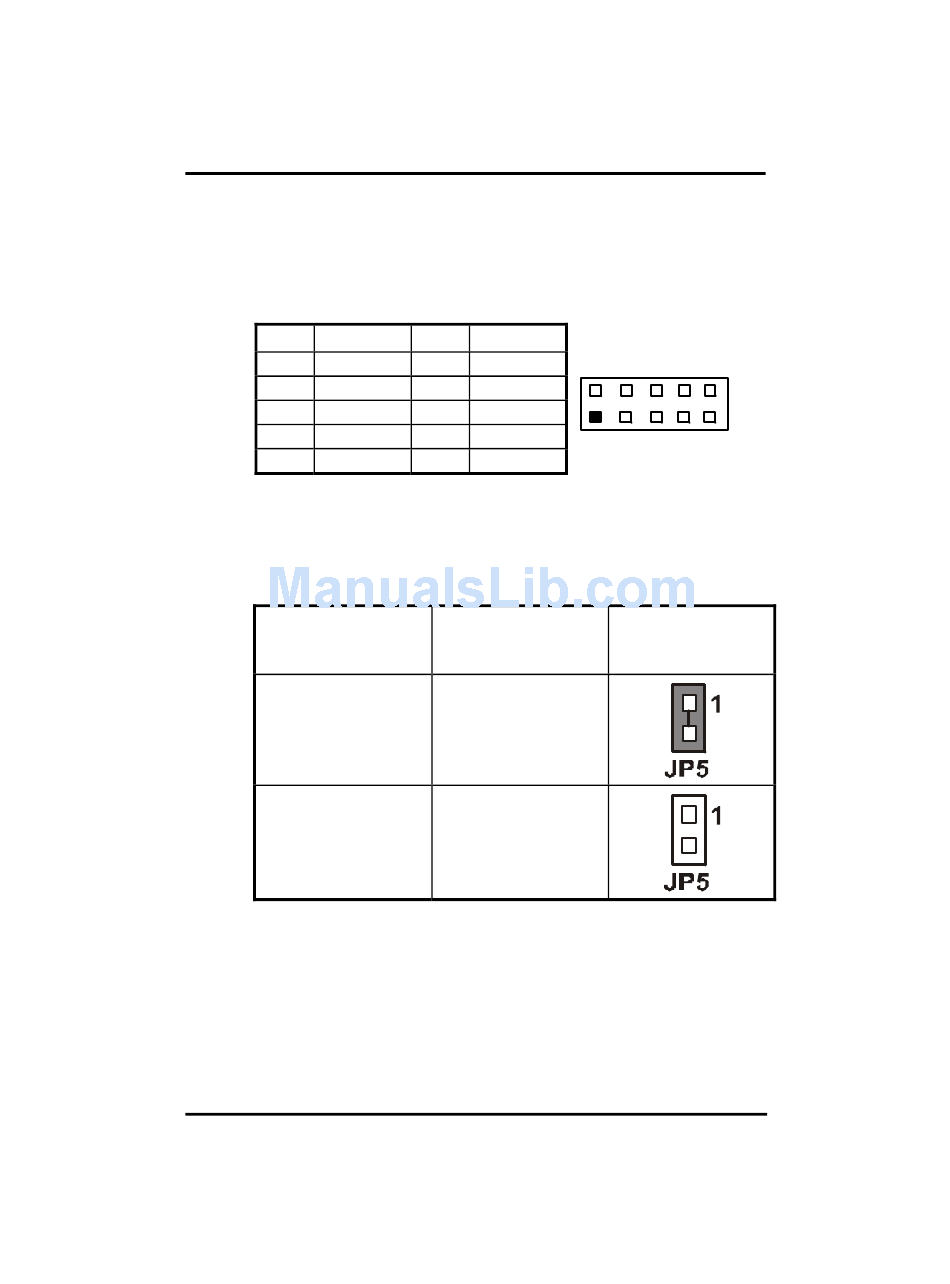

Audio Connector

JP4: Audio Connector
The pin assignments are as follows:
Pin Signal
MIC-IN
1
Line In L
3
Line In R
5
Audio Out L
7
Audio Out R
9
2.31 CF Card Master/Slave Selection
JP5: CompactFlash Card Master/Slave Selection.
The selections are as follows:
FUNCTION
Master
Slave
*** Manufactory default --- Master.
Hardware Configuration
® ®
SBC81870 Intel Pentium
Pin Signal
GND
2
GND
4
GND
6
GND
8
GND
10
JUMPER
SETTING
(pin closed)
1-2
Open
M w/ DDR/VGA/Dual LAN
2 4 6 8 10
1 3 5 7 9
JUMPER
ILLUSTRATION
