2.35 LVDS Panel Voltage Selection

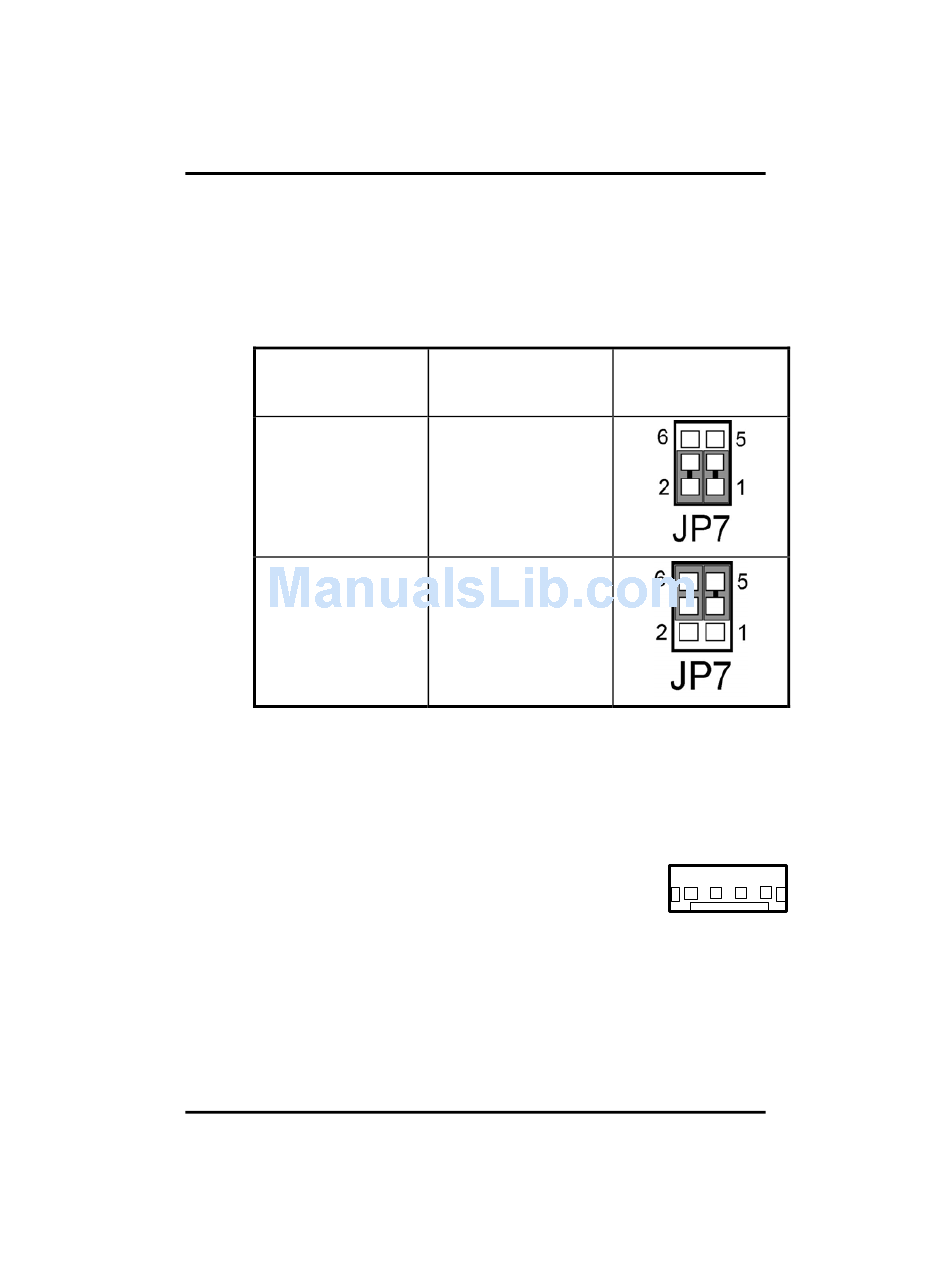

JP7: LCD-Vcc of LVDS connector (J2) Voltage Selection.
The selections are as follows:
SELECTION
LVDS_3.3V
LVDS_5V
*** Manufactory default --- LVDS_3.3V
2.36 CD AUDIO-IN CONNECTOR
JCDIN1 : CD Audio-In Connector
The pin assignments are as follows:
38
® ®
SBC81870 Intel Pentium
JUMPER SETTING
1-3
2-4
3-5
4-6
Hardware Configuration
M w/ DDR/VGA/Dual LAN
JUMPER
ILLUSTRATION
1
JCDIN1
