2.15

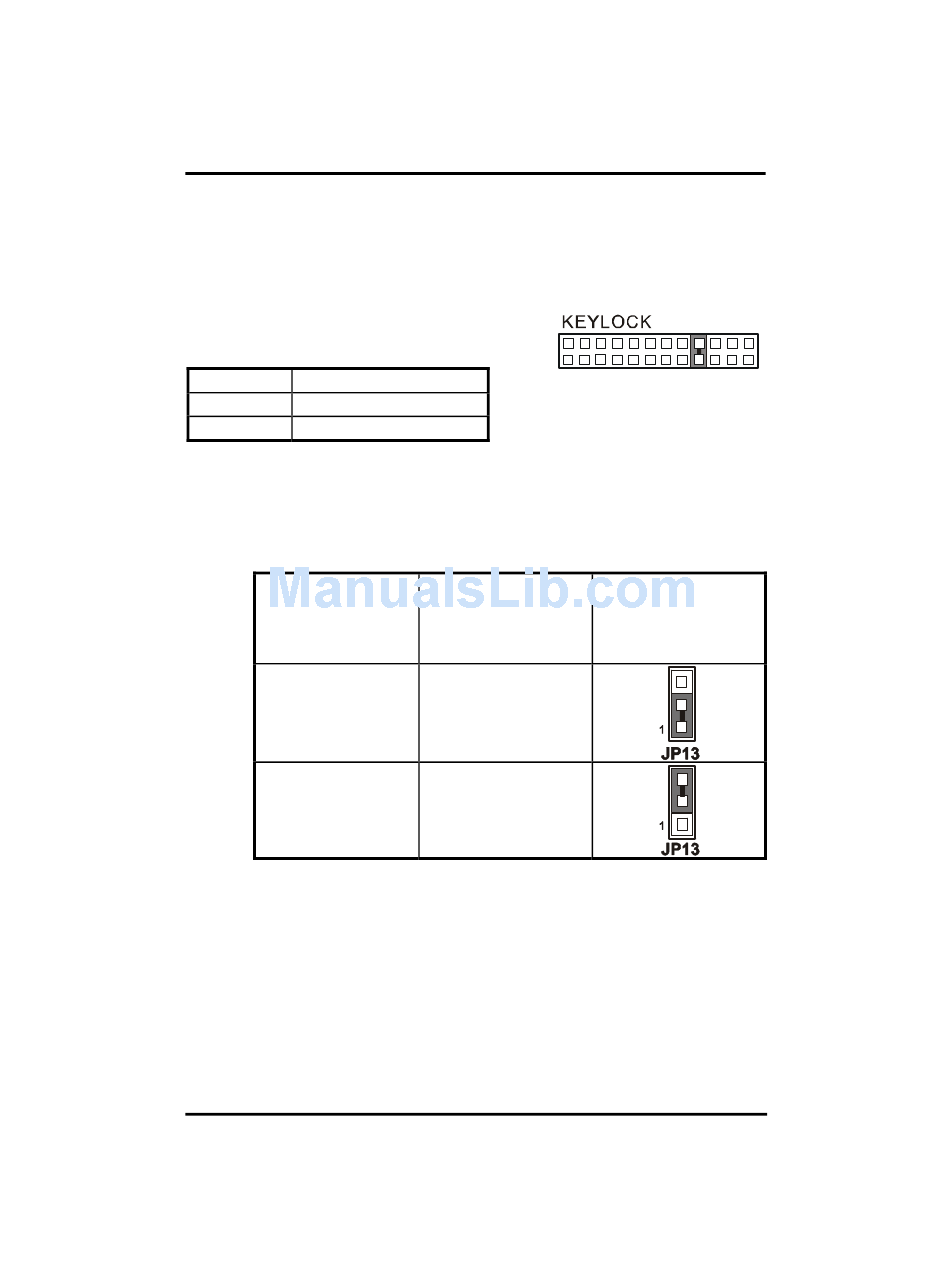

Keylock Connector

JPAENL (17, 18): Keylock Connector
The pin assignment is as follows:
PIN ASSIGNMENT
17 KEYLOCK
18 GND
2.16 Clear CMOS Data Selection
JP13: Clear CMOS Data Selection
The selections are as follows:
FUNCTION
Normal
Clear CMOS
*** Manufacturing Default is set as Normal.
Note: To clear CMOS data, user must power-off the computer and
set the jumper to "Clear CMOS" as illustrated above. After
five to six seconds, set the jumper back to "Normal" and
power-on the computer.
Hardware Configuration
® ®
SBC81870 Intel Pentium
1
JUMPER
SETTING
(pin closed)
1-2
2-3
M w/ DDR/VGA/Dual LAN
JPANEL1
JUMPER
ILLUSTRATION
21
