2.19

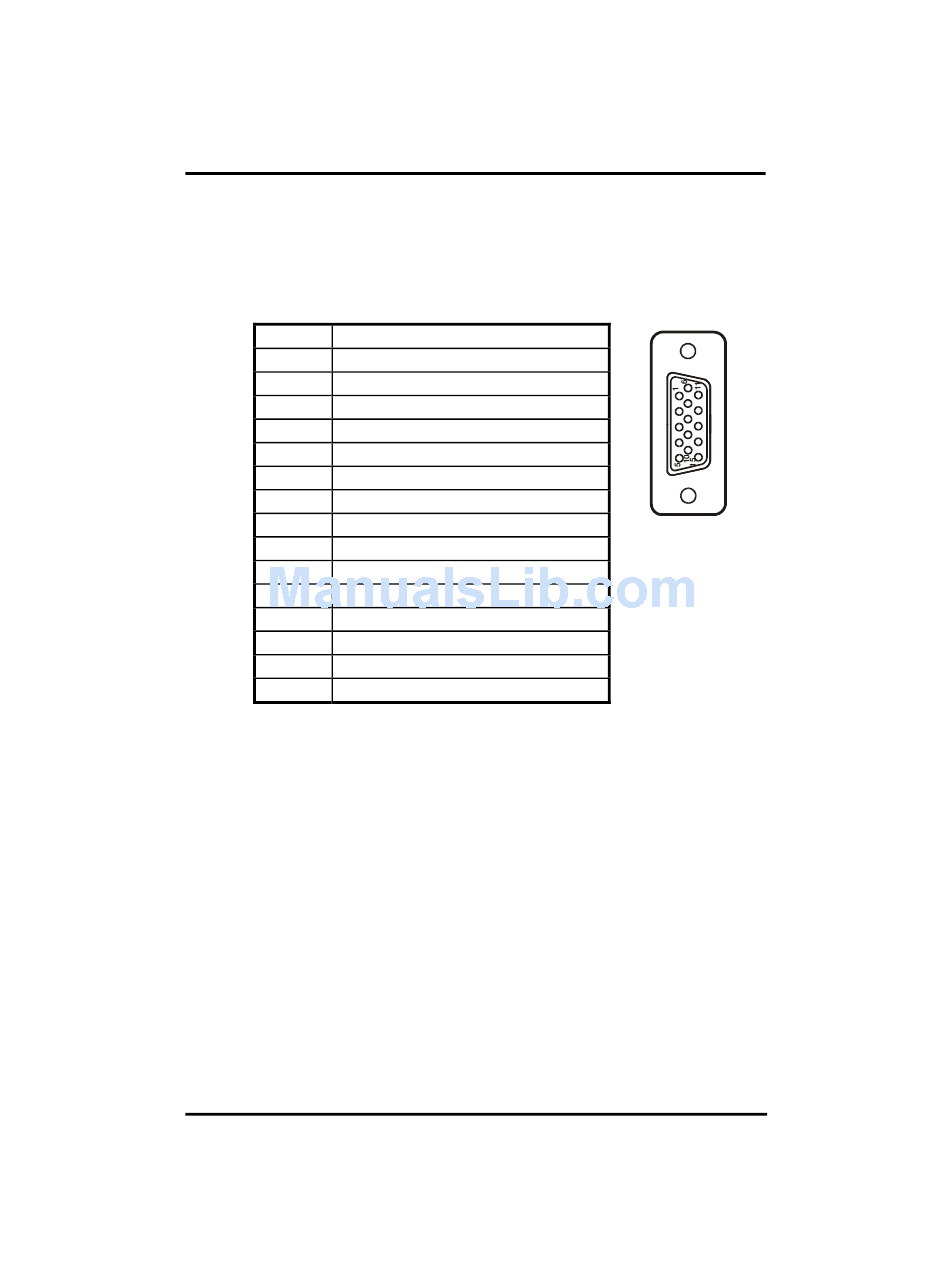

VGA Connector
VGA: VGA CRT Connector
The pin assignments are as follows:
PIN
ASSIGNMENT
1
RED
2
GREEN
3
BLUE
4
NC
5
GND
6
GND
7
GND
8
GND
9
VCC
10
GND
11
NC
12
VGA DDA
13
HSYNC
14
VSYNC
15
VGA DDC CLK
Hardware Configuration
®
®
SBC81870 Intel
Pentium
M w/ DDR/VGA/Dual LAN
VGA
23
