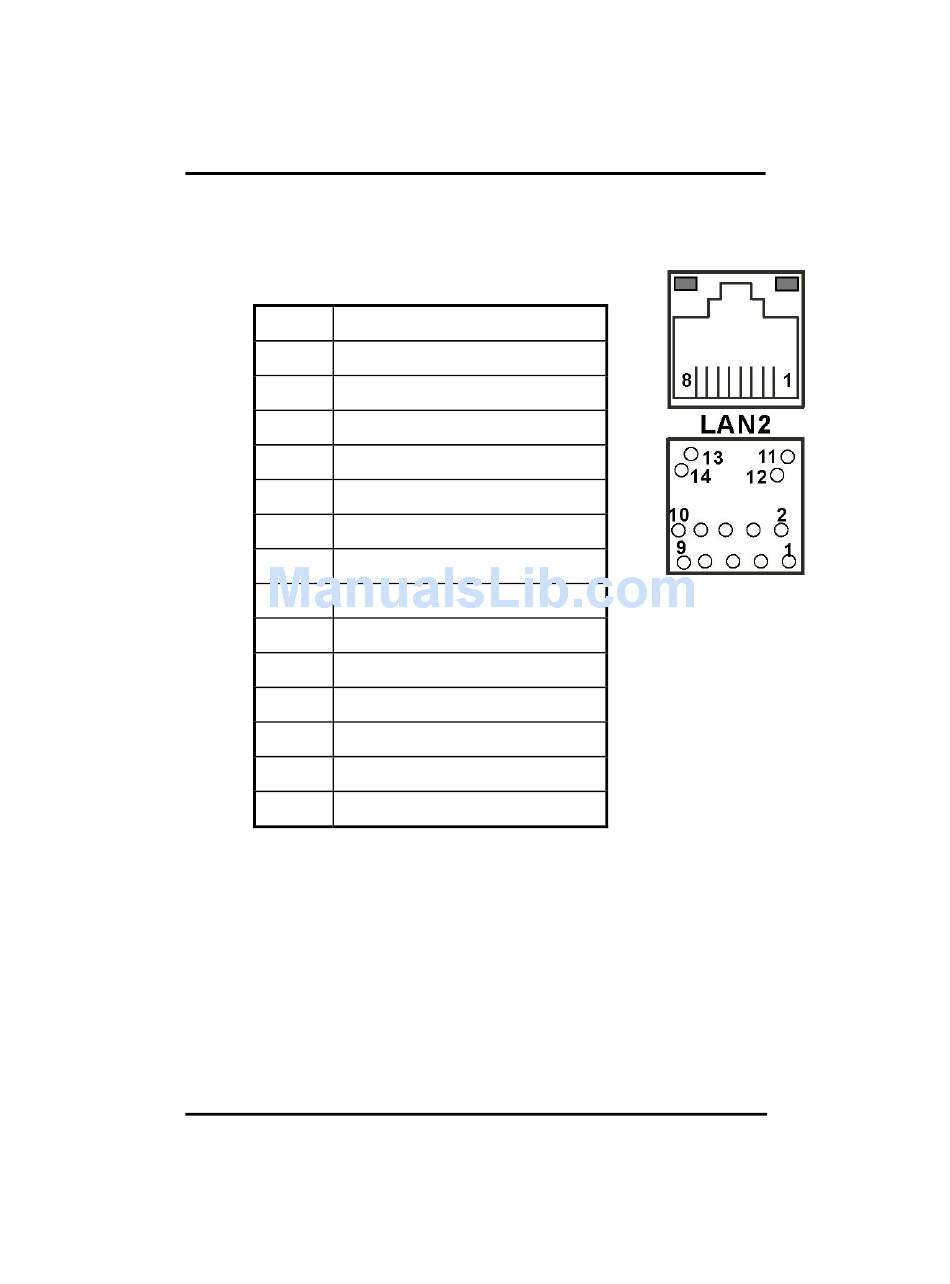

LAN2: LAN Connector
The pin assignments are as follows:
PIN
ASSIGNMENT
1
1MDI_0+
2
1MDI_0-
3
1MDI_1+
4
1MDI_1-
5
1V8SB_LAN
6
CGND
7
1MDI_2+
8
1MDI_2-
9
1MDI_3+
10
1MDI_3-
11
1SPEED100J
12
1SPEED1000J
13
1LINK
14
1ACT
Hardware Configuration
®
®
SBC81870 Intel
Pentium
M w/ DDR/VGA/Dual LAN
31
