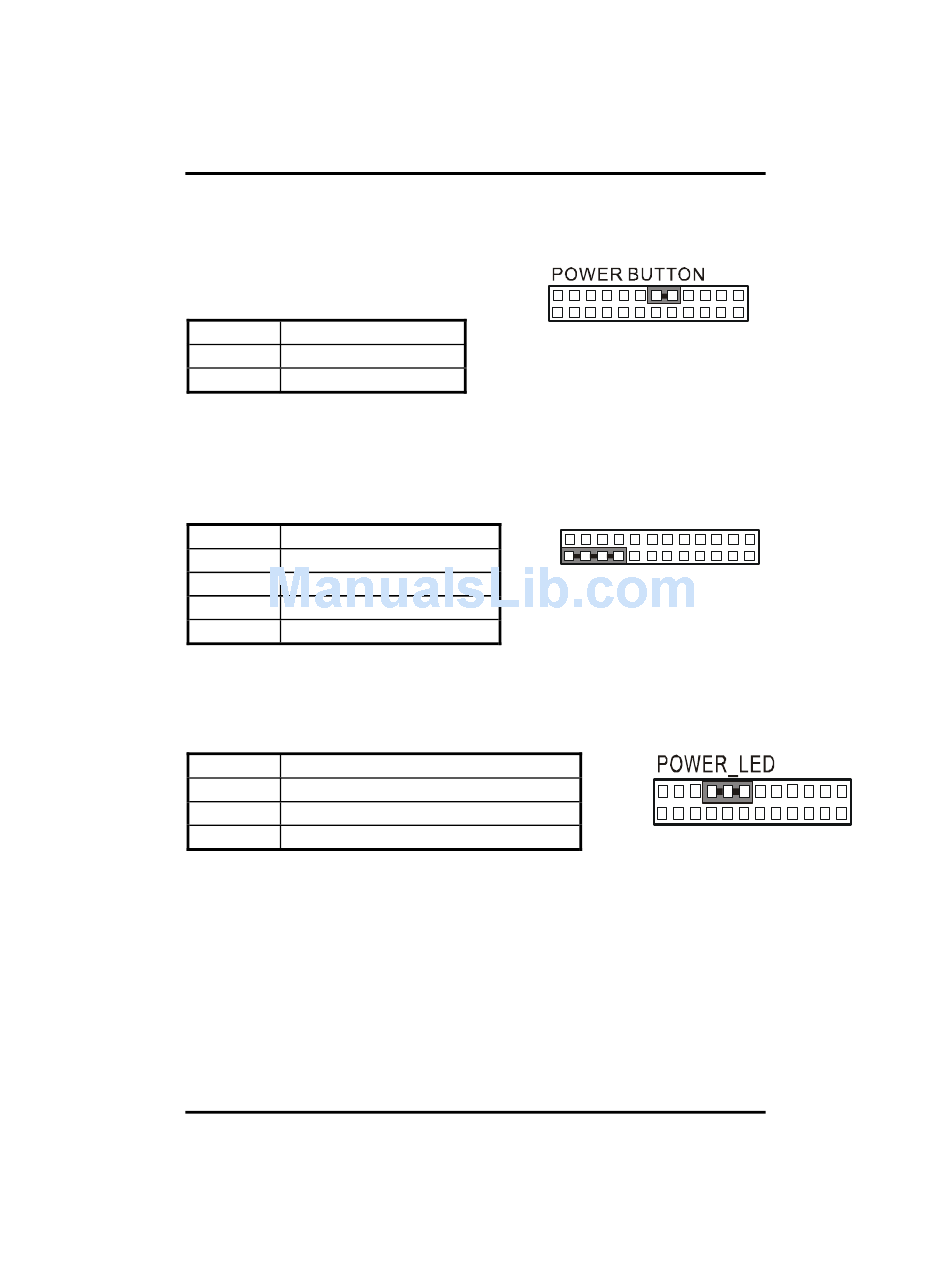

2.12

ATX Power Button

JPANEL (14, 16): ATX Power Button
The pin assignment is as follows:
PIN ASSIGNMENT
14 PWR_BN1
16 PWR_BN2
2.13 External Speaker Connector
JPANEL (1, 3, 5, 7): External Speaker Connector
The pin assignment is as follows:
PIN ASSIGNMENT
1 SPEAKER SIGNAL
3 NC
5 NC
7 SPK_VCC
2.14 Power LED Connector
JPAENL (8,10,12) : Power LED Connector
The pin assignment is as follows:
PIN ASSIGNMENT
8 Power LED+
10 Power LED-
12 GND
20
® ®
SBC81870 Intel Pentium
1
SPEAKER
1
Hardware Configuration
M w/ DDR/VGA/Dual LAN
JPANEL1
JPANEL1
1
JPANEL1
