Reset/Nmi/Clear Watchdog Selection - AXIOMTEK SBC81870 Series User Manual

2.29

Reset/Nmi/Clear Watchdog Selection

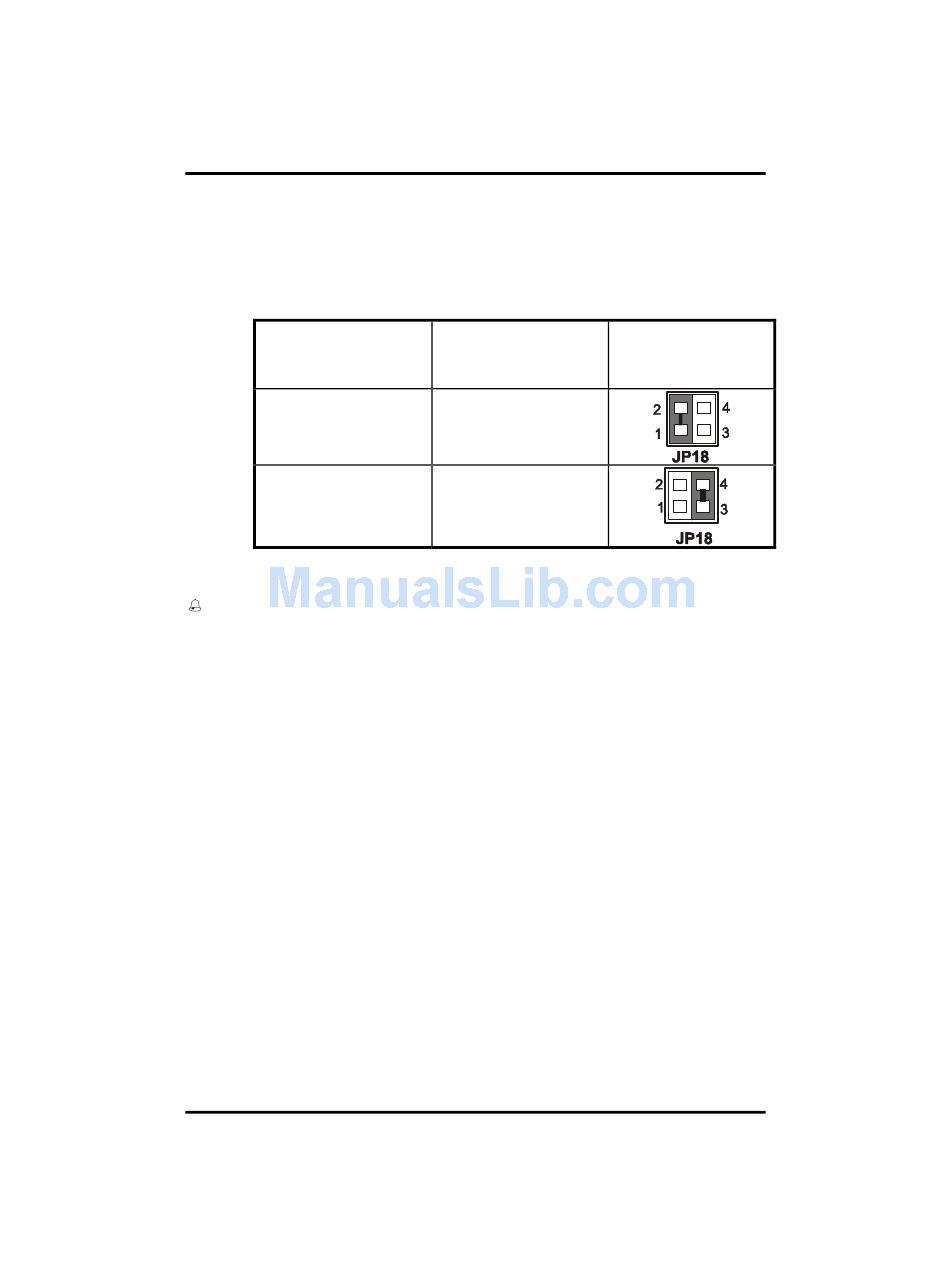

JP18: Reset/NMI/Clear Watchdog Selection
The selections are as follows:
FUNCTION
RESET
NMI
***Manufacturing Default is set as open.
User may select to use the Reset or NMI watchdog. NMI, also
known as Non-Maskable Interrupt, is used for serious conditions
that demand the processor's immediate attention, it cannot be
ignored by the system unless it is shut off specifically.
34
® ®
SBC81870 Intel Pentium
JUMPER
SETTING
(pin closed)
1-2
3-4
Hardware Configuration
M w/ DDR/VGA/Dual LAN
JUMPER
ILLUSTRATION
