2.17
CPU Fan Connector

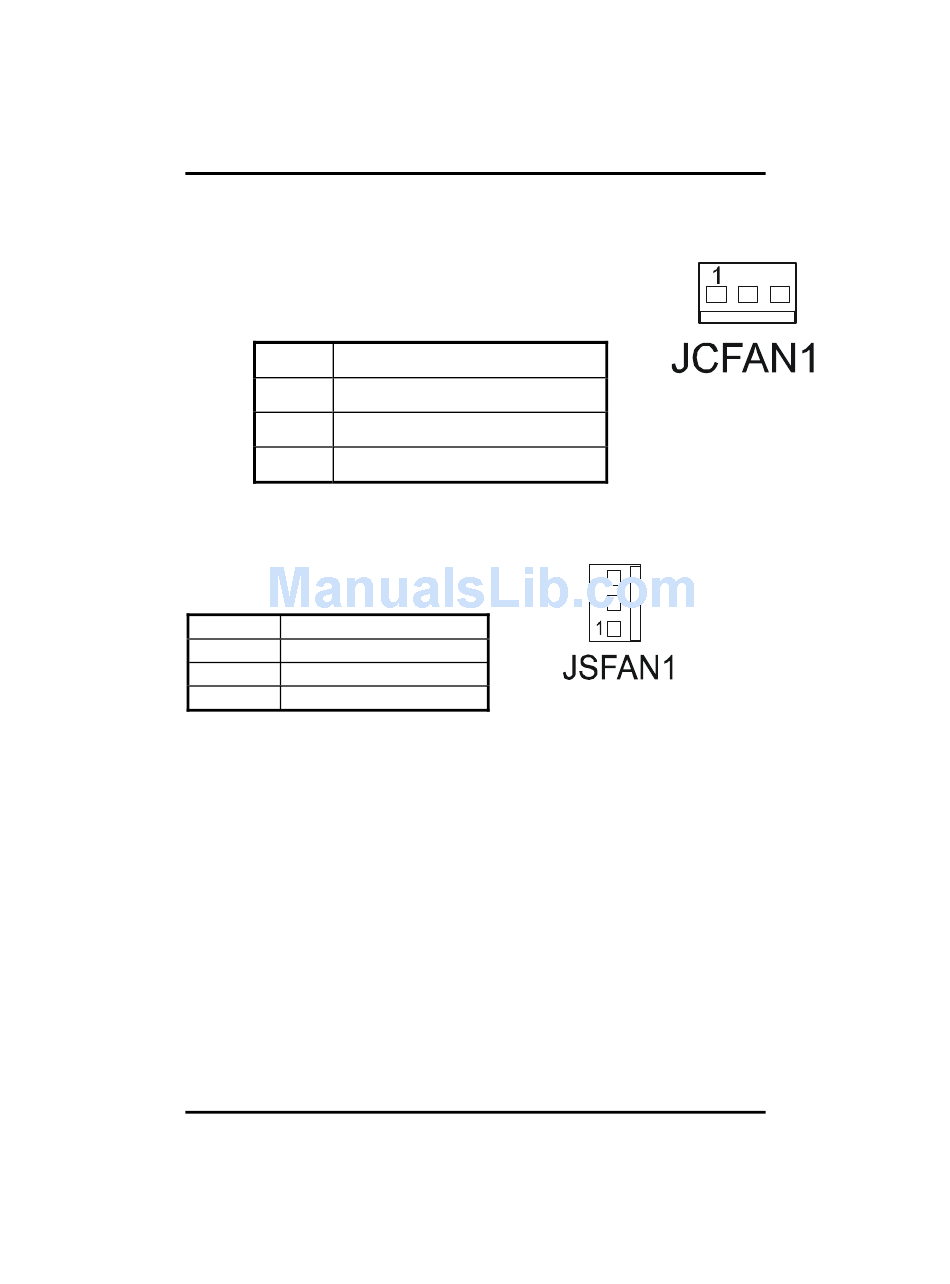

JCFAN1 : CPU Fan connector
The pin assignment is as follows:
PIN
ASSIGNMENT
1
GND
2
+12V
3
Sensor pin
2.18
System Fan Connector
JSFAN1: System Fan connector
The pin assignment is as follows:
PIN
ASSIGNMENT
1
GND
2
+12V
3
Sensor pin
22
®
®
SBC81870 Intel
Pentium
Hardware Configuration
M w/ DDR/VGA/Dual LAN
