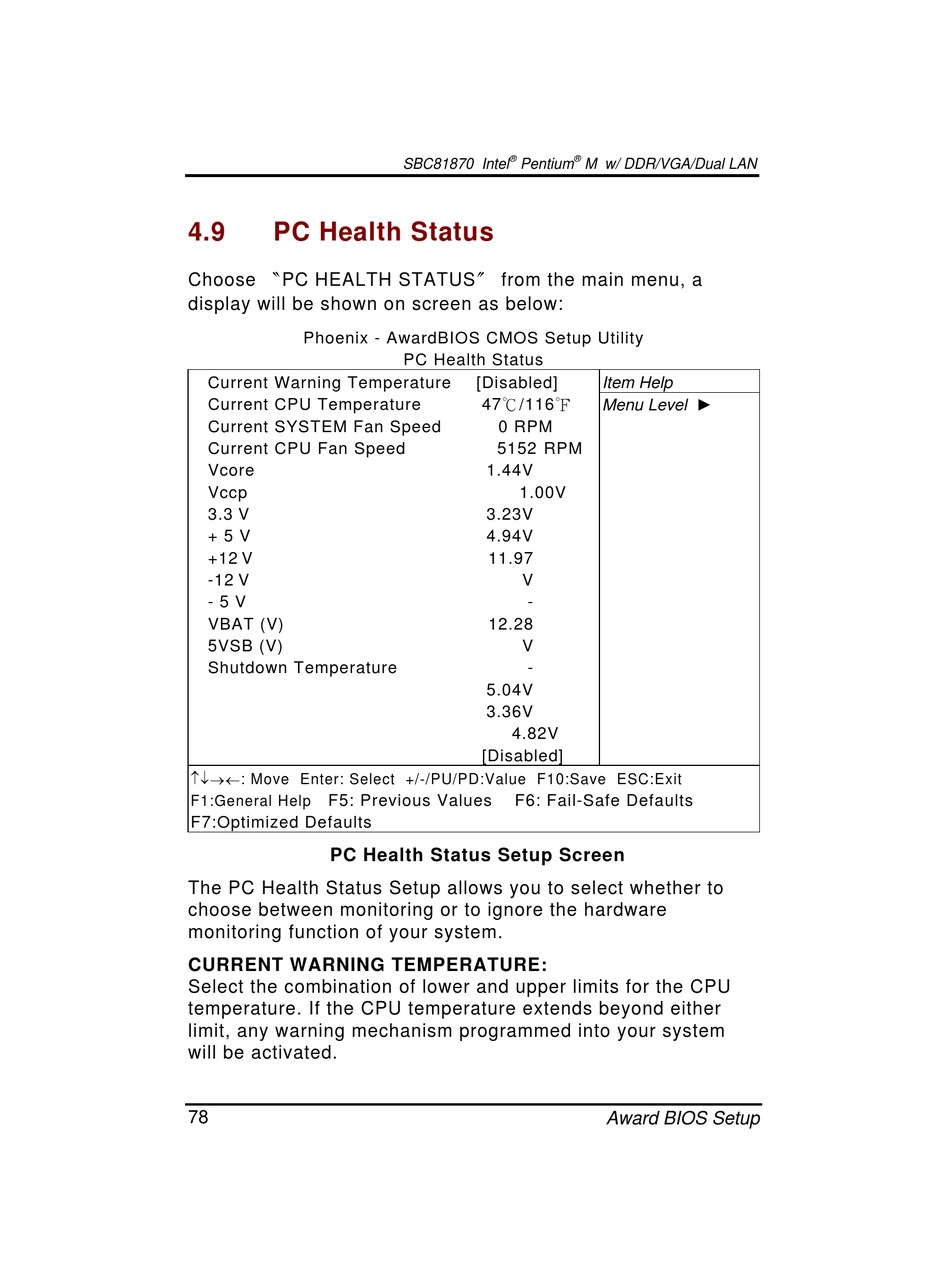

PC Health Status

Choose 〝PC HEALTH STATUS〞 from the main menu, a
display will be shown on screen as below:
Phoenix - AwardBIOS CMOS Setup Utility
Current Warning Temperature
Current CPU Temperature
Current SYSTEM Fan Speed
Current CPU Fan Speed
Vcore
Vccp
3.3 V
+ 5 V
+12 V
-12 V
- 5 V
VBAT (V)
5VSB (V)
Shutdown Temperature
↑↓→←: Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit
F5: Previous Values
F1:General Help
F7:Optimized Defaults
PC Health Status Setup Screen
The PC Health Status Setup allows you to select whether to
choose between monitoring or to ignore the hardware
monitoring function of your system.
CURRENT WARNING TEMPERATURE:
Select the combination of lower and upper limits for the CPU
temperature. If the CPU temperature extends beyond either
limit, any warning mechanism programmed into your system
will be activated.
