AXIOMTEK SBC81205 Series Quick Installation Manual

SBC81205 Series Quick Installation Guide

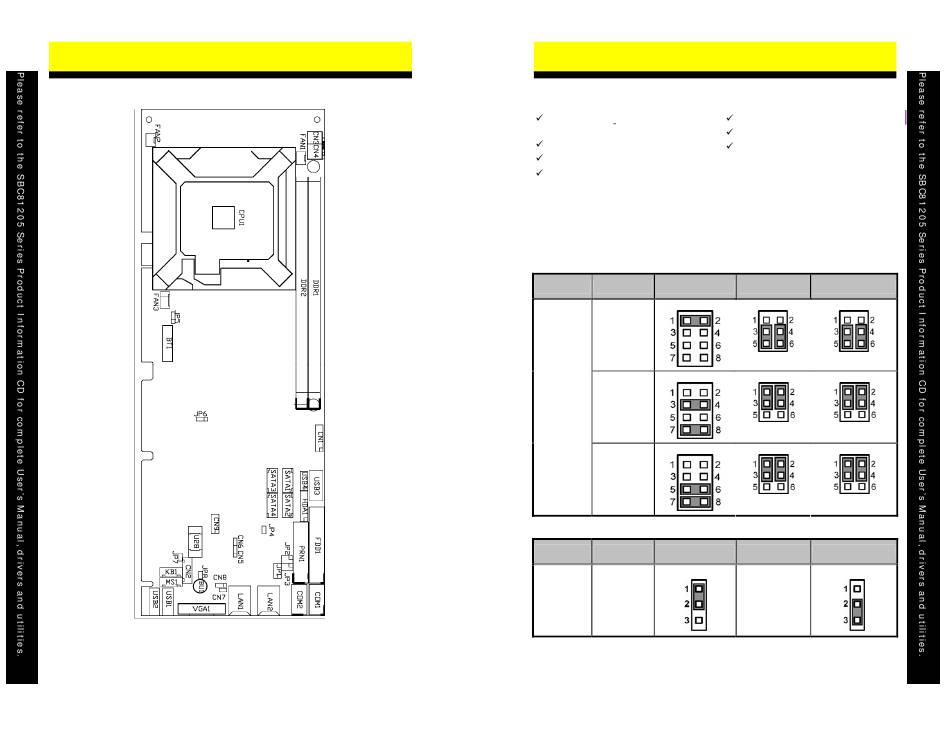

V. Board Layout
4
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A2 Dec 2009
Printed in Taiwan
94181205020E
SBC81205 Series Quick Installation Guide
I.
Checklist

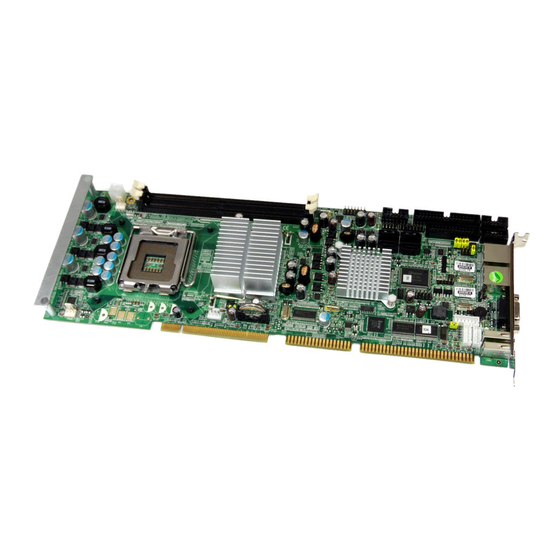

SBC81205VGG LGA775 PICMG 1.0 Full-
sized SBC x 1
Quick Installation Guide x 1
Product Information CD x 1
2-pin Mini Jumper Caps x 12
Note: Please contact your local vendors if any damaged or missing items.
DO NOT apply power to the board if any damaged components.
II.
Jumper Settings
Before applying the power to SBC81205 Series, please make sure
all jumper settings are defaulted as the following table:
Jumper Description Jumper Setting Jumper Setting
JP1
COM2 RS-232
(Default)
JP1
RS-422
JP1
RS-485
Jumper Description Jumper Setting
Clear CMOS Normal JP5
(Default)
©
Copyright 2009 AXIOMTEK Co., Ltd.
Version A2 Dec 2009
Printed in Taiwan
94181205020E
SATA Signal Cable x 2
FDD Flat Cable x 1
COM + Printer Cable x1 (with
Bracket)
Jumper Setting
JP2 JP3
JP2 JP3
JP2 JP3
Description Jumper Setting
Clear CMOS JP5
1
