IrDA Connector

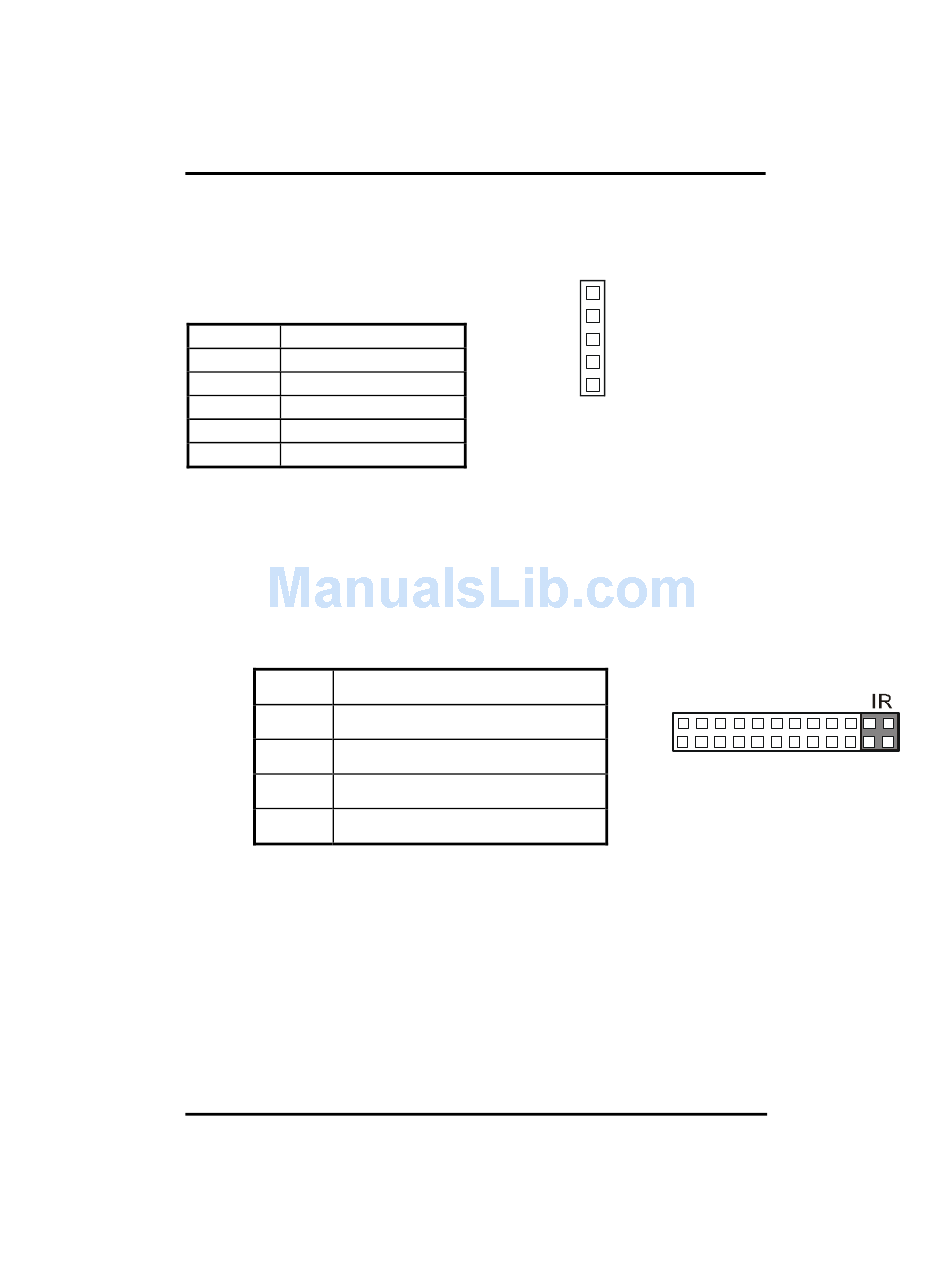

IRDA: IrDA (Infrared) Connector
The pin assignments are as follows:
PIN
ASSIGNMENT
1
VCC
2
NC
3
IRRX
4
GND
5
IRTX
JPANEL1 (21-24) : IrDA (Infrared) Connector
The pin assignments are as follows:
PIN
ASSIGNMENT
21
22
23
24
Hardware Configuration
®
SBC81870 Intel
Pentium
VCC
GND
IRTX2
IRRX2
®
M w/ DDR/VGA/Dual LAN
1
IRDA1
1
JPANEL1
29
