MANO315 Mini ITX Motherboard
2.4.1

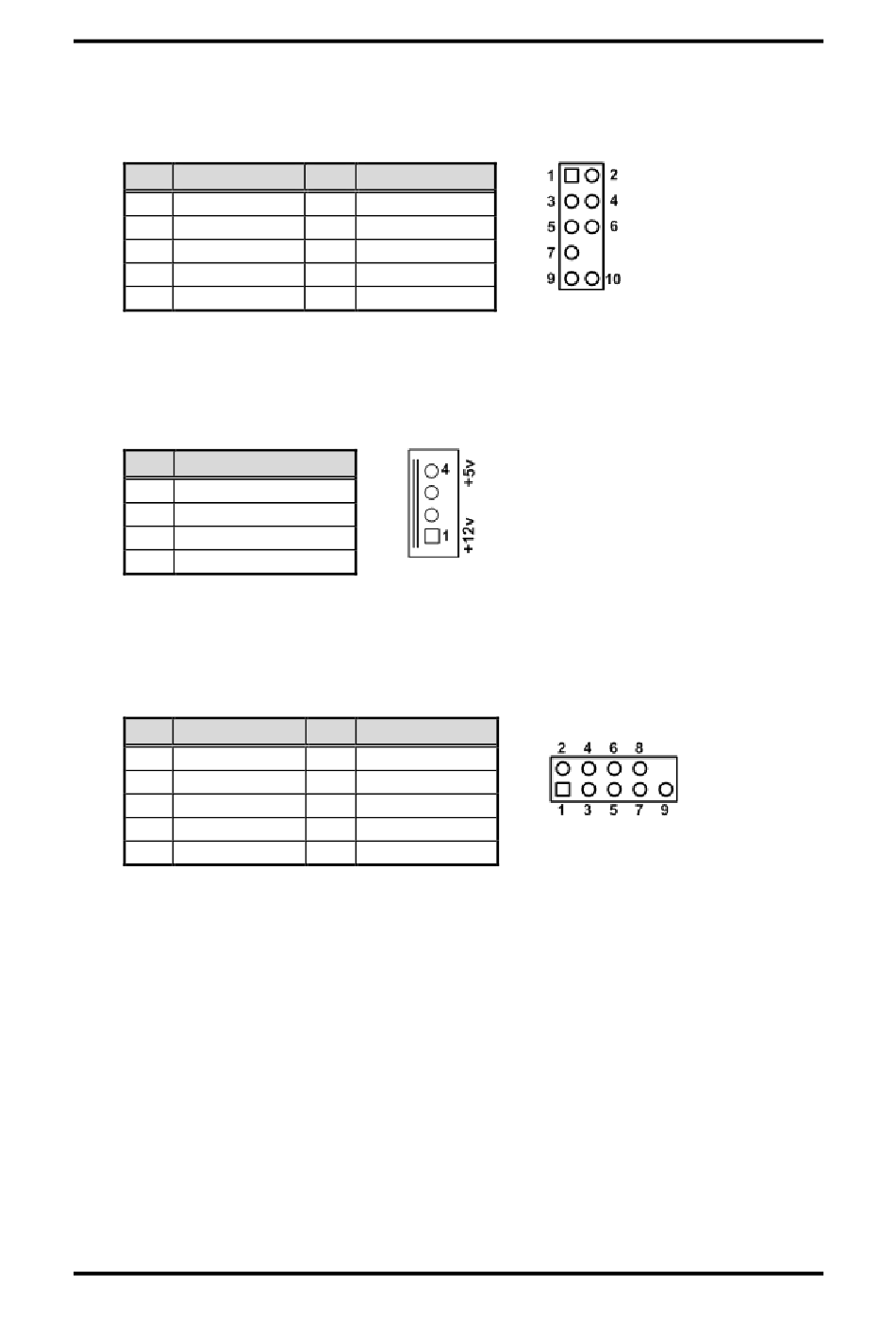

Front Audio Connector (F_AUDIO1)

This is a 5x2-pin (pitch=2.54mm) front audio connector for convenient connection and
control of audio devices.
Pin Signal
1 AUD_MIC_L
3 AUD_MIC_R
5 AUD_OUT_R
7 J_SENCE
9 AUD_OUT_L
2.4.2

SATA Power Connector (SATA_PWR1)

This is a 4-pin (pitch=2.0mm) connector for DC +12V and +5V power output.
Pin Signal
1 +12V
2 GND
3 GND
4 +5V
2.4.3

Internal COM Connectors (COM1 and COM2)

The motherboard has two 2x5-pin (pitch=2.54mm) internal connectors for COM1 and
COM2 port interfaces.
Pin Signal
1 DCD#
3 TXD#
5 GND
7 RTS#
9 RI#
10
Pin Signal
2 GND
4 PRESENCE#
6 MIC_RET
8
10 OUT_RET
Pin Signal
2 RXD#
4 DTR#
6 DSR#
8 CTS#
10 N.C
Board and Pin Assignments
