AXIOMTEK SBC8166 Series Quick Installation Manual

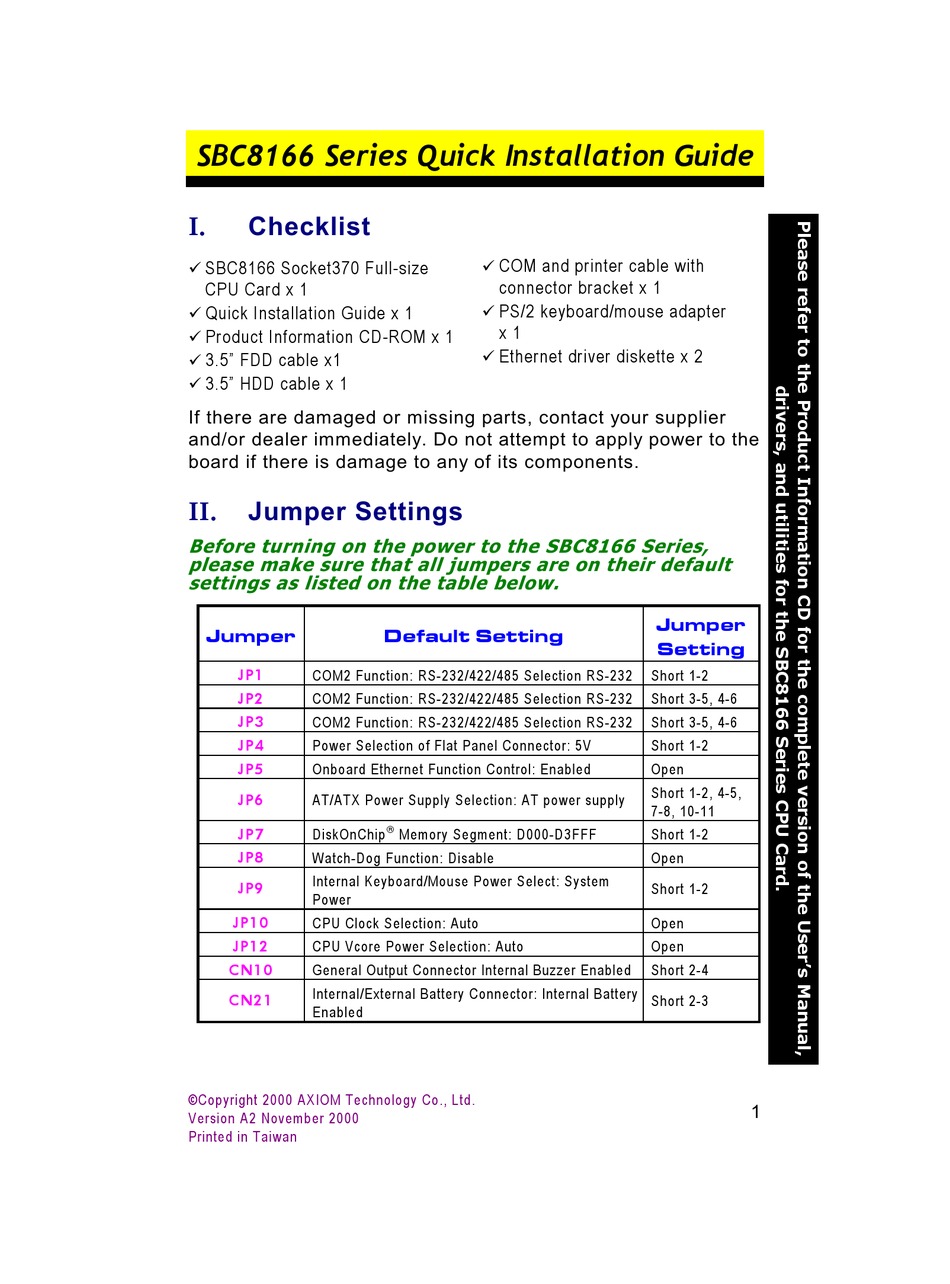

SBC8166 Series Quick Installation Guide


I.
SBC8166 Socket370 Full-size


CPU Card x 1
Quick Installation Guide x 1


Product Information CD-ROM x 1


3.5" FDD cable x1


3.5" HDD cable x 1





II.





Jumper
JP1 COM2 Function: RS-232/422/485 Selection RS-232
JP2
COM2 Function: RS-232/422/485 Selection RS-232
JP3 COM2 Function: RS-232/422/485 Selection RS-232
JP4
Power Selection of Flat Panel Connector: 5V
JP5 Onboard Ethernet Function Control: Enabled
JP6 AT/ATX Power Supply Selection: AT power supply
JP7
DiskOnChip
JP8 Watch-Dog Function: Disable
Internal Keyboard/Mouse Power Select: System
JP9
Power
JP10
CPU Clock Selection: Auto
JP12 CPU Vcore Power Selection: Auto
CN10
General Output Connector Internal Buzzer Enabled
Internal/External Battery Connector: Internal Battery
CN21
Enabled
©Copyright 2000 AXIOM Technology Co., Ltd.
Version A2 November 2000
Printed in Taiwan
COM and printer cable with


connector bracket x 1
PS/2 keyboard/mouse adapter


x 1
Ethernet driver diskette x 2


Default Setting

Memory Segment: D000-D3FFF
Jumper
Setting
Short 1-2
Short 3-5, 4-6
Short 3-5, 4-6
Short 1-2
Open
Short 1-2, 4-5,
7-8, 10-11
Short 1-2
Open
Short 1-2
Open
Open
Short 2-4
Short 2-3
