SHARP SERVICE MANUAL JX8200SM [1] FEATURES & [2] SYSTEM CONFIGURATIONS
[2] SYSTEM CONFIGURATIONS

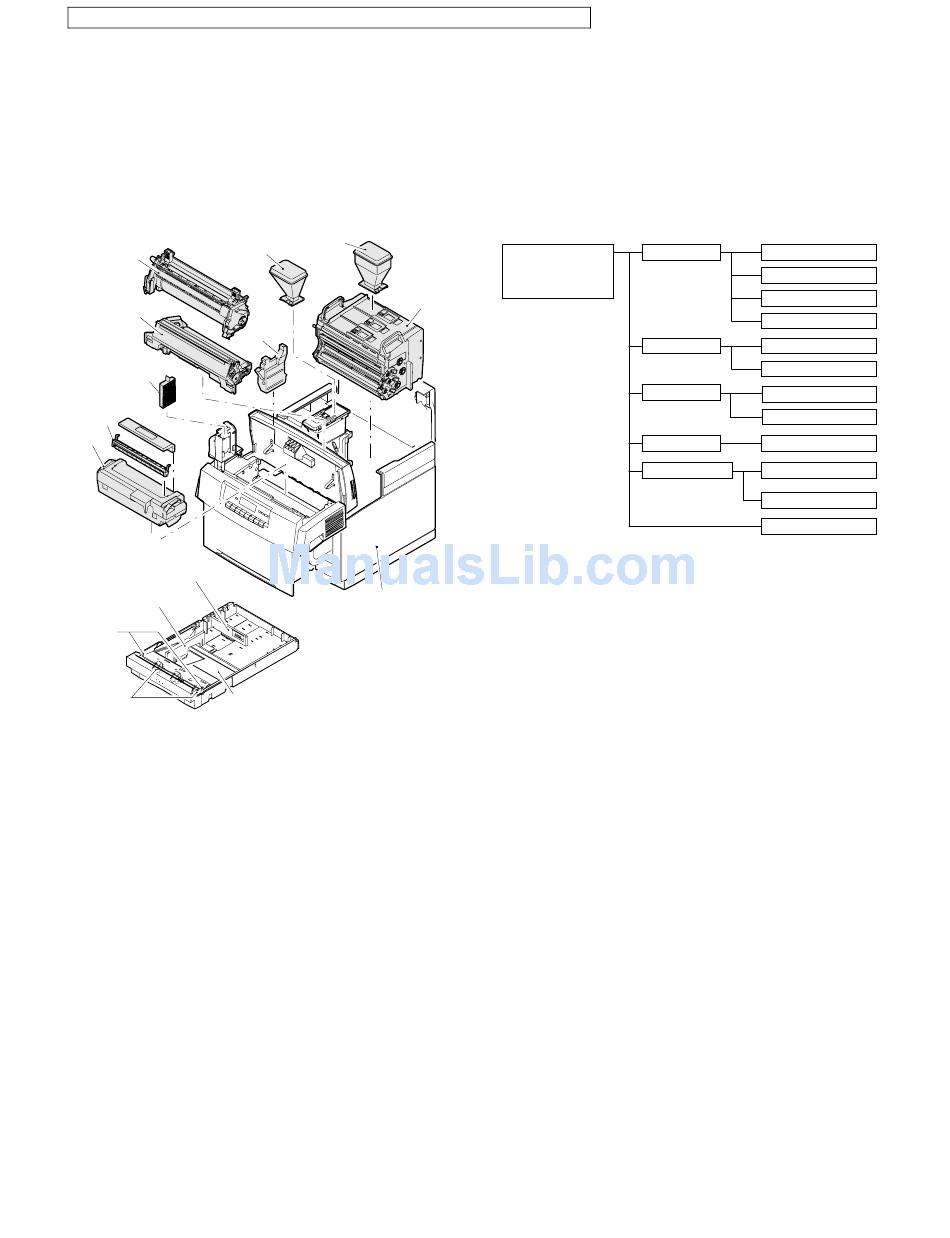

1. Hardware configurations

A. Consumables parts
Black Toner
Conductor
unit
Black
Developer
unit
Ozone
filter
Oil roller
Fuser
Unit
Paper cassette
(universal)
Paper size adjustment
plate(length)
Paper size adjustment
plate(width)
Separation
pawl
Pressure Pressure plate
spring
Color Toner
Color
Developer
Waste
toner box
Printer Unit
Consumable parts
2 – 1
Toner Color toner (C)
Color toner (M)
Color toner (Y)
Black toner
Color developing unit
Developing unit
Black developing unit
OPC drum OPC drum unit
Ozone filter
Fusing unit
Fusing unit
Fuser cleaner kit Fusing cleaner
Oil bottle
Waste toner box
