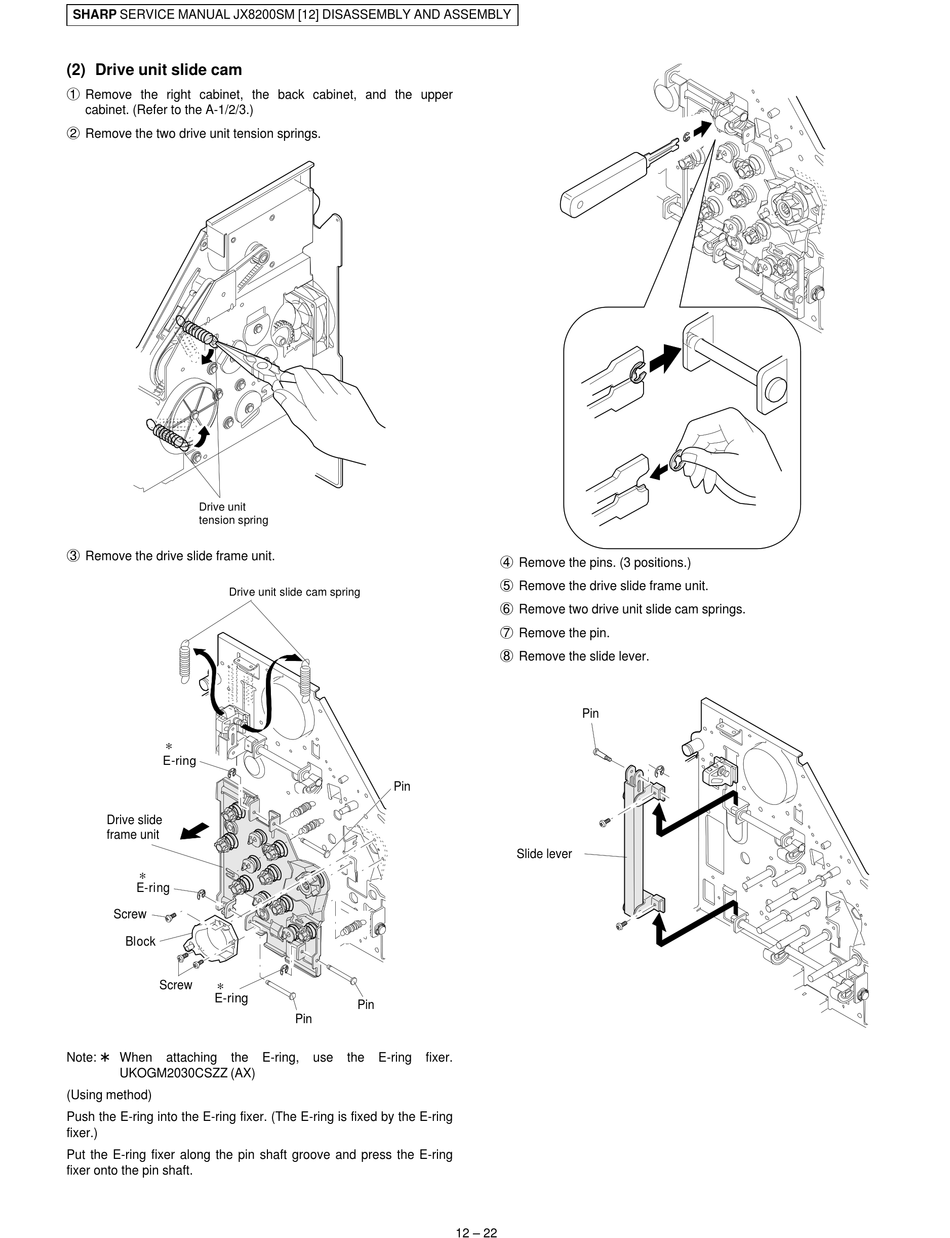

SHARP SERVICE MANUAL JX8200SM [12] DISASSEMBLY AND ASSEMBLY
(2) Drive unit slide cam
1
Remove the right cabinet, the back cabinet, and the upper
cabinet. (Refer to the A-1/2/3.)
2
Remove the two drive unit tension springs.
Drive unit
tension spring
3
Remove the drive slide frame unit.
Drive unit slide cam spring
∗
E-ring
Drive slide
frame unit
∗
E-ring
Screw
Block
∗
Screw
E-ring
Note: * When
attaching
the
UKOGM2030CSZZ (AX)
(Using method)
Push the E-ring into the E-ring fixer. (The E-ring is fixed by the E-ring
fixer.)
Put the E-ring fixer along the pin shaft groove and press the E-ring
fixer onto the pin shaft.
Pin
Pin
Pin
E-ring,
use
the
E-ring
fixer.
4
Remove the pins. (3 positions.)
5
Remove the drive slide frame unit.
6
Remove two drive unit slide cam springs.
7
Remove the pin.
8
Remove the slide lever.
Pin
Slide lever
12 – 22
