H. Replace the faulty part: either the egg wheel with shaft (SPP0011A), the adjusting
plastic bolt (GEN0117A) or the flag (GEN0116A).
I. Return the adjusting bolt onto the shaft remembering to place the metal washer first.
J. Replace the flag to the metal shaft.
K. Replace the drop-off board holder. Perform this in two steps. First insert the holder onto the
metal shaft while making sure the flag is placed correctly between the two parts of the
optical sensor, as illustrated in Fig. 4.1.4.6; then press the holder firmly down until it will
snap onto the plastic bolt.

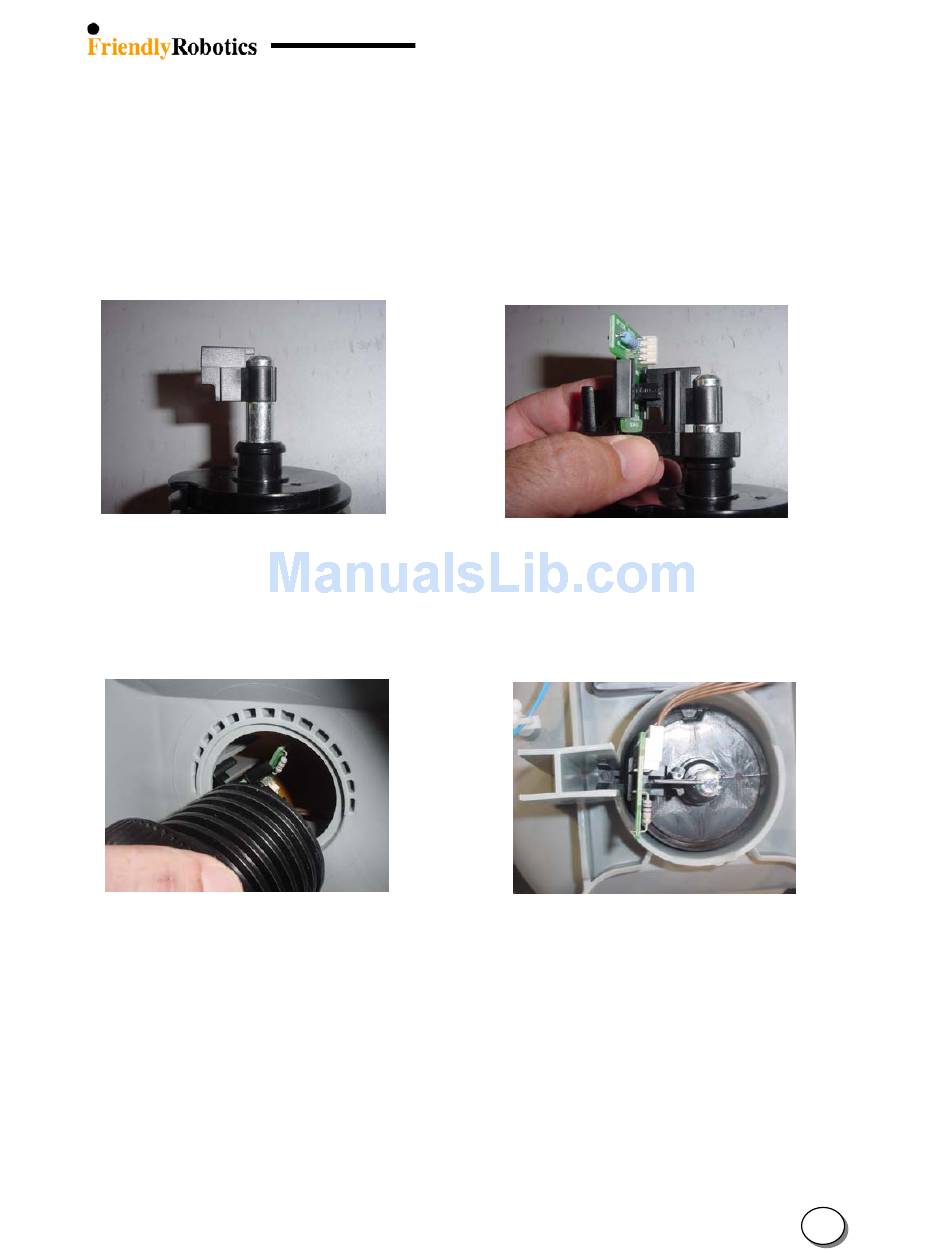

Figure 4.1.4.5
Removal of the flag
L. Insert the front wheel into its hole. Make sure the 'V' shape is inserted into the guide channel
on the right side of the hole, as illustrated in figures 4.1.4.7 and 4.1.4.8 below.
Figure 4.1.4.7
Insertion of the 'V'
M. Use the screwdriver as explained in step 'D' to overcome the blockage of the first thread.
N. Screw the Front Wheel into its place to the proper height position.
O. Turn the Robomow back on its wheels, insert the Power Pack and restart it.
P. Perform the 'Front wheel test' under the 'Safety tests' menu.
Q. Complete the General Test as outlined in section 5.1.
Figure 4.1.4.6
Replacing the drop-off board holder
Figure 4.1.4.8
'V' located in guide channel – top view
